Overland Travel Trailer

The MDCUSA XT17HRT travel trailer is pushing the boundaries with this 17-foot trailer and going one step further than even that with a full-height roof and overhead storage options. The miles of space and features for off-grid living has made this an endlessly popular home away from home.
300W of Solar
Air Conditioning
Internal Ensuite
Internal Kitchen
King Size Bed
3 Berth
$438 per month*
$79,990^
4 Seasons Ready Cold Weather Package

Includes:
Water tank heating pads
LiFePRO+® lithium battery with integrated heating
HWS electric anti-freeze kit
Insulated water lines

DIMENSIONS & WEIGHT

TONGUE WEIGHT

Approx. 507 lbs

GVWR

7716 lbs

CURB WEIGHT

Approx. 6446 lbs

INTERIOR FEATURES

Created with easy clean finishes, comfort is maximized with a 200mm pillow top and genuine *Leatherfoam cushions on the dinette. Completing the off-grid luxury package is a combination shower and toilet ensuite and a large upright fridge freezer. To ensure comfort in all seasons the XT17 windows are thermally efficient acrylic with combination blinds and screens.

EXTERNAL FEATURES

A stainless steel kitchen with a gas cooktop, sink with hot and cold water, and plumbed gas will bring out the gourmet while the large fridge slide beside gives you the option for a second fridge to stay out and about longer. MDC black alloy wheels complete the stylish looks all the way to ground level.

EXPLORE XT17HRT

Please Note: Above 3D/2D Floorplan is a representative pictorial of floorplan/layout only, please refer to actual product photos for design features and benefits.

SPECIFICATIONS

GENERAL

♦ Sleeps 3
♦ 1x Custom pillow-top Olympic Queen innerspring mattress & Convertable dinette
♦ Mattress – 78½” L x 67″ W x 8″ H
♦ Combination of welded aluminum 2″ x 1″ and 3″ x 1″ Hot Roll Steel Rectangle Tube and 1″ X 1″ square aluminum alloy Body Construction

DIMENSIONS – with Aircon

♦ Open – 25’2″ L x 18′ W x 10′ H
♦ Closed – 23’5″ L x 7’10½” W x 10′ H

WEIGHTS & RATINGS

♦ Dry weight 6446 lbs
♦ Tongue weight 507 lbs
♦ GVWR 7716 lbs

CHASSIS

♦ 6″ x 2″- Q345 Galvanized Steel Hot Rolled Rectangle Tube Frame
♦ Cruisemaster™ DO35 hitch
♦ 10″ swing-up and lockable Jockey Wheel

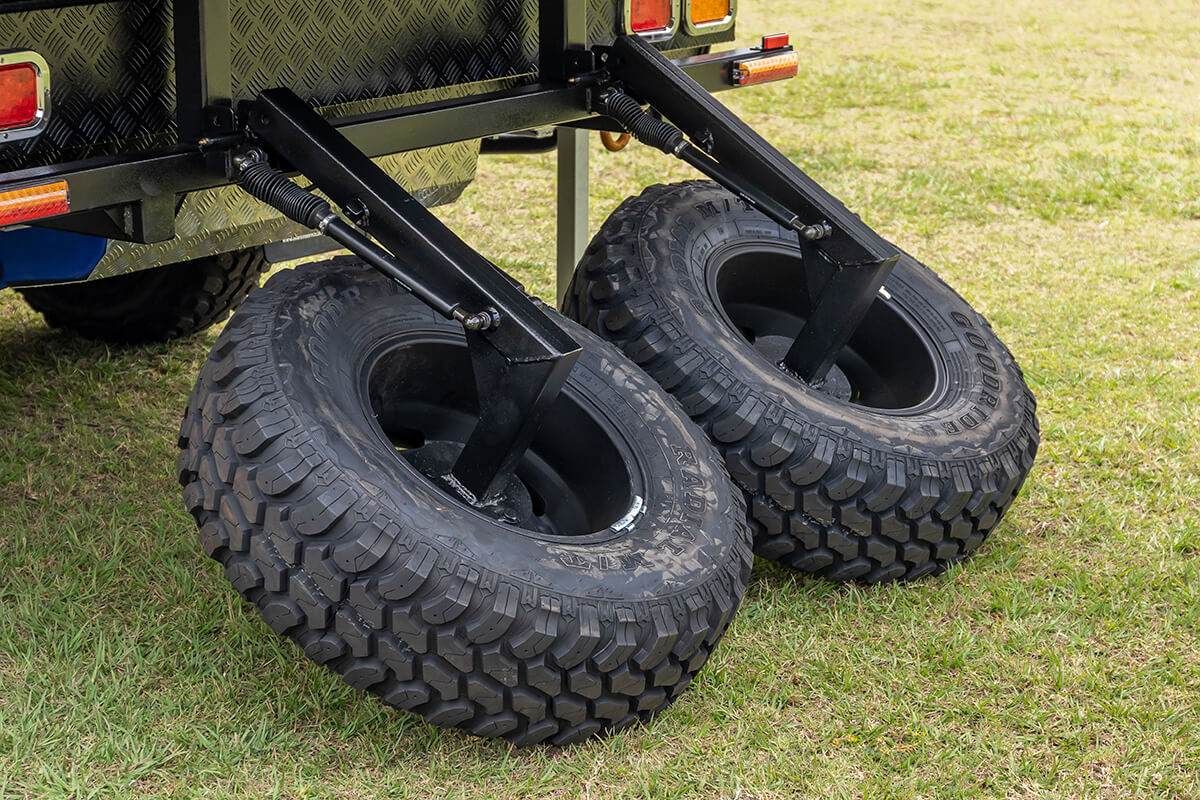

♦ 16×7.5 6/139.7 Aluminum alloy wheels fitted with 265/75R16 Goodride MT tires + 2 spares
♦ X-TRACK Independent coil spring suspension with 2x TOUGH TRAX Shock absorbers on each side
♦ 12″ electromagnetic brakes with handbrake and drawbar mounted emergency breakaway system
♦ 4 x heavy-duty lockable and adjustable drop-down stabilizer legs

EXTERIOR

♦ 13.8’ manual fold-out awning
♦ 2x 20lbs propane cylinder and cylinder holders
♦ 2x 5 gallon jerry can holders
♦ 2 x 21 gal freshwater tank & 1x 21 gal gray water tank
♦ Water delivery – 12V electric marine diaphragm pump
♦ 4 Seasons Ready Cold Weather Package includes tank heating pads, HWS electric anti-freeze kit, LiFePRO+® integrated heating and insulated water lines
♦ External Slide out stainless Steel body with propane cooktop & washboard sink with plumbed hot & cold water supply
♦ Checker plate stone guard & propane storage locker with forward-facing and rear mud flap protection
♦ Fridge Slide – 31¾” L x 20″ W x 23″ H
♦ Integrated front toolbox
♦ Manually operated pull-down entry step

INTERIOR

♦ Internal Laminated benchtops with glass lid propane stove/convection oven combo, plumbed washboard glass lid sink, and internal refrigerator
♦ Thetford C400 Cassette toilet
♦ Hot & cold plumbed wet bath

MAJOR APPLIANCES

♦ Dometic Penguin II High-Efficiency Low Profile Rooftop Air Conditioner
♦ Truma Aquago Comfort Plus instant hot water system (propane-operated)
♦ Dometic DFSD 12111 Furnace (propane operated)
♦ FURRION 0.9 cu.ft. 900W Microwave

ELECTRICAL

♦ 2 x 150W solar panels
♦ 2 x 100Ah Lithium Iron Phosphate batteries
♦ BMPRO Battery Plus35-11-HA Battery Management System with RVVIEW2 battery monitor and BC300 external shunt
♦ AIMS Power 1500W Pure Sine Wave Inverter
♦ Internal 12V LED lighting throughout
♦ External 12V LED lighting throughout, position markers, indicator & stop/tail lights + awning and offside wall lighting with blue light up entry door grab handle
♦ Light Connection Plug – 7-way trailer connector (SAE J2863 type)
♦ Stereo head unit with internal & external speakers
♦ 24” LED TV

INTERNAL POWER OUTLETS

♦ 3 x 12V accessory sockets
♦ 5 x 5V dual USB charging port (1A & 2A split)
♦ 1 x F-type TV outlet
♦ 2 x Double 110V outlets

EXTERNAL POWER OUTLETS

♦ 1 x Anderson plugs
♦ 3 x 12V accessory sockets
♦ 1 x Double 110V outlets

FEATURES & INCLUSIONS
