Affordable Family Travel Trailer

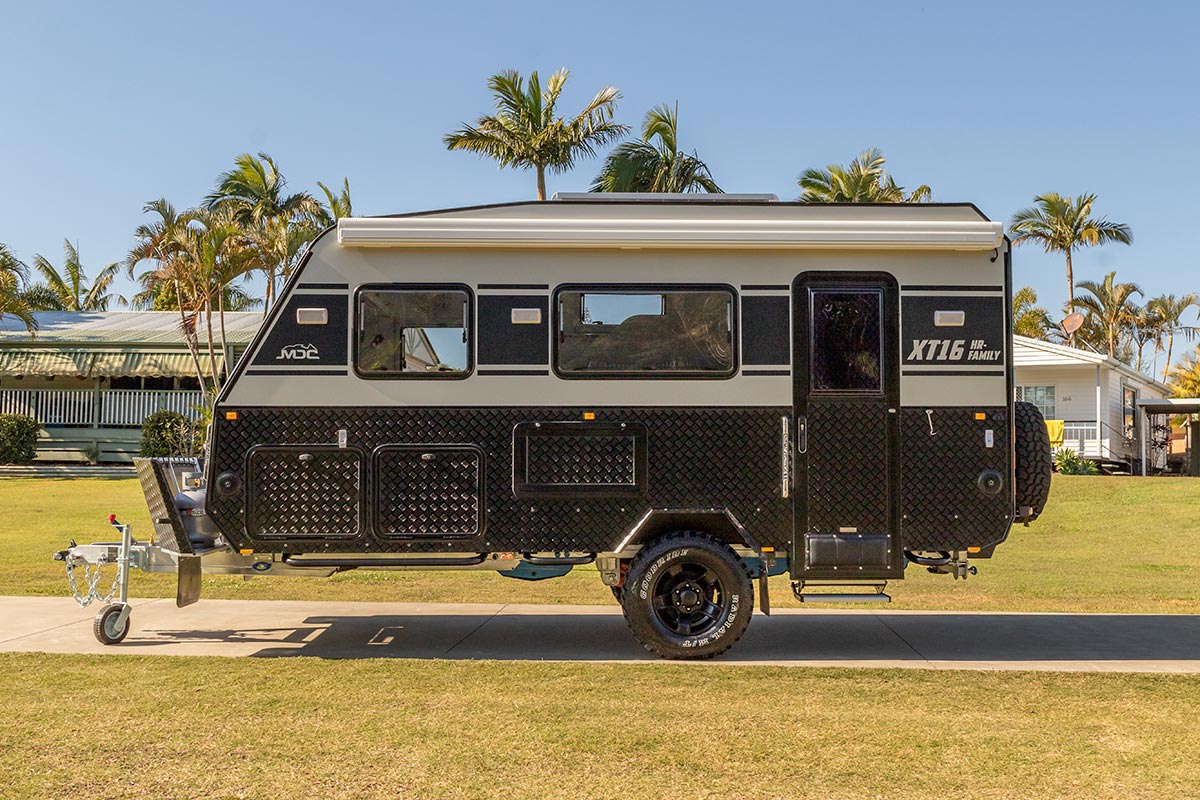

Introducing the all-new MDC XT-16HR Family caravan which combines all that is great about our hugely popular XT17-HRT and goes one step further with a full-height roof and overhead storage options. With a capacity for 2 Adults and 3 kids the XT16HR- Family offers everything the offroad adventurer wants and more! Want to know more? Simply give us a call at 833-632-8721 or fill in the below inquiry form and a member of our team will get back in touch with you as soon as possible.
300W of Solar
Air Conditioning
Internal Ensuite
External Kitchen
King Size Bed
5 Berth
$452/month*

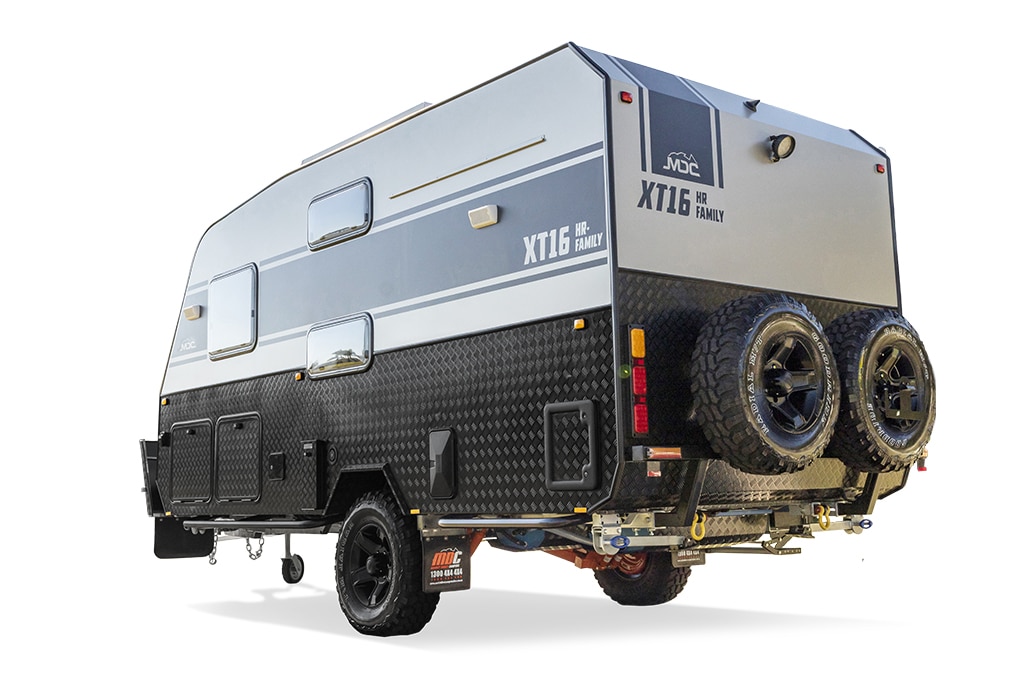

MDC USA XT16HR Family Travel Trailer
$69,990.00^

Cold Weather Package

Includes:
Water tank heating pads
LiFePRO+® lithium battery with integrated heating
HWS electric anti-freeze kit
Insulated water lines

DIMENSIONS & WEIGHT

TONGUE WEIGHT

Approx. 450 lb

GVWR

6173 lb

CURB WEIGHT

Approx. 5147 lb

MDC USA XT16HR Family overlanding caravan dimensions

INTERIOR FEATURES

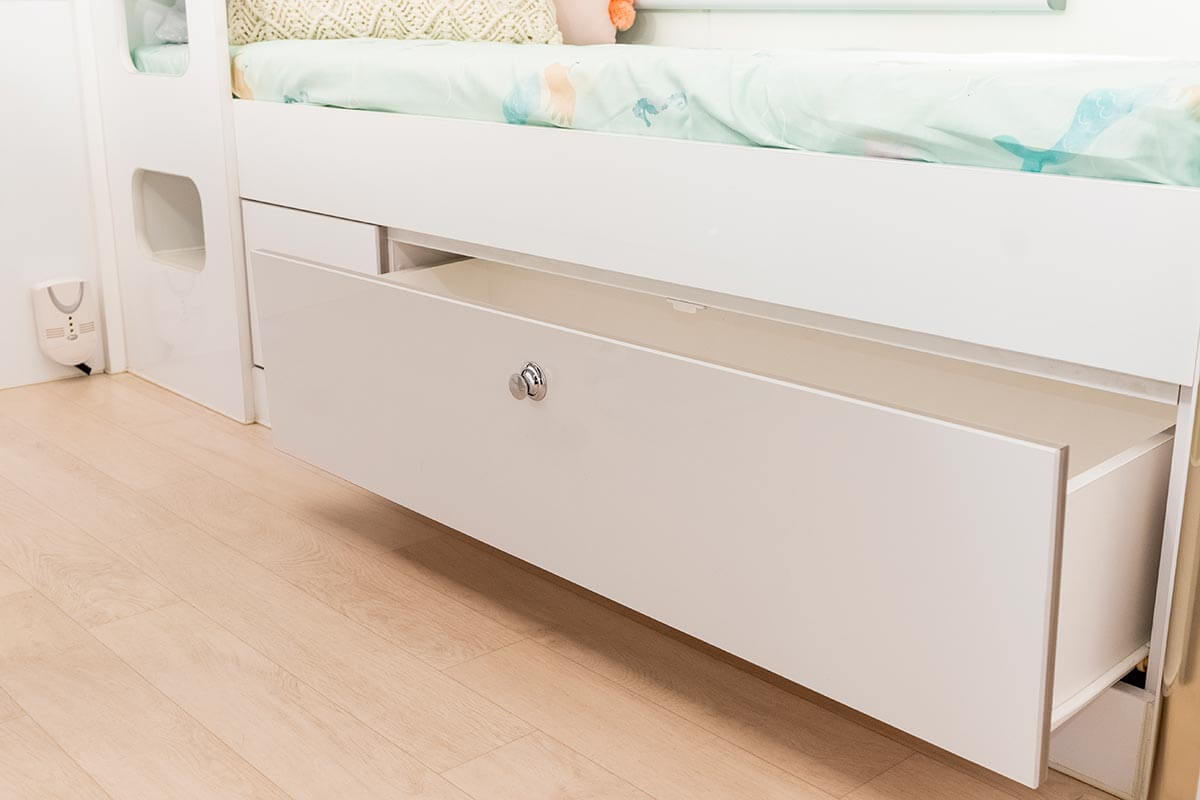

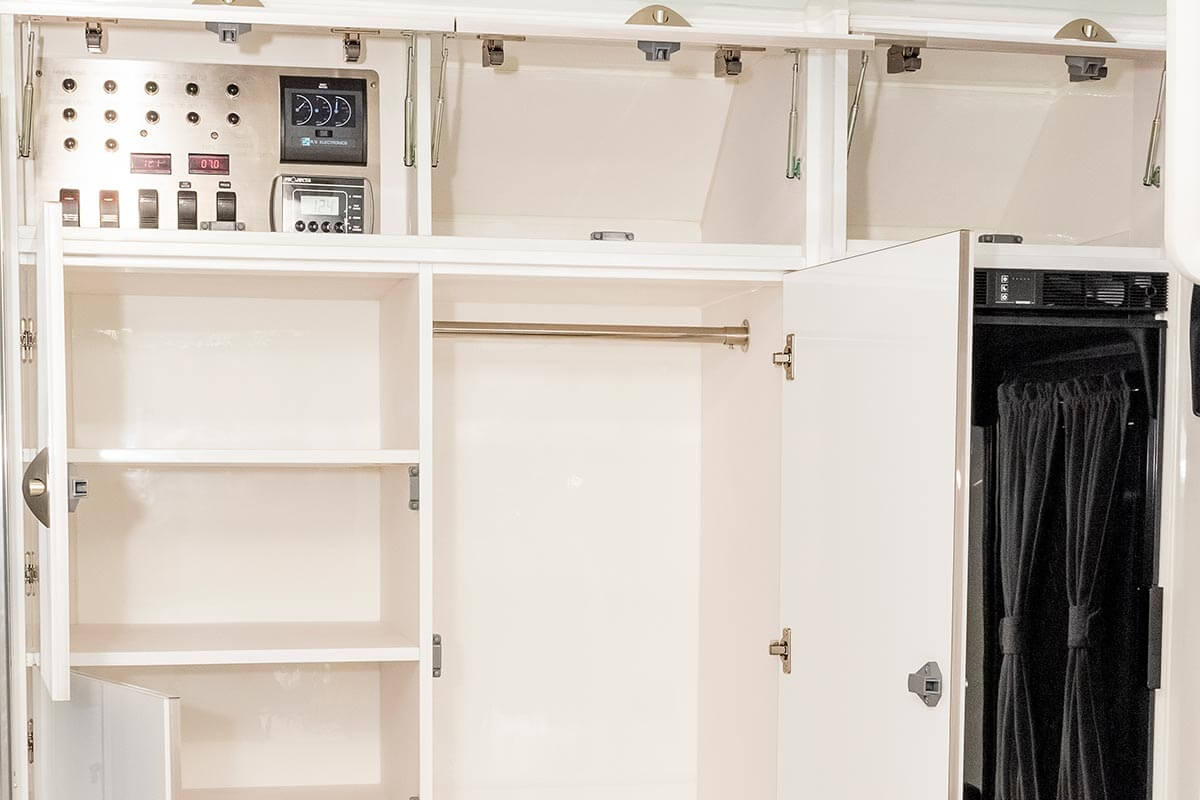

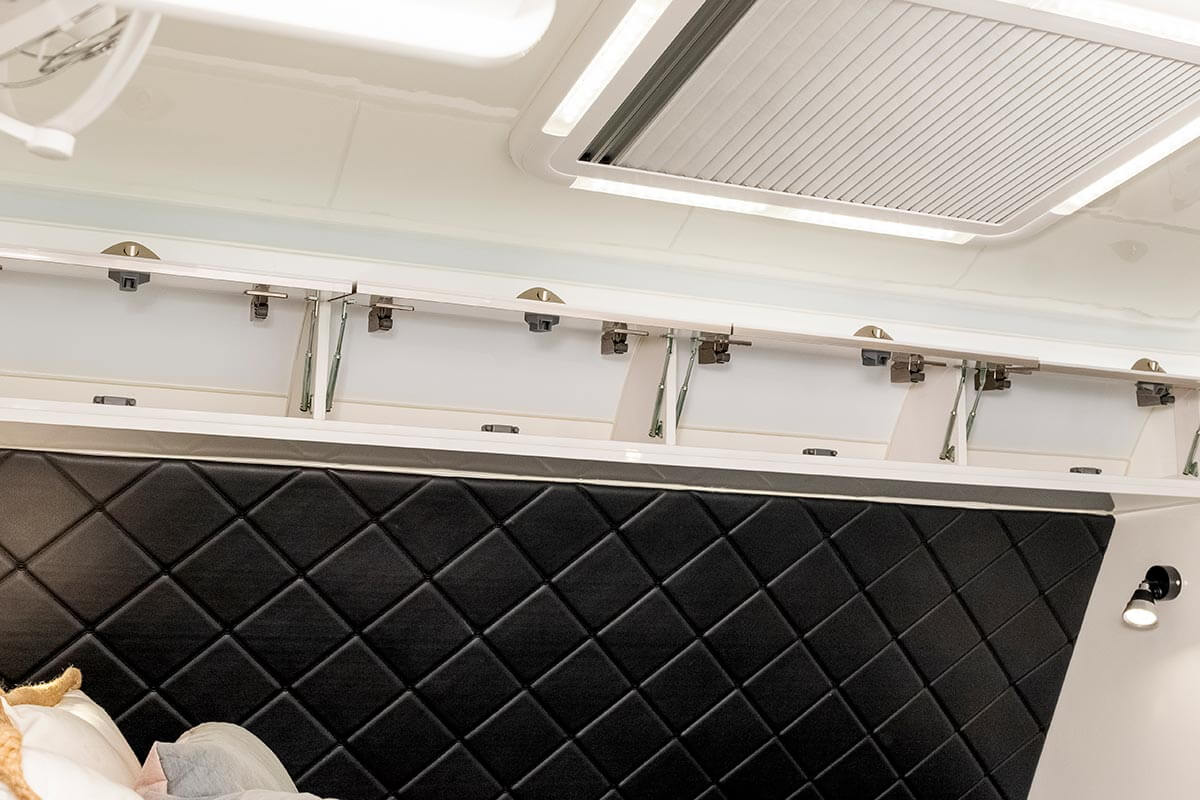

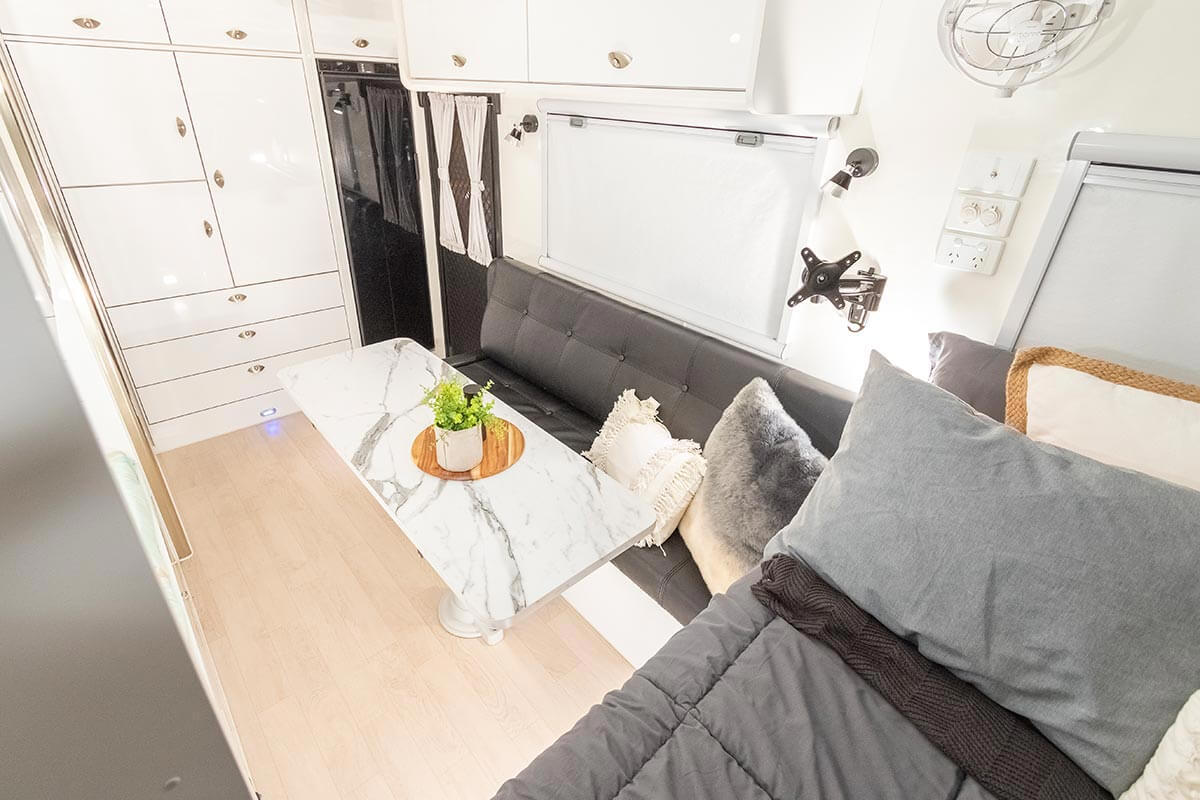

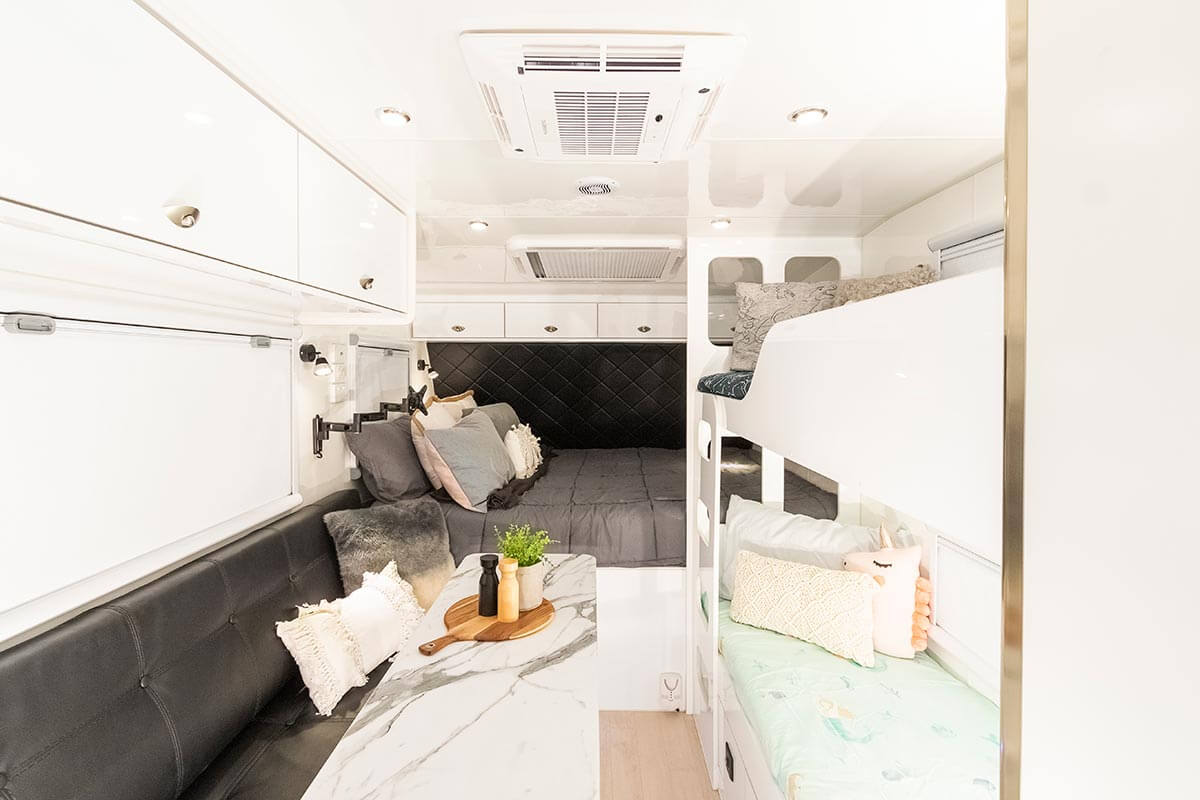

The clever interior layout is backed up by high-quality durable finishes to last you a lifetime. Stylish yet easy to clean, the cabinetry is built strong to endure the test of time and harsh conditions using quality hardware and materials that won’t let you down.

EXTERNAL FEATURES

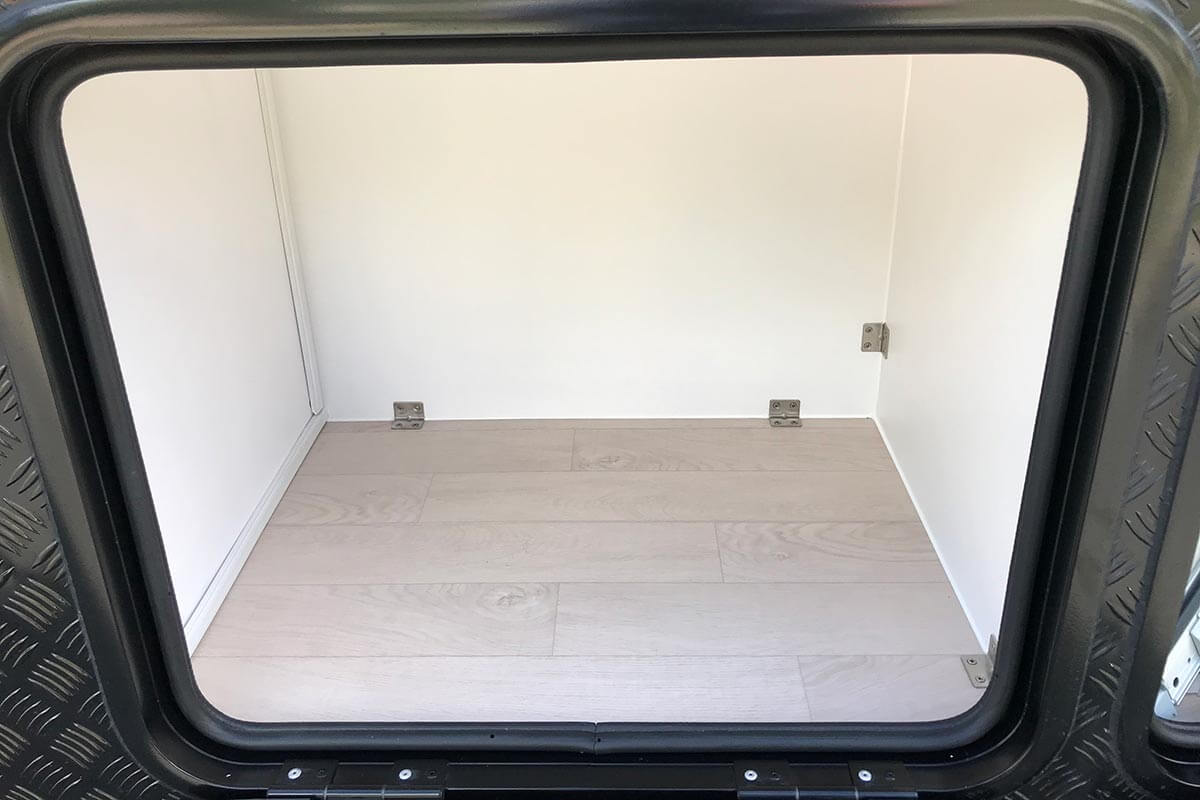

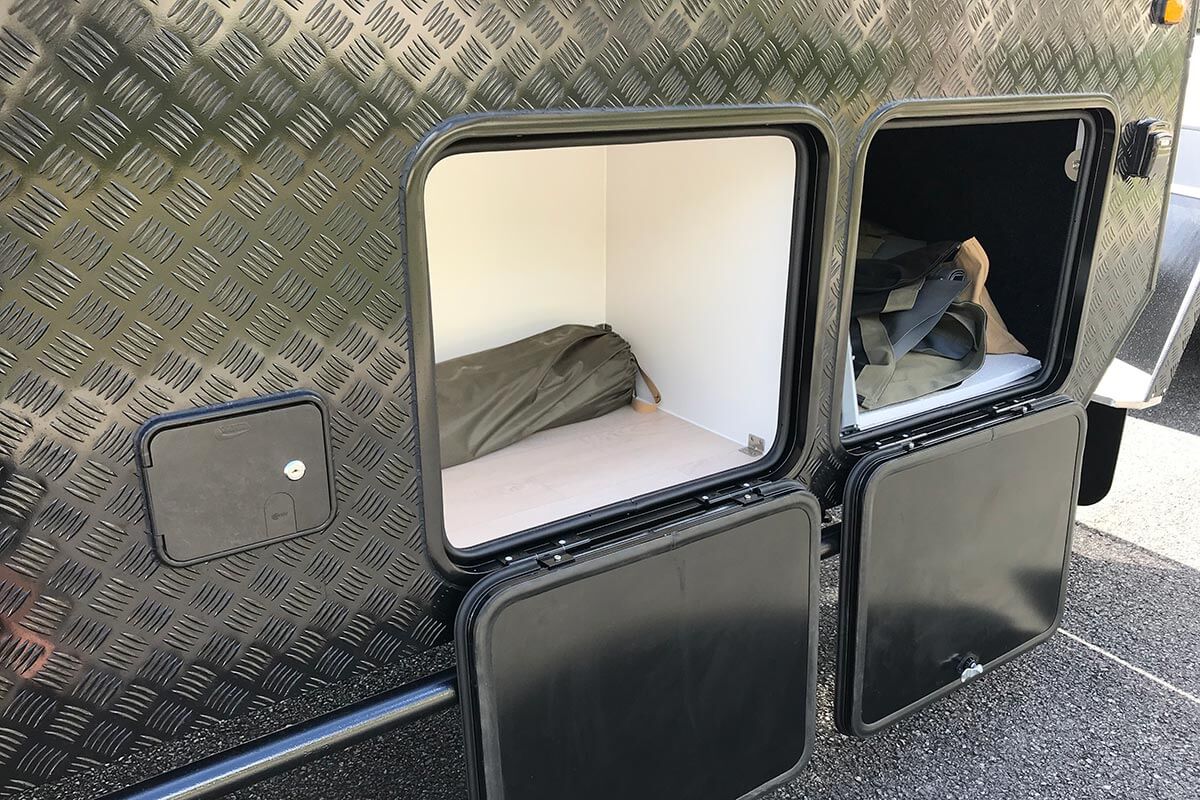

Wrapped in an array of external features designed to make camping more comfortable. A large external fridge slide, gourmet outdoor kitchen with fold down table and electric awning make for comfy outdoor living. Ample front boot and side storage ensure you can take all the necessities for camping comfort while external lighting makes it a night and day activity.

EXPLORE XT16HR FAMILY

Please Note: Above 3D/2D Floorplan is a representative pictorial of floorplan/layout only, please refer to actual product photos for design features and benefits.

SPECIFICATIONS

GENERAL

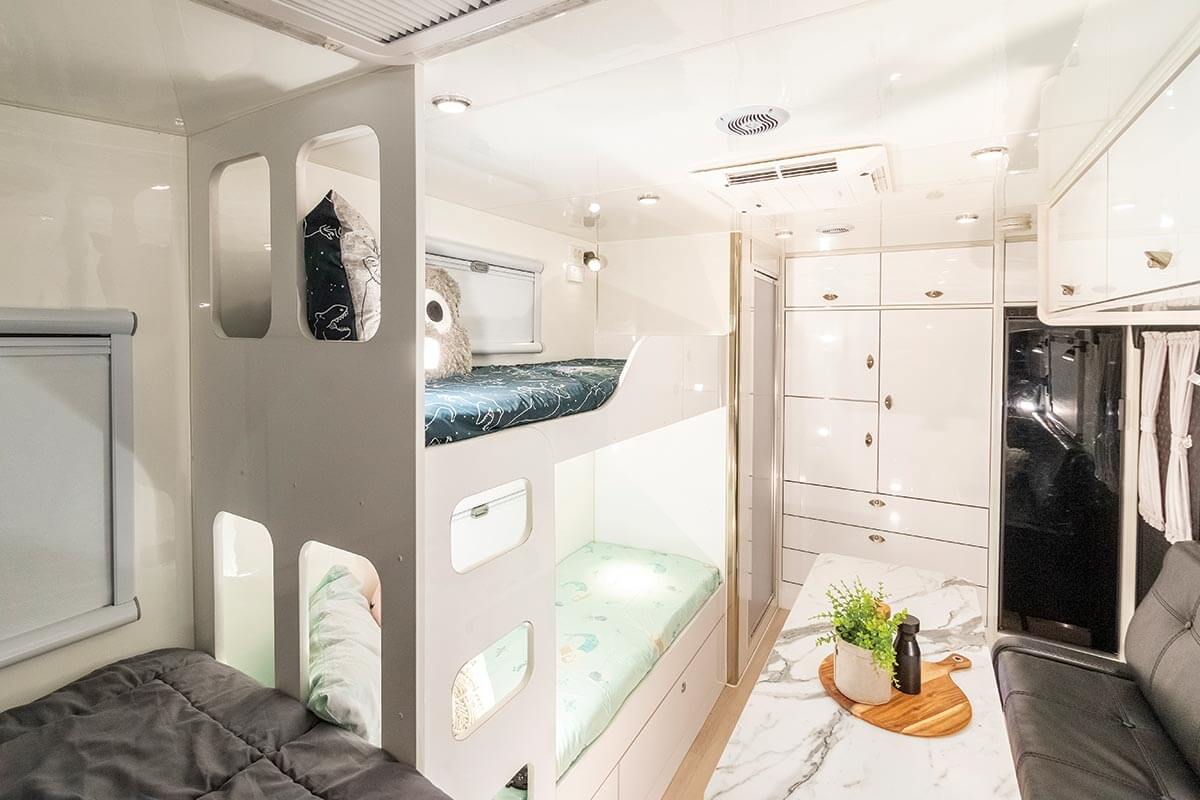

♦ Sleeps 5
♦ 1x Custom pillow-top Olympic Queen size innerspring mattress
♦ 2x Single high-density foam bunks
♦ Mattress – 83” L x 62” W x 9” H
♦ Mattress (Bunk) – 68” L x 25” W x 5” H
♦ Combination of welded aluminum 2″ x 1″ Hot Roll Steel Rectangle Tube and 1″ X 1″ square aluminum alloy Body Construction

DIMENSIONS – with Aircon

♦ Open – 21’6″ L x 14’3″ W x 10′ H
♦ Closed – 21’6″ L x 7’8″ W x 10′ H

WEIGHTS & RATINGS

♦ Dry weight 5174 lbs
♦ Tongue weight 450 lbs
♦ GVWR 6147 lbs

CHASSIS

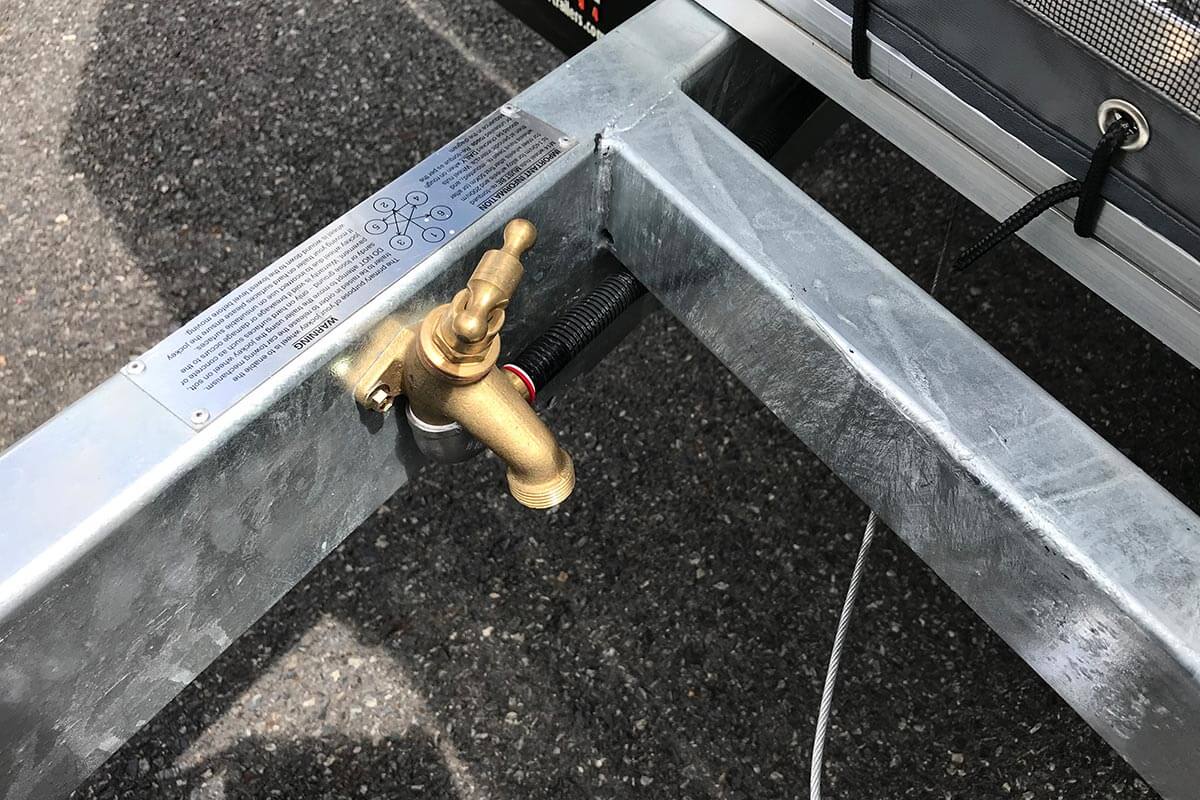

♦ 5″ x 2″ – Q345 Galvanized Steel Hot Rolled Rectangle Tube Frame

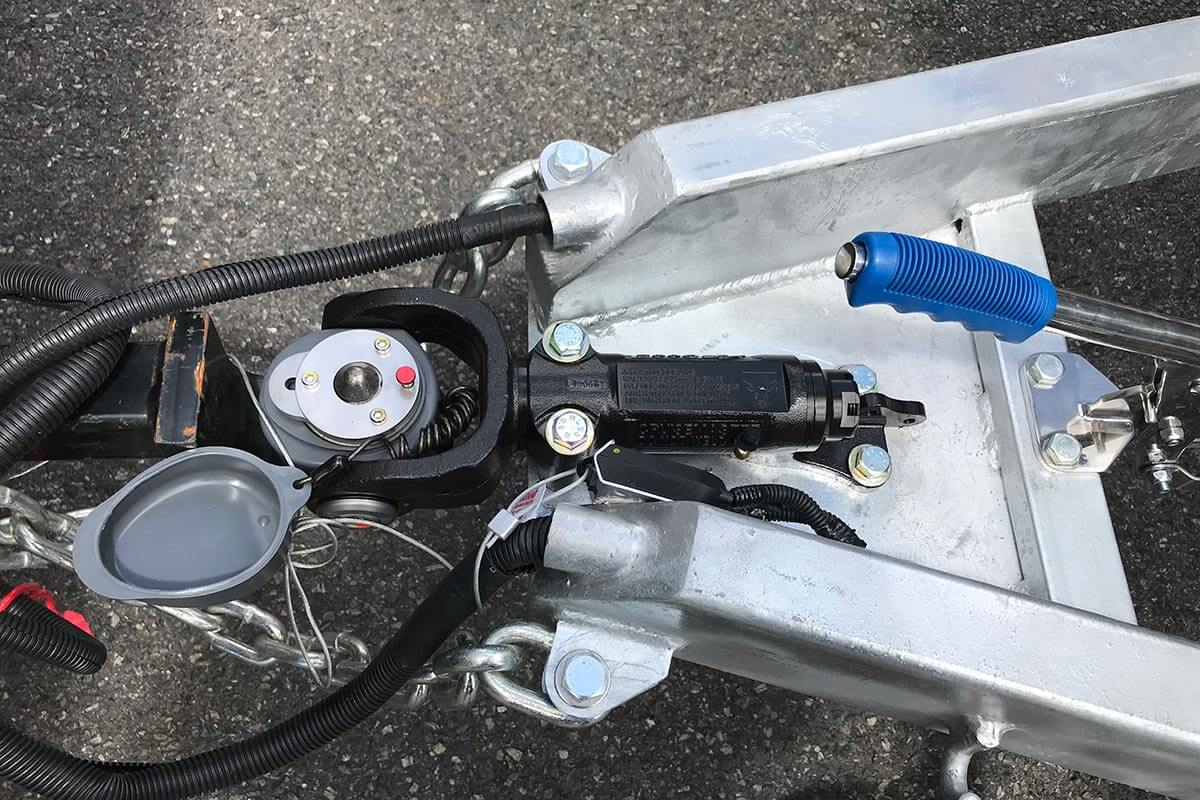

♦ Cruisemaster™ DO35 hitch
♦ 10″ swing-up and lockable Jockey Wheel

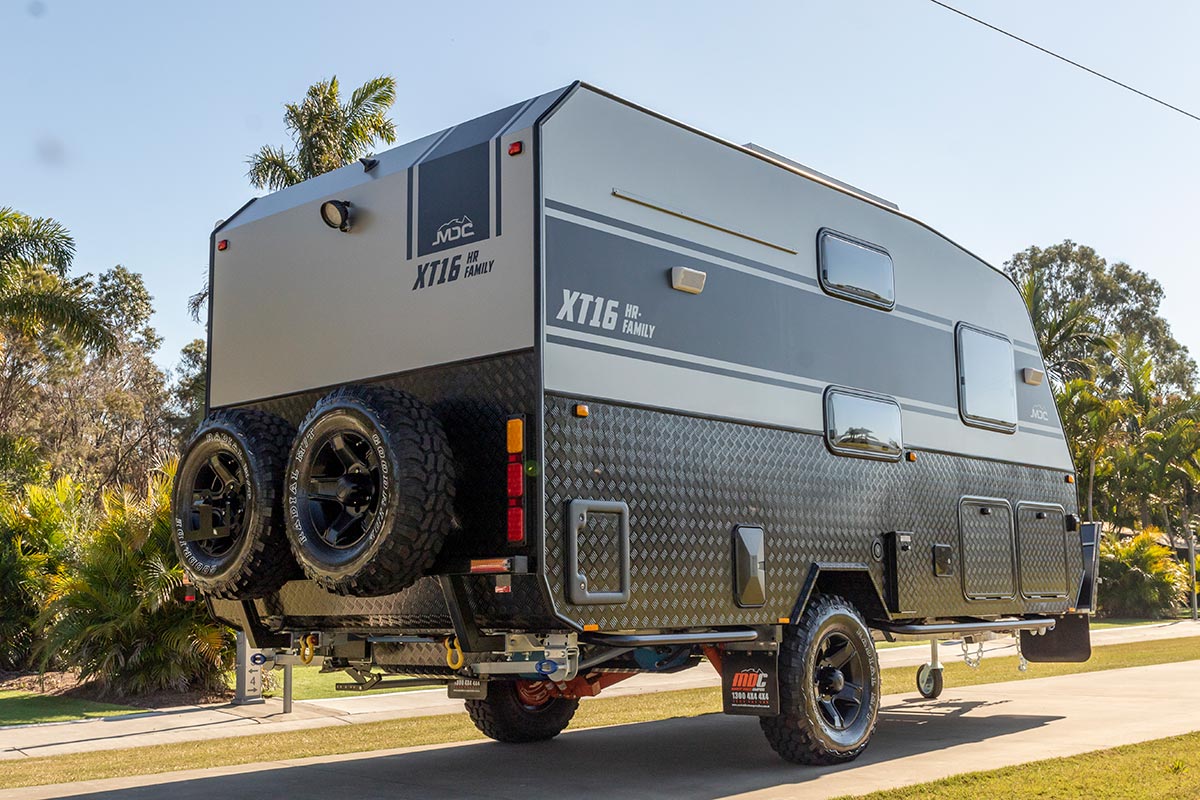

♦ 16×7.5 6/139.7 Aluminum alloy wheels fitted with 265/75R16 Goodride MT tires + 2 spares

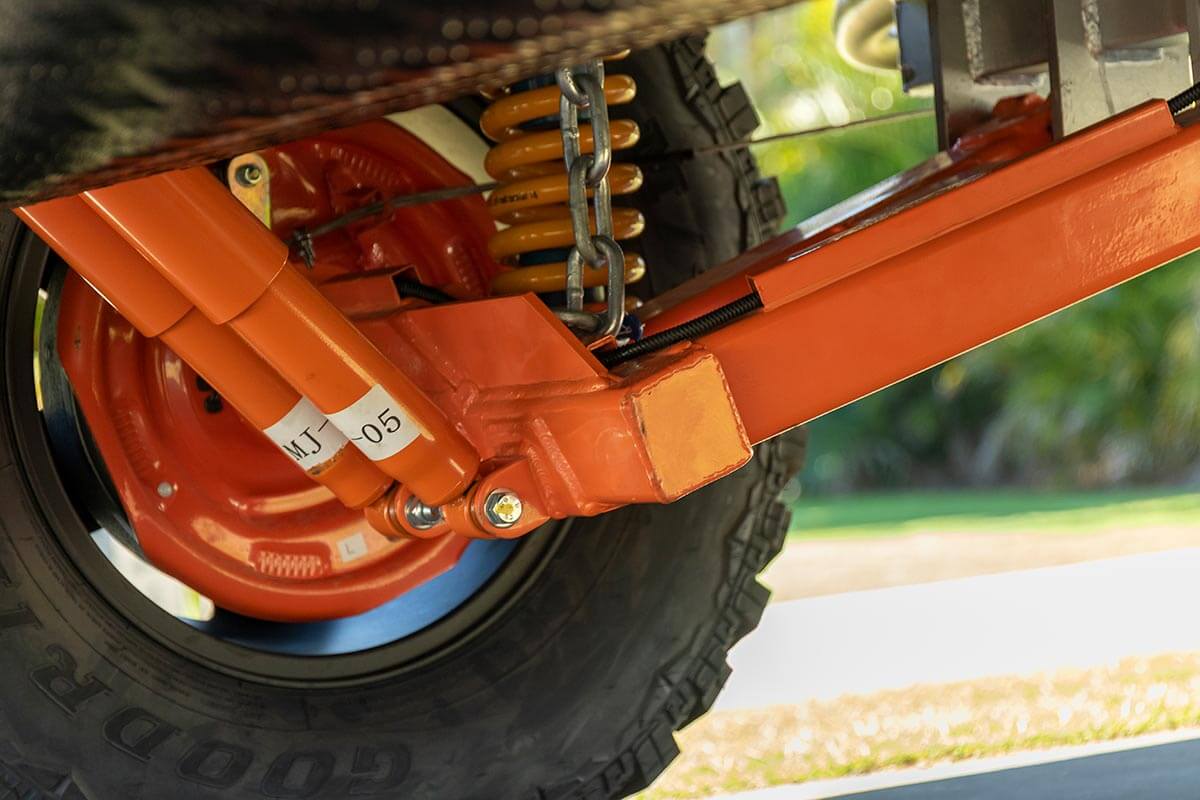

♦ X-TRACK Independent coil spring suspension with 2x TOUGH TRAX Shock absorbers on each side
♦ 12″ electromagnetic brakes with handbrake and drawbar mounted emergency breakaway system
♦ 4 x heavy-duty lockable and adjustable drop-down stabilizer legs

EXTERIOR

♦ 13.8′ 12V electric cassette awning

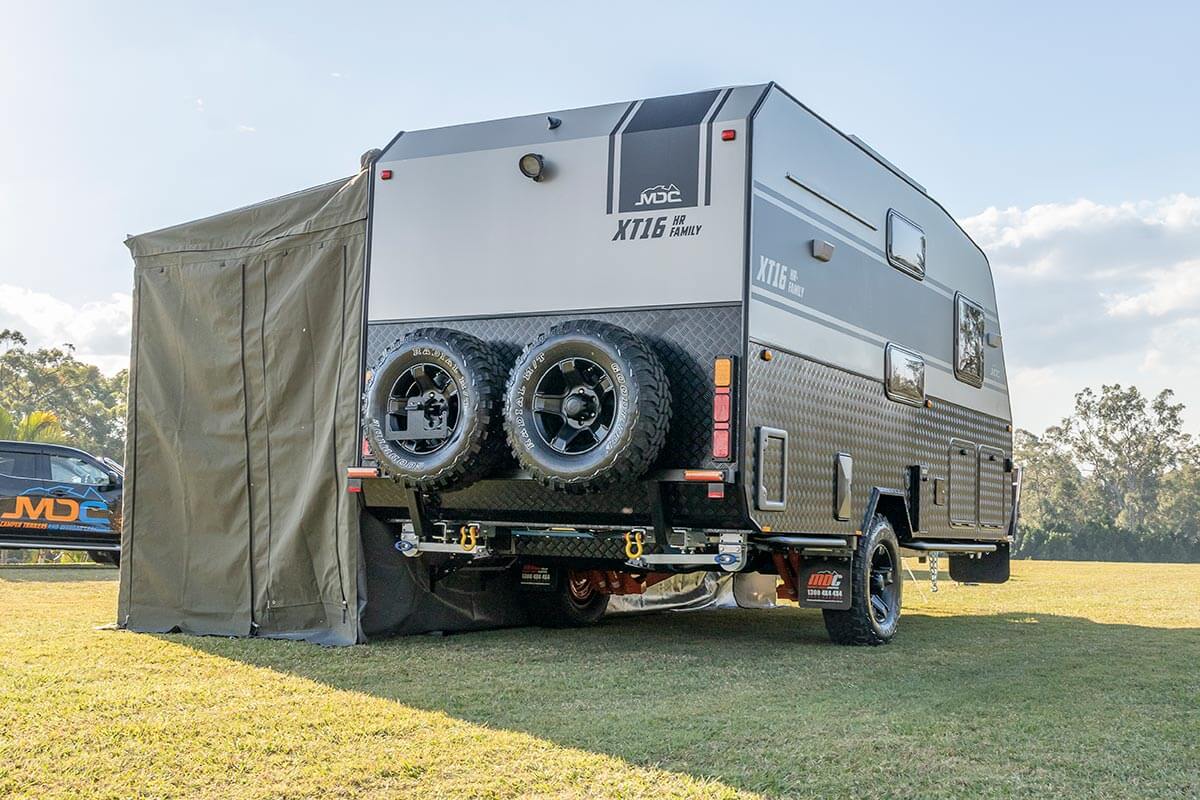

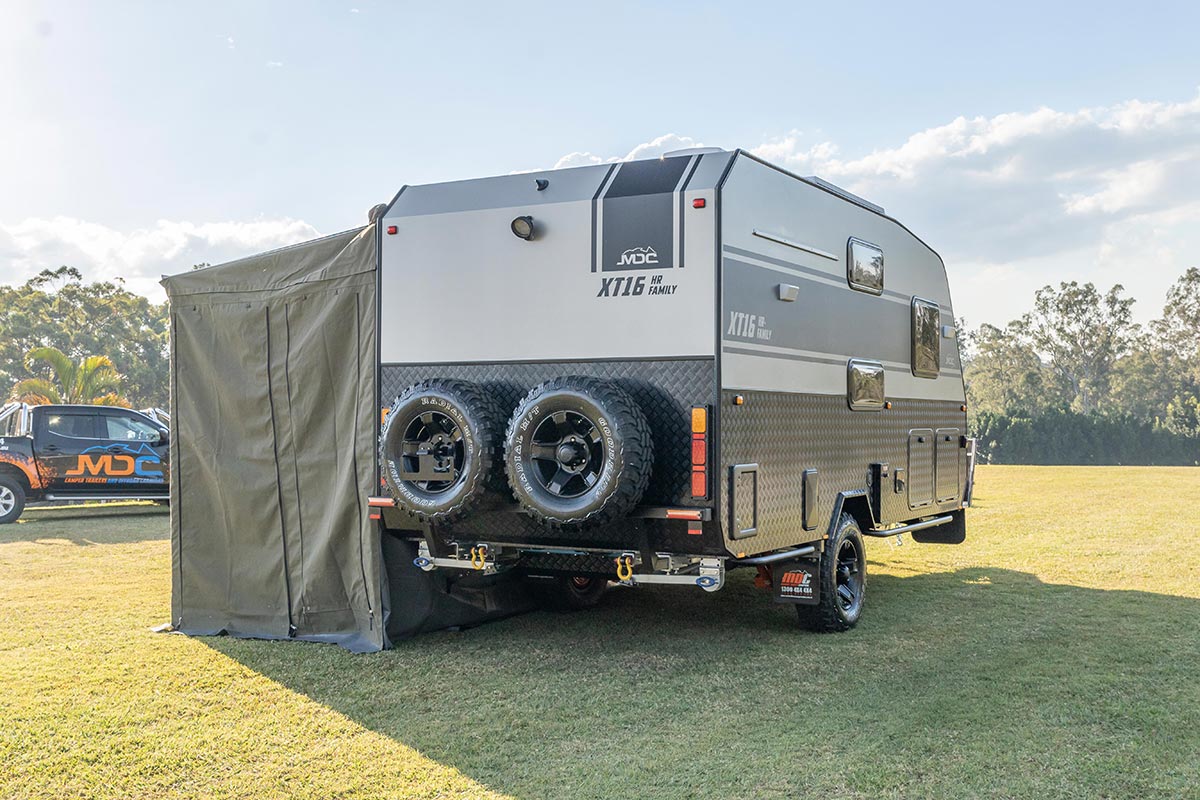

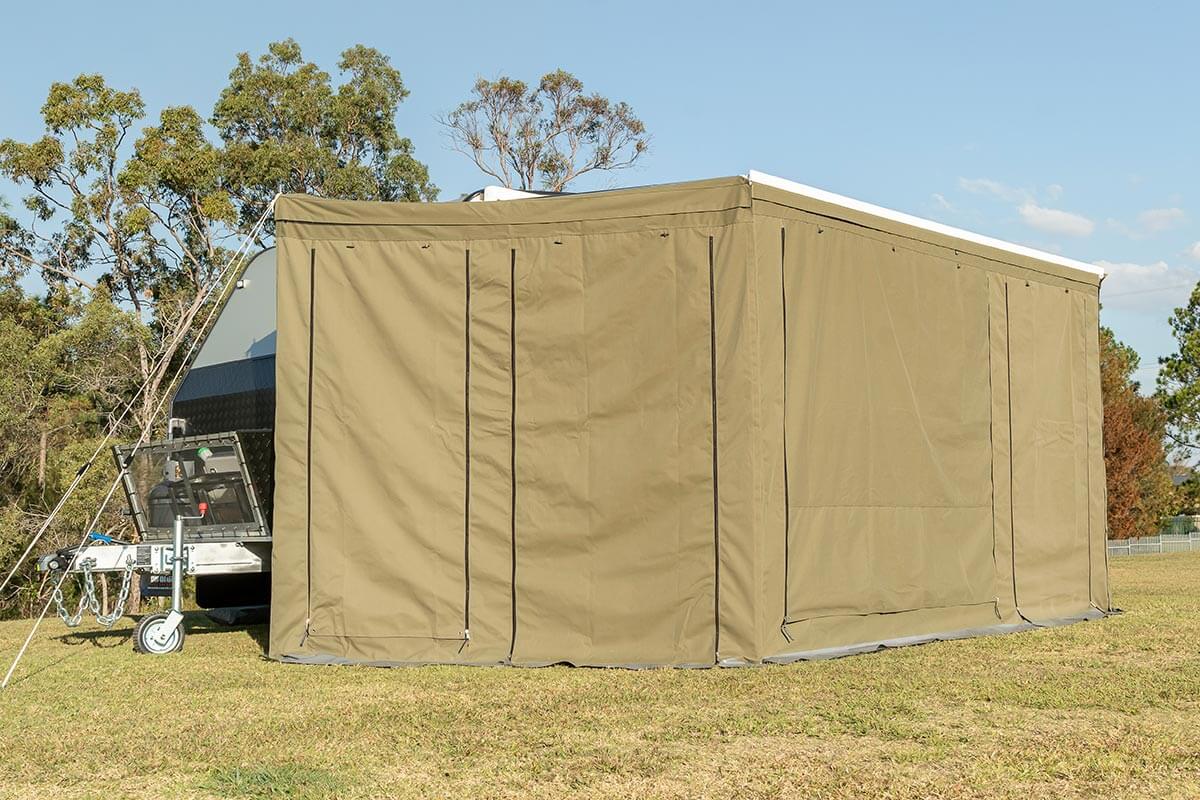

♦ Full annex, enclosed roof, walls, floor, and draft skirt

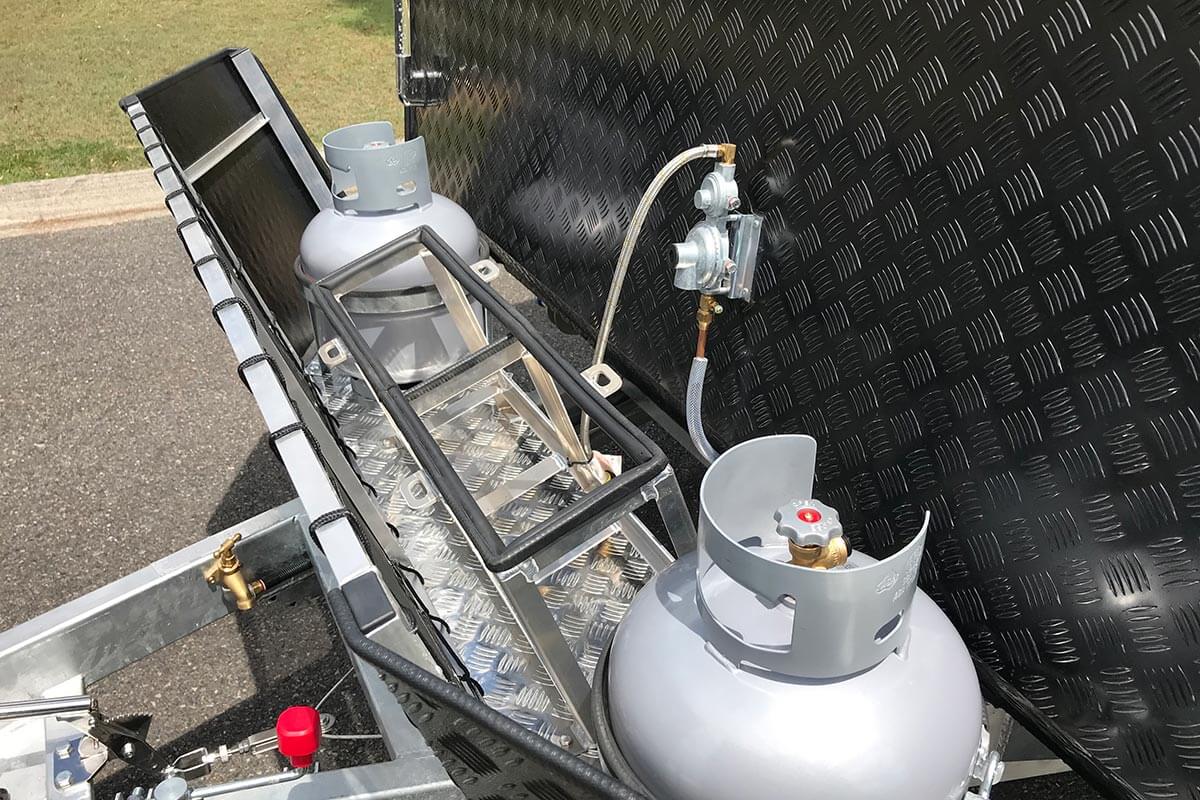

♦ 2x 20lbs propane cylinder and cylinder holders
♦ 2x 5 gallon jerry can holders

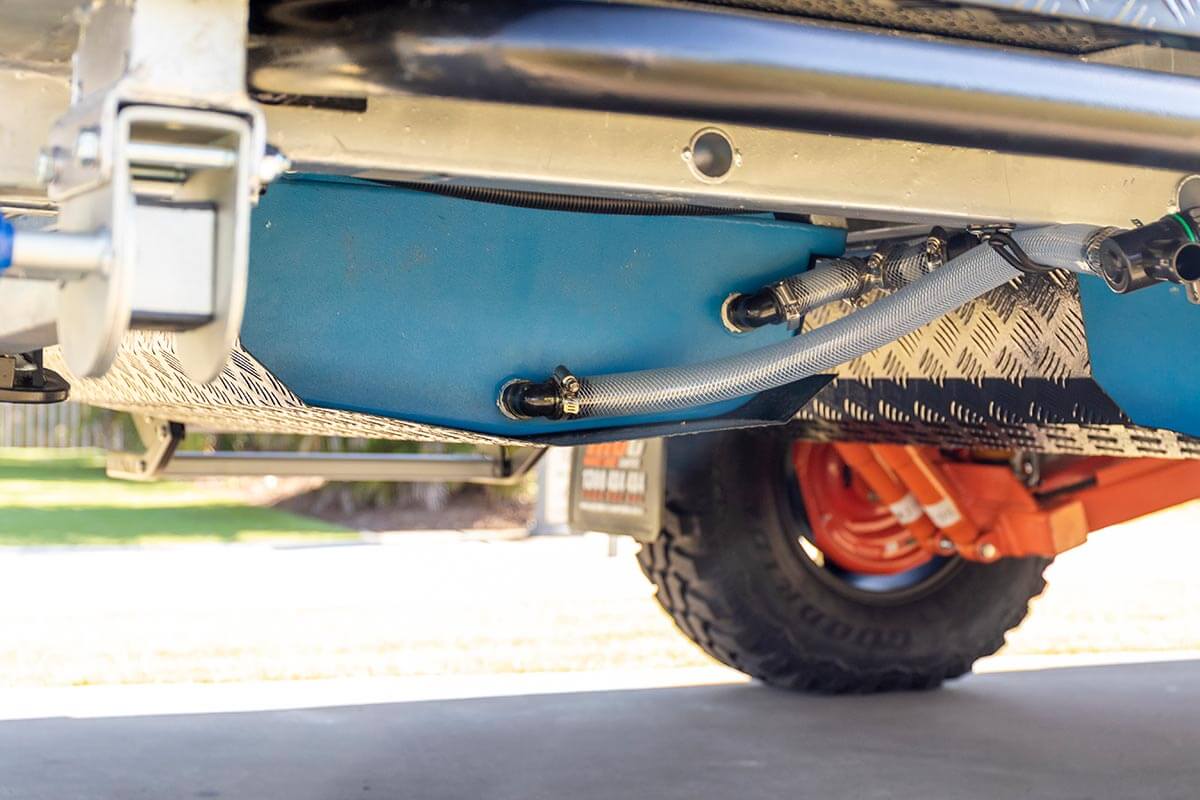

♦ 2x 21 gallon fresh water tanks + 1x 21 gallon grey water tank
♦ Water delivery – 12V electric marine diaphragm pump
♦ 4 Seasons Ready Cold Weather Package includes tank heating pads, HWS electric anti-freeze kit, LiFePRO+® integrated heating and insulated water lines

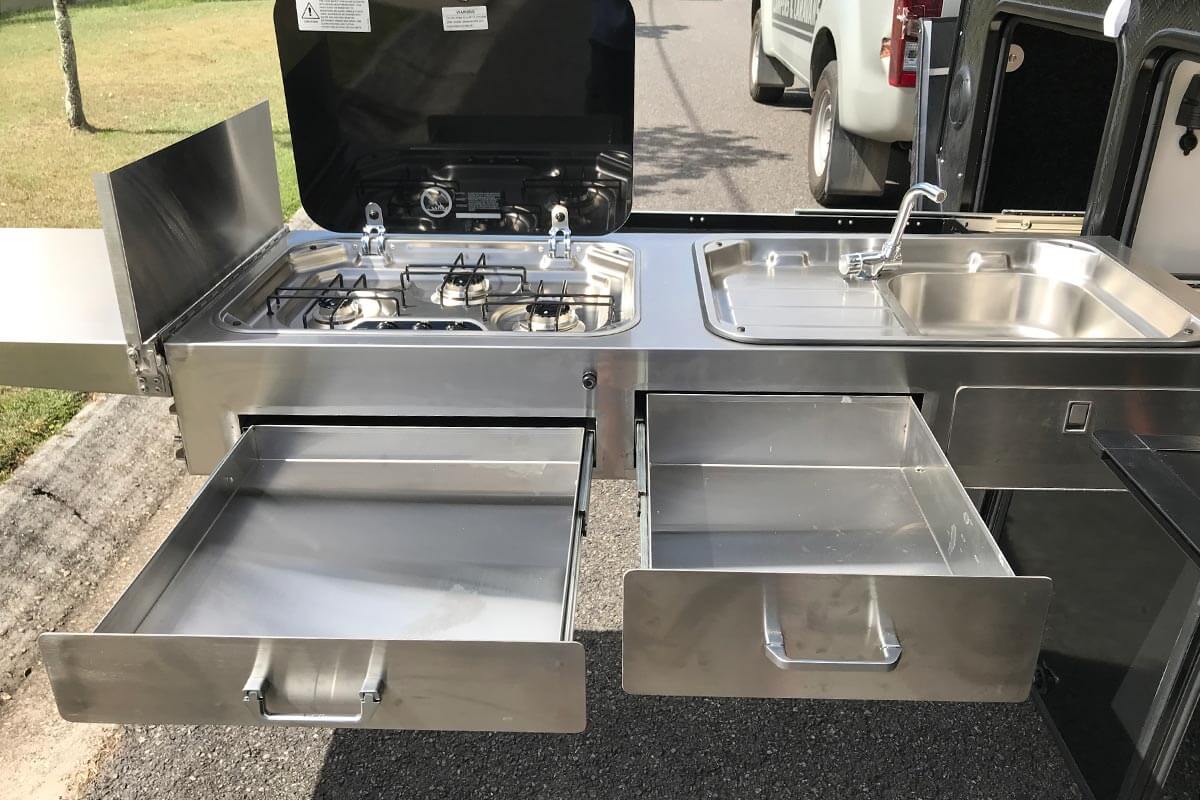

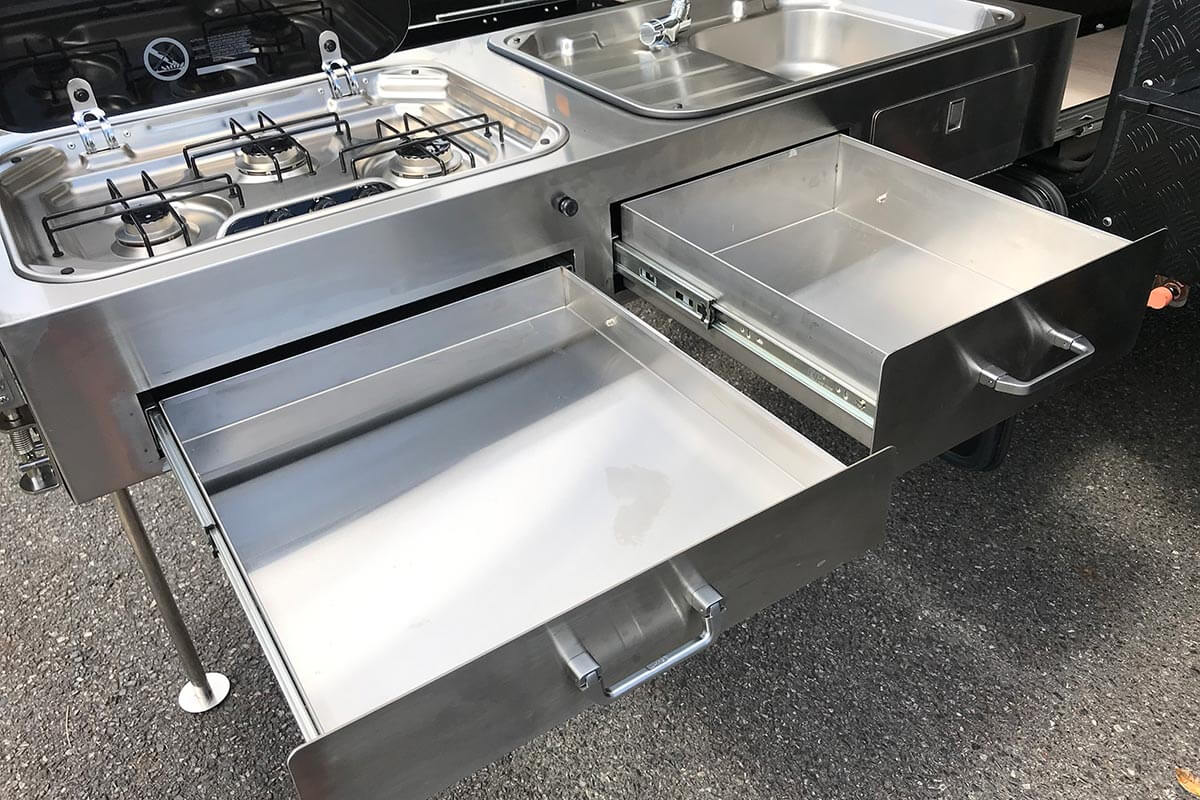

♦ External Slide out stainless Steel body with propane cooktop & washboard sink with plumbed hot & cold water supply
♦ Chequer plate stone guard with forward-facing and rear wheel mud flap protection
♦ Fridge Slide – 42¾” L x 21½” W x 18½” H
♦ Integrated front toolbox

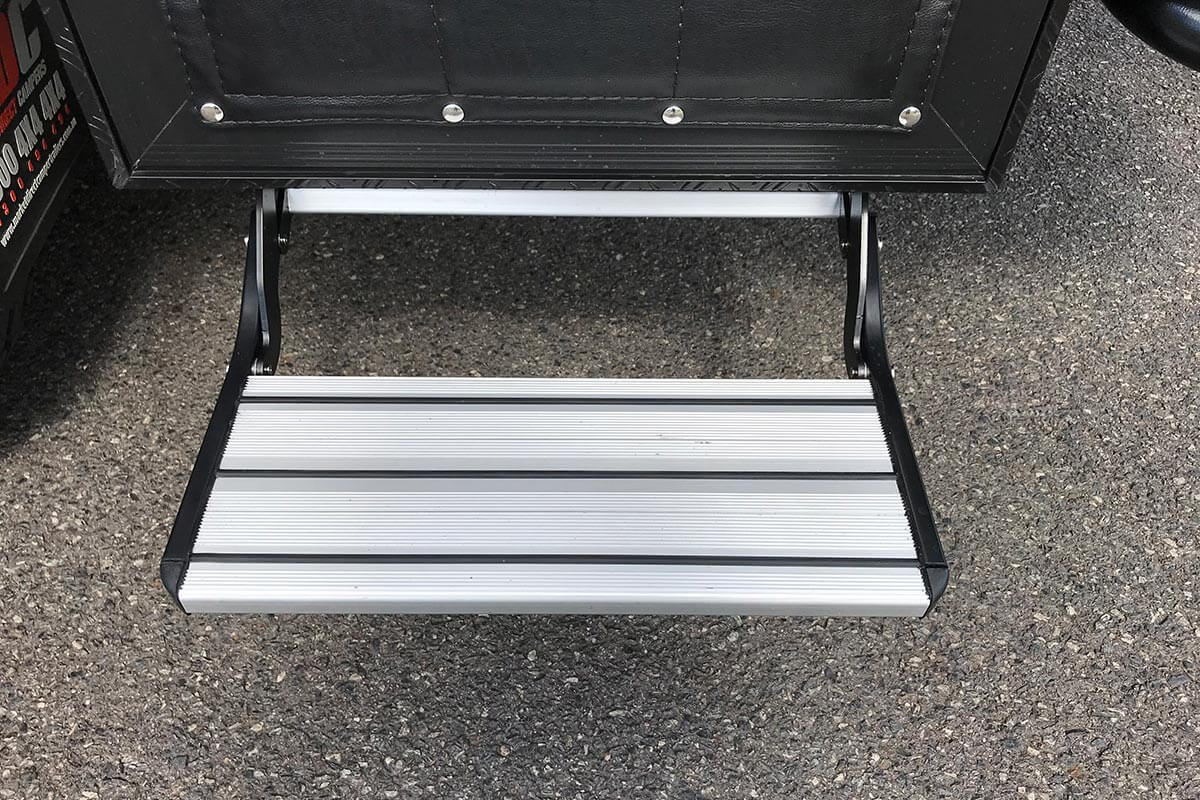

♦ Manually operated pull-down entry step

INTERIOR

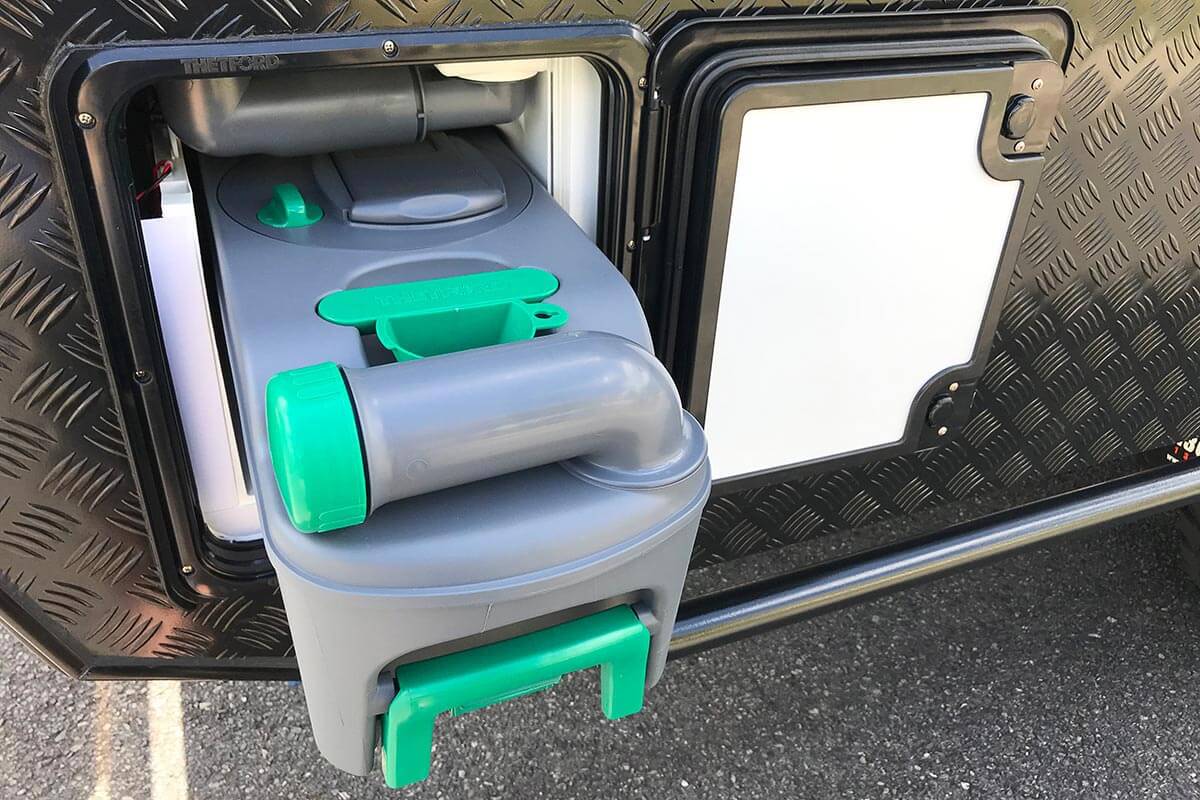

♦ Thetford C400 Cassette toilet

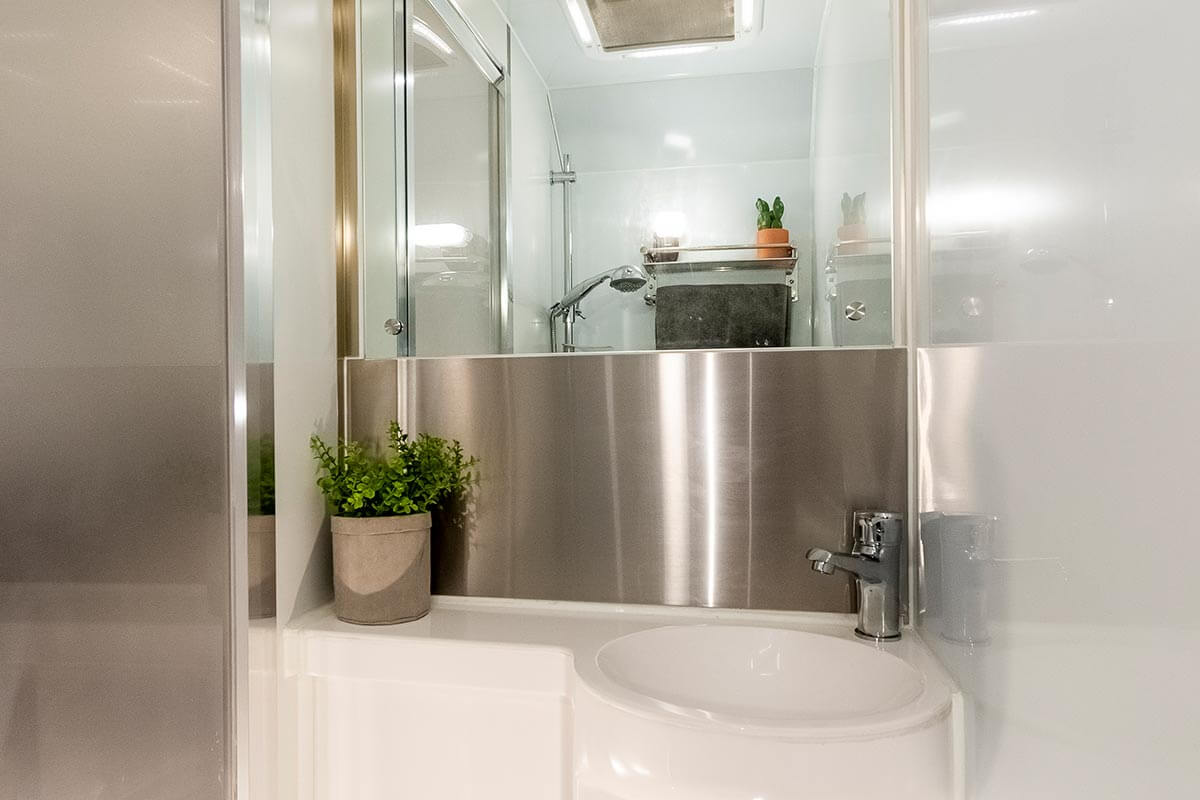

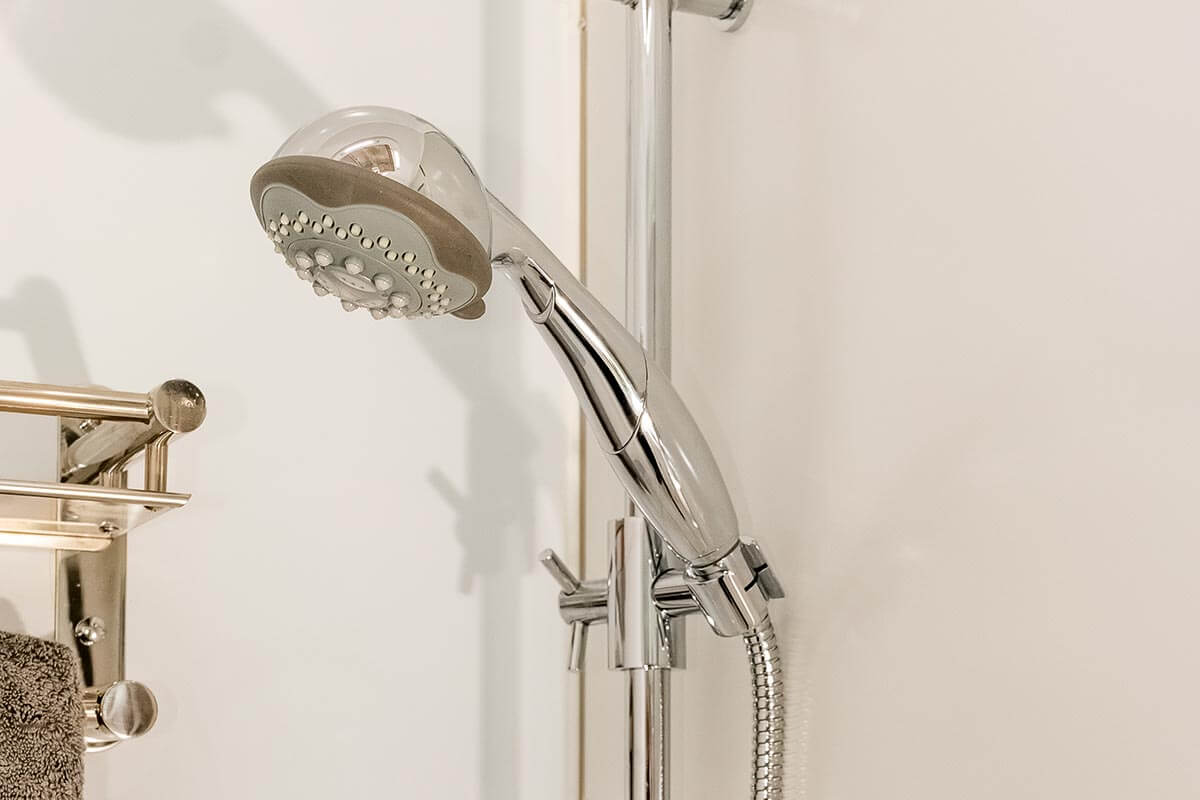

♦ Hot & cold plumbed wet bath with wash sink

MAJOR APPLIANCES

♦ Dometic Penguin II High-Efficiency Low Profile Rooftop Air Conditioner
♦ Truma Aquago Comfort Plus instant hot water system (propane-operated)
♦ Dometic DFSD 12111 Furnace (propane operated)

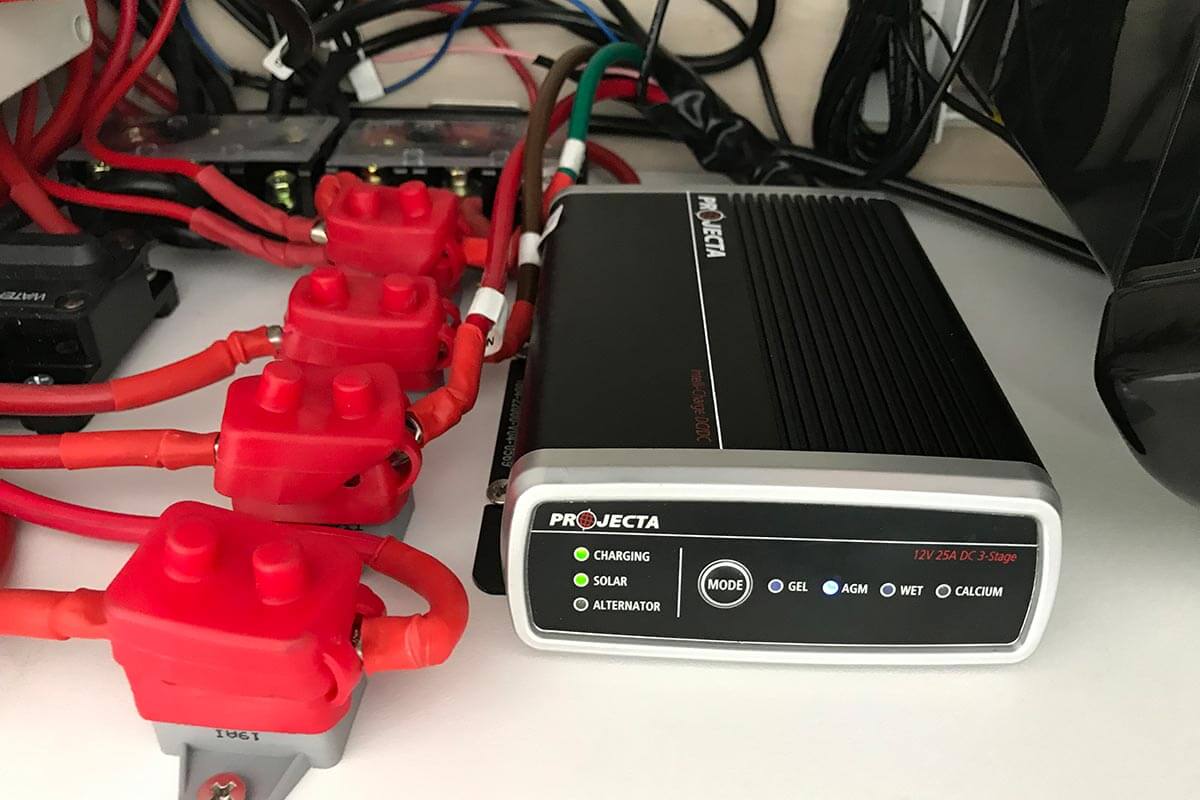

ELECTRICAL

♦ 2 x 150W solar panels

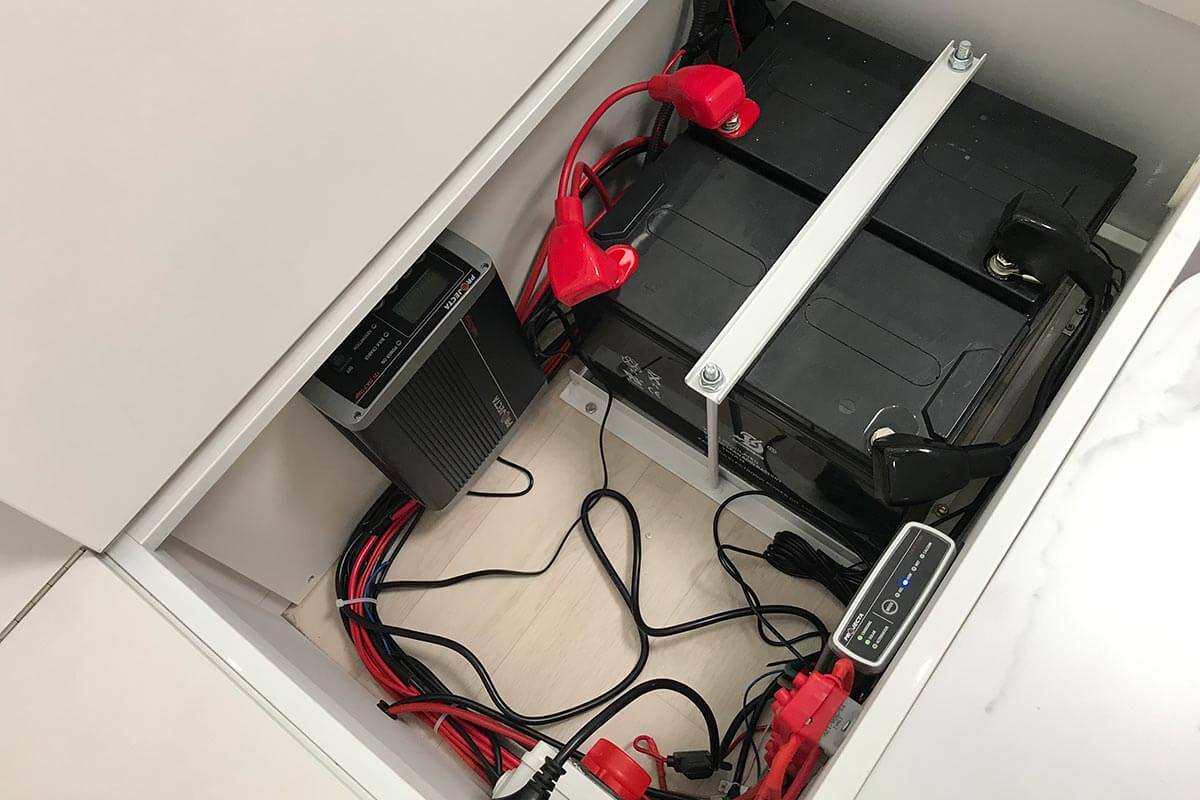

♦ 2 x 100Ah Lithium Iron Phosphate batteries
♦ BMPRO Battery Plus35-11-HA Battery Management System with RVVIEW2 battery monitor and BC300 external shunt

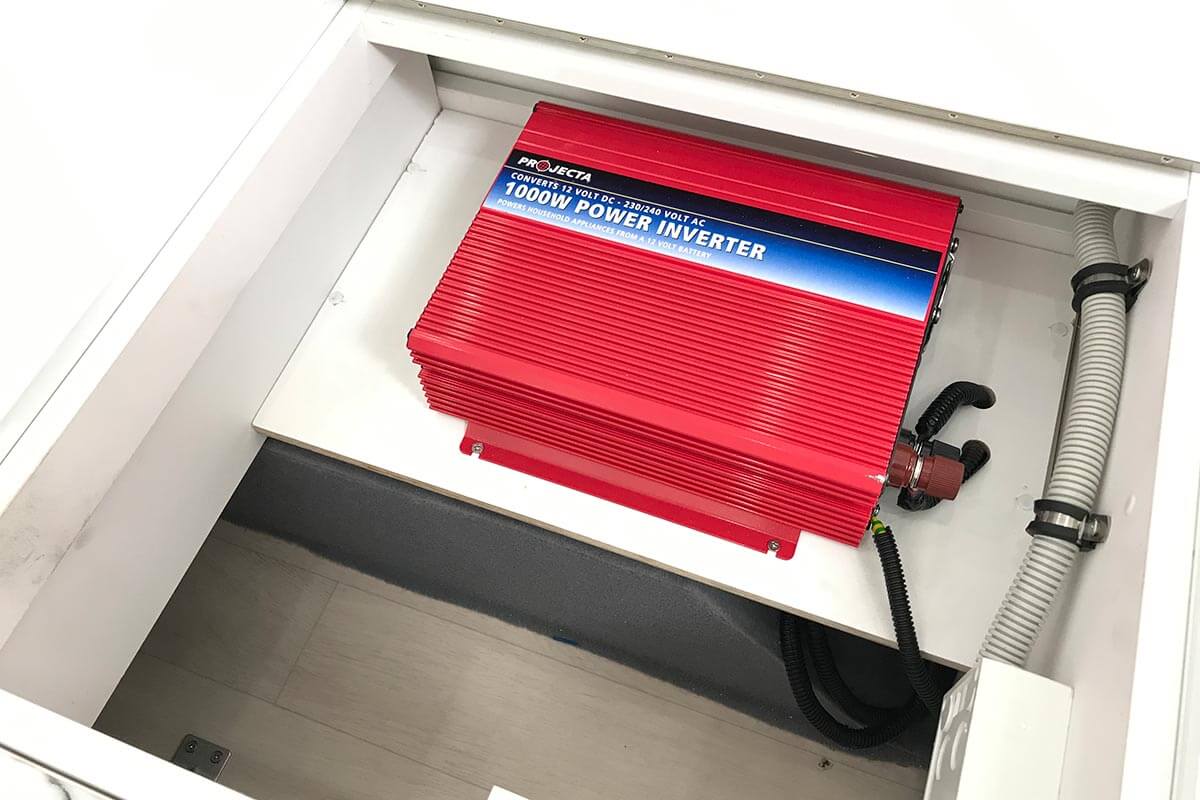

♦ AIMS Power 1500W Pure Sine Wave Inverter

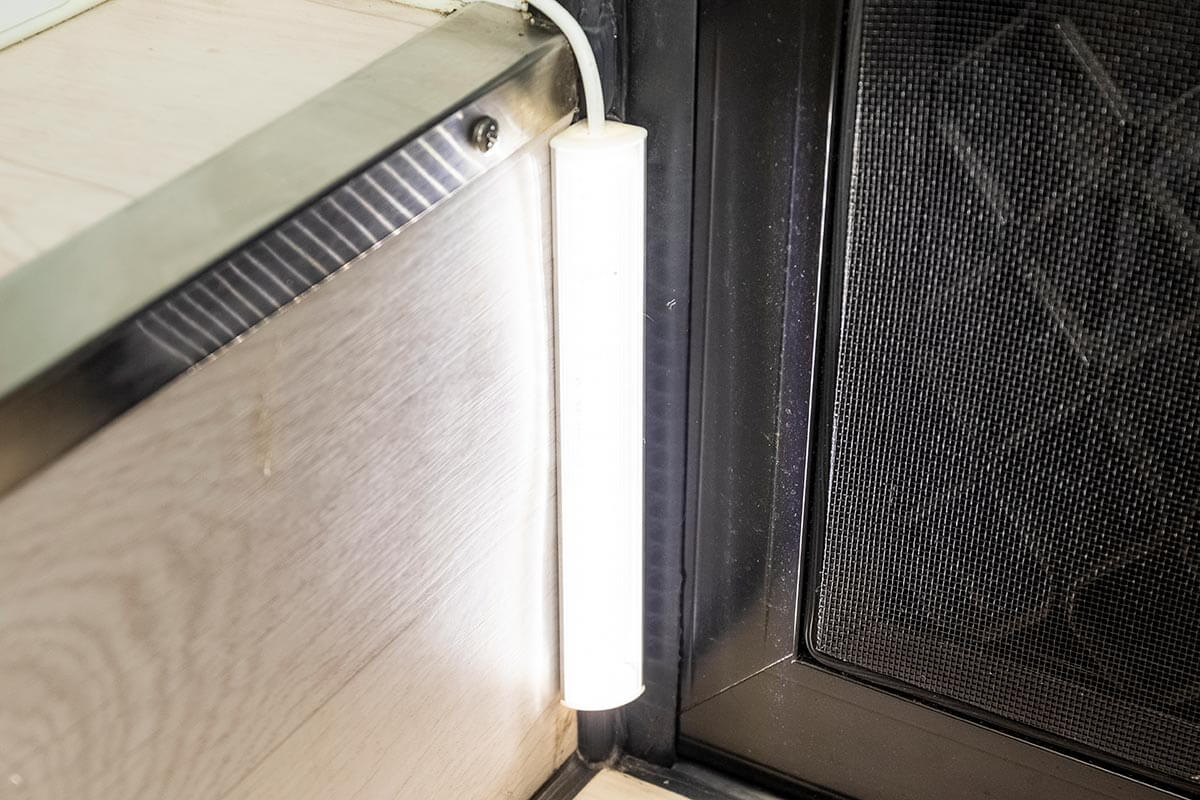

♦ Internal 12V LED lighting throughout with wireless switching

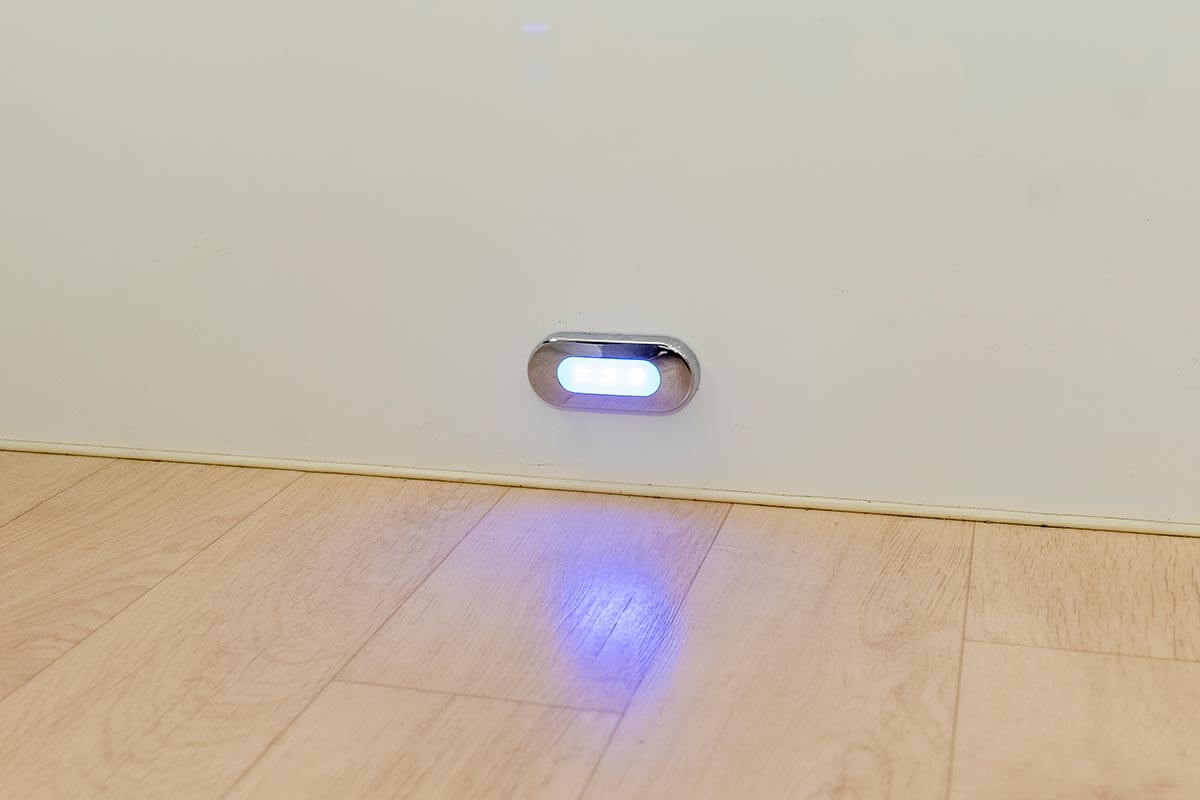

♦ External 12V LED lighting throughout, position markers, indicator & stop/tail lights + awning and offside wall lighting and forward and rear spotlights with blue light up entry door grab handle
♦ Light Connection Plug – 7-way trailer connector (SAE J2863 type)

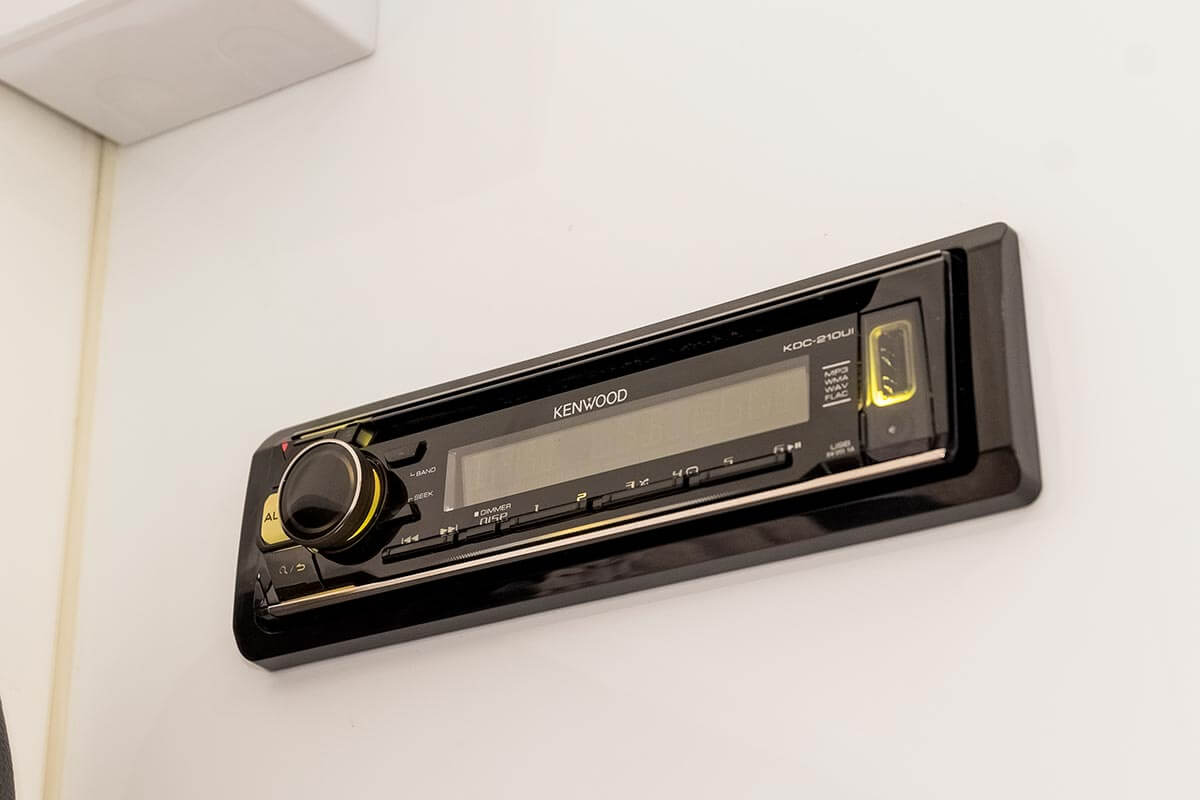

♦ Stereo head unit with internal & external speakers
♦ 19″ LED TV

INTERNAL POWER OUTLETS

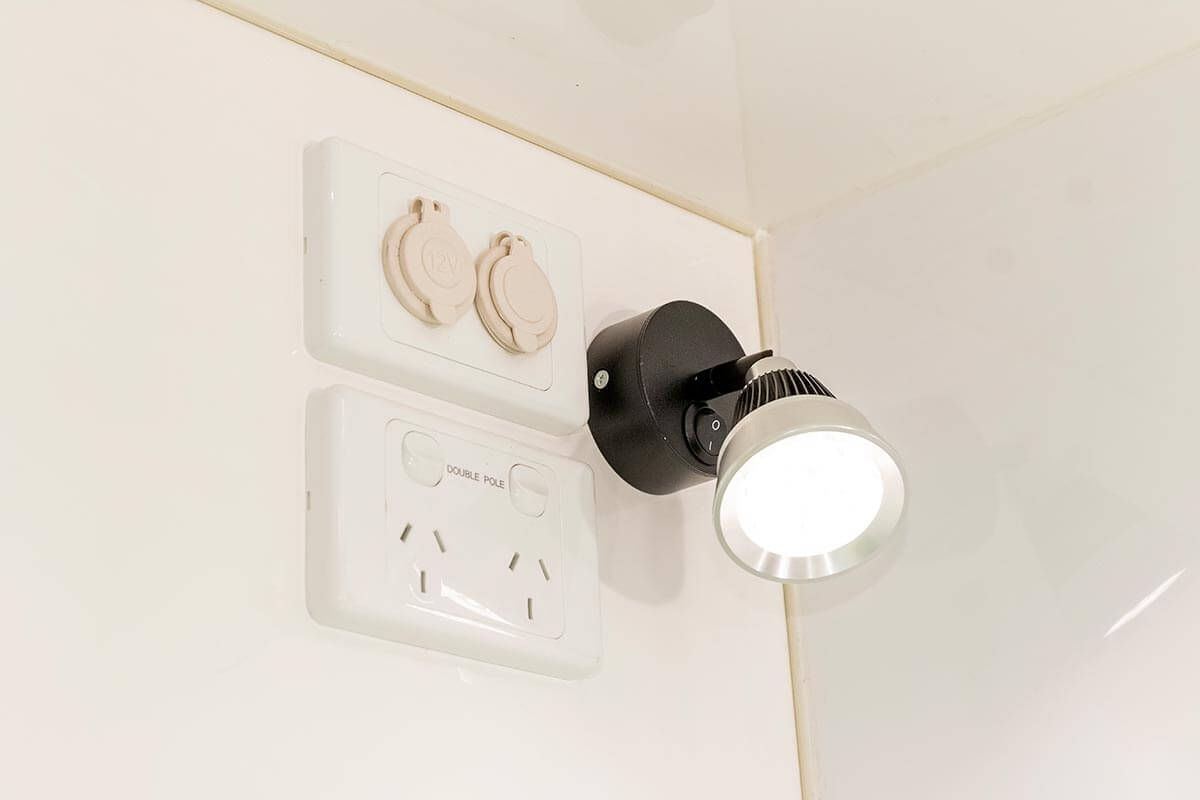

♦ 3 x 12V accessory sockets
♦ 2 x 5V dual USB charging ports (1A & 2A split)

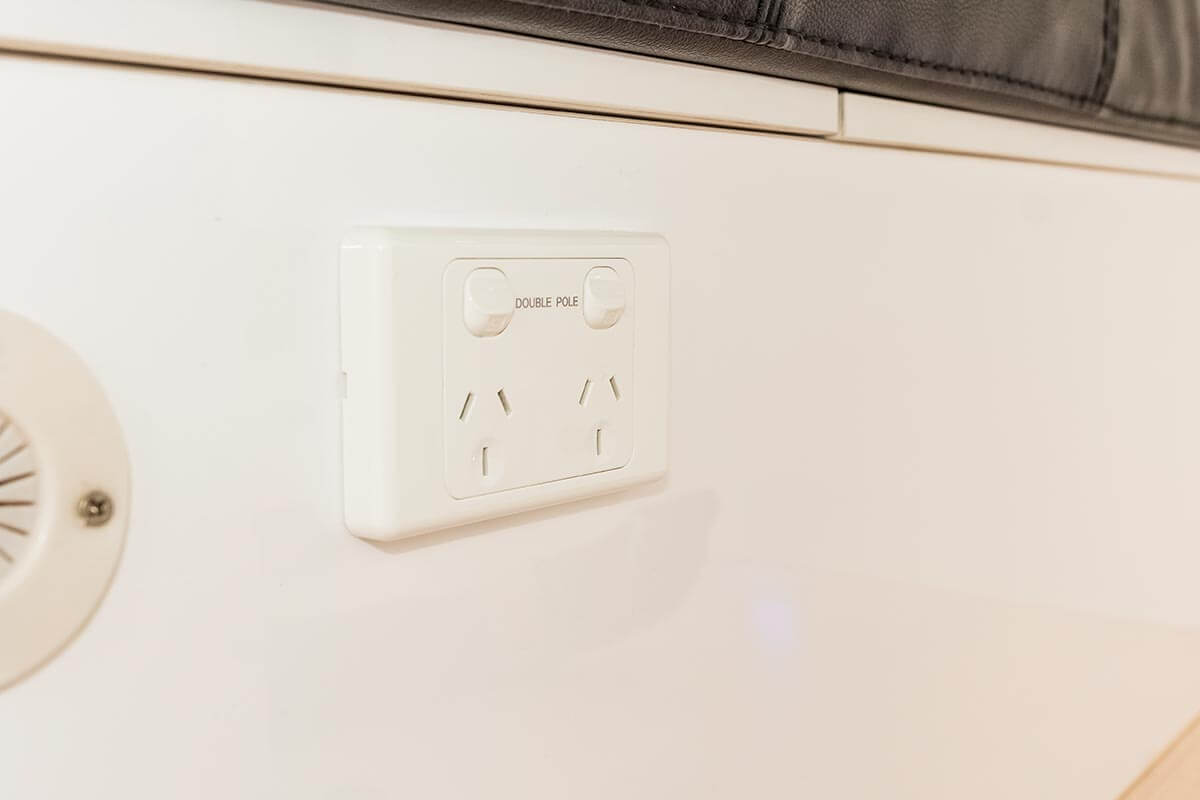

♦ 5 x Double 110V outlets

EXTERNAL POWER OUTLETS

♦ 2 x Anderson plugs
♦ 2 x 12V accessory sockets

FEATURES & INCLUSIONS
