  • XT16HR East West Overland Travel Trailer

Affordable Travel Trailer for Couples

The new XT16HR-East West offers everything the off-road adventurer wants and more! XT16 is more than capable of tackling the toughest terrain out there. The tough welded alloy frame and composite panel-bodied caravan are built to last. Even with the lower price, it’s not all about the rugged with the XT16, with volumes of integrated storage, an internal toilet and shower, a full stainless steel kitchen with a 3 burner stove and sink with hot and cold water this caravan provides all the comforts you you could ask for in a caravan. On top of that add a full Queen size bed and large interior fridge and the XT-16HR-East West caravan’s Widebody spaciousness and top-level features give you the ultimate off-road getaway.
300W of Solar
Internal Ensuite
Internal Kitchen
Convertible Dinette Bed
Queen Size Bed
3 Berth
$452/month*
MDC USA XT16HR East West Travel Trailer
$69,990.00^

Cold Weather Package

Includes:
Water tank heating pads
LiFePRO+® lithium battery with integrated heating
HWS electric anti-freeze kit
Insulated water lines

DIMENSIONS & WEIGHT

TONGUE WEIGHT

Approx. 441 lb

GVWR

6172 lb

CURB WEIGHT

Approx. 5115 lb

MDC USA XT16HR East West overlanding caravan dimensions

INTERIOR FEATURES

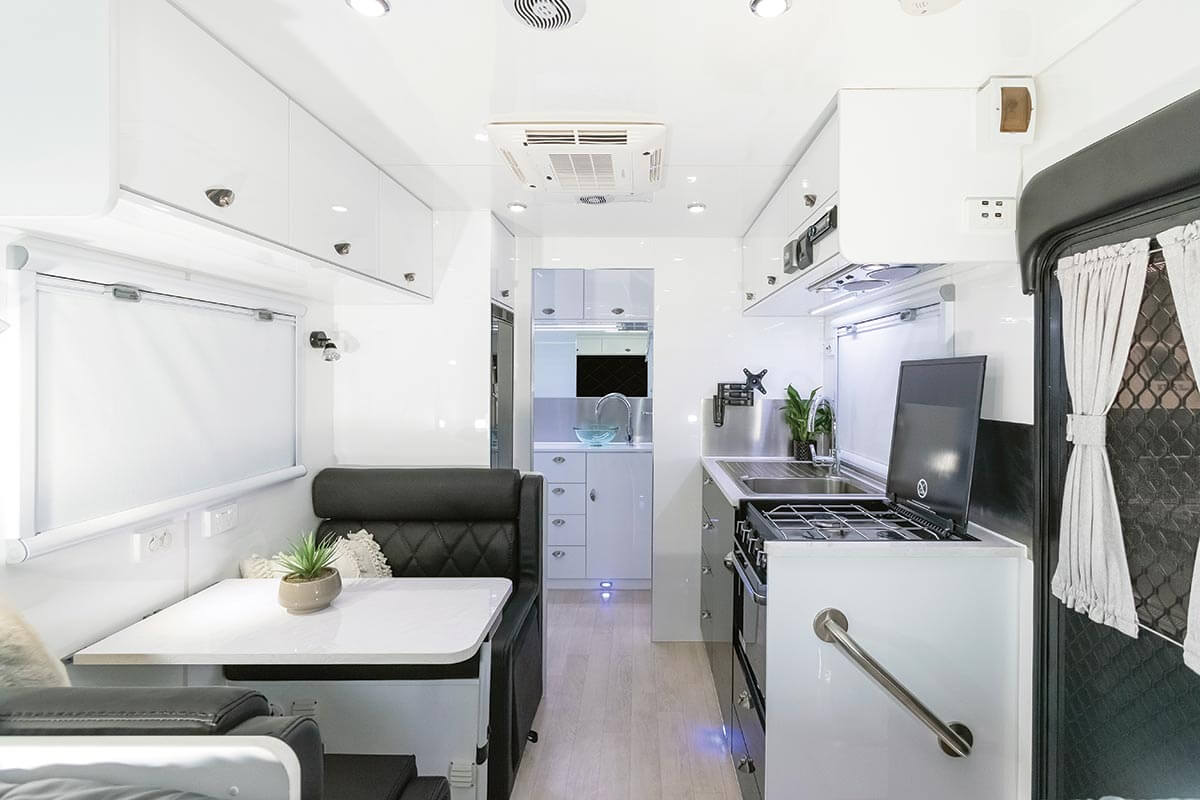

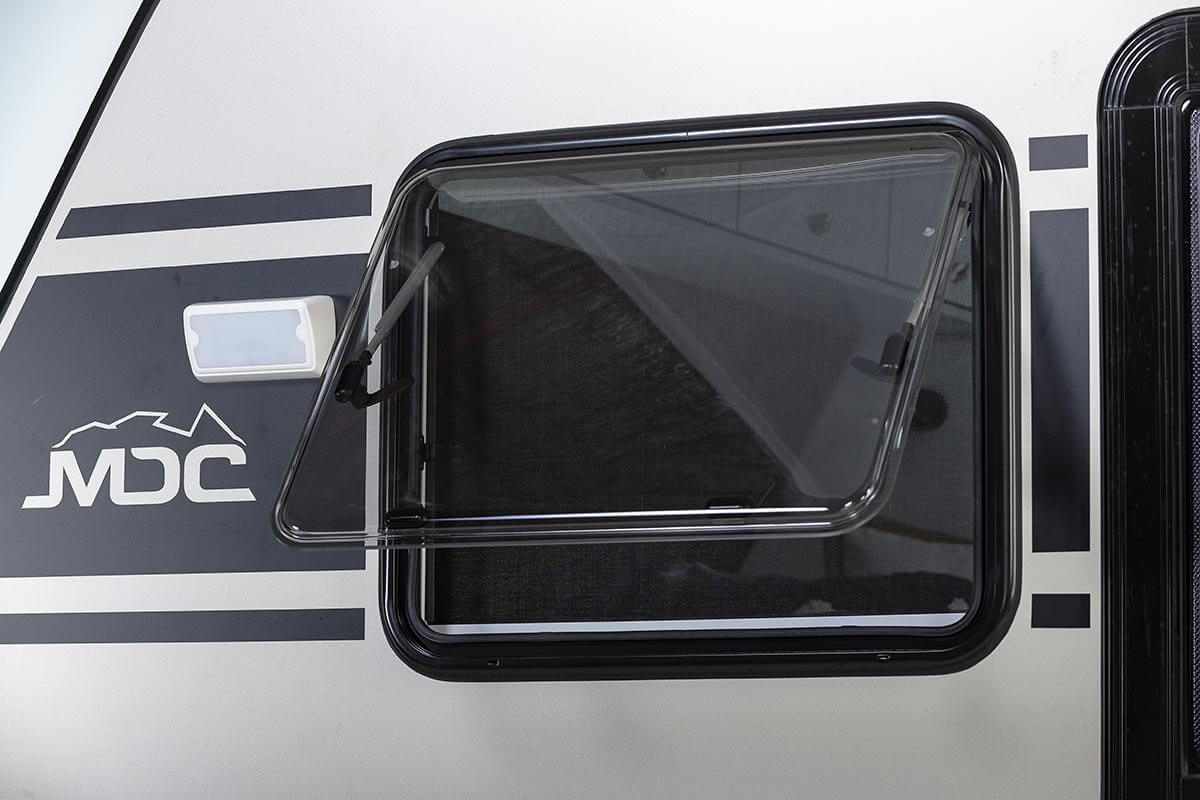

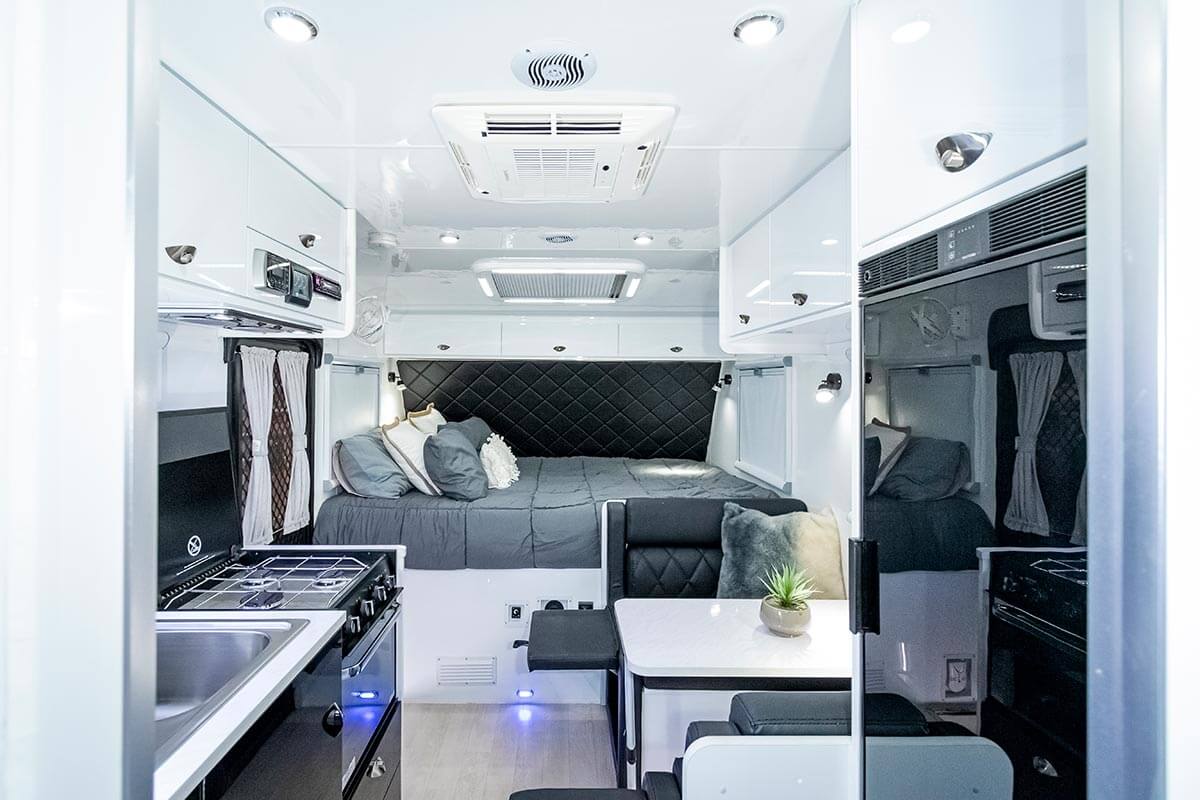

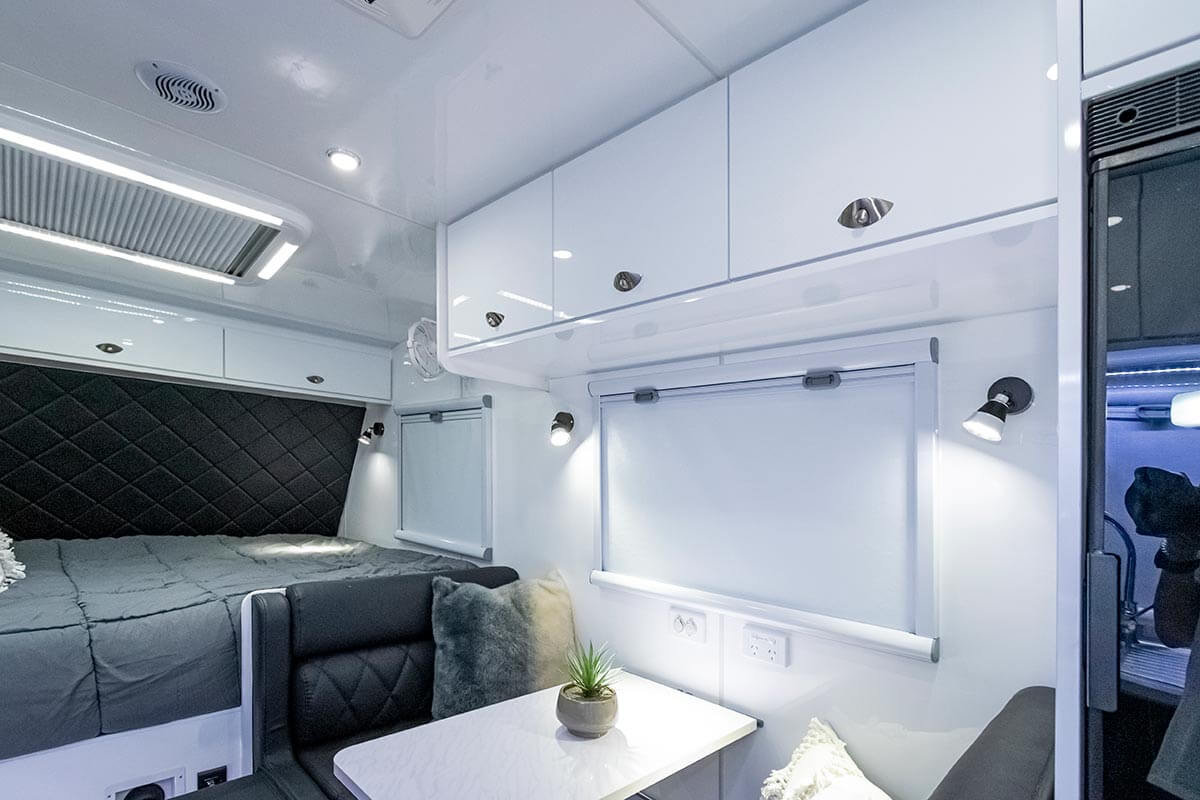

Created with easy clean finishes, comfort is maximized with a 200mm pillow top and genuine *Leatherfoam cushions on the dinette. Completing the off-grid luxury package is a combination shower and toilet ensuite and large upright fridge freezer. To ensure comfort in all seasons the XT16 windows are thermally efficient acrylic with combination blinds and screens.

EXTERNAL FEATURES

A stainless steel kitchen with a gas cooktop, sink with hot and cold water and plumbed gas will bring out the gourmet while the large fridge slide beside gives you the option for a second fridge to stay out and about longer. MDC black alloy wheels complete the stylish looks all the way to ground level.

EXPLORE XT16HR EAST WEST

Please Note: Above 3D/2D Floorplan is a representative pictorial of floorplan/layout only, please refer to actual product photos for design features and benefits.

SPECIFICATIONS

GENERAL

♦ Sleeps 3
♦ 1x Custom pillow-top Olympic Queen size innerspring mattress
♦ Mattress – 83” L x 62” W x 9” H
♦ Combination of welded aluminum 2″ x 1″ Hot Roll Steel Rectangle Tube and 1″ X 1″ square aluminum alloy Body Construction

DIMENSIONS – with Aircon

♦ Open – 21’6″ L x 14’3″ W x 10′ H
♦ Closed – 21’6″ L x 7’8″ W x 10′ H

WEIGHTS & RATINGS

♦ Dry weight 5354 lbs
♦ Tongue weight 441 lbs
♦ GVWR 6147 lbs

CHASSIS

♦ 5″ x 2″ – Q345 Galvanized Steel Hot Rolled Rectangle Tube Frame

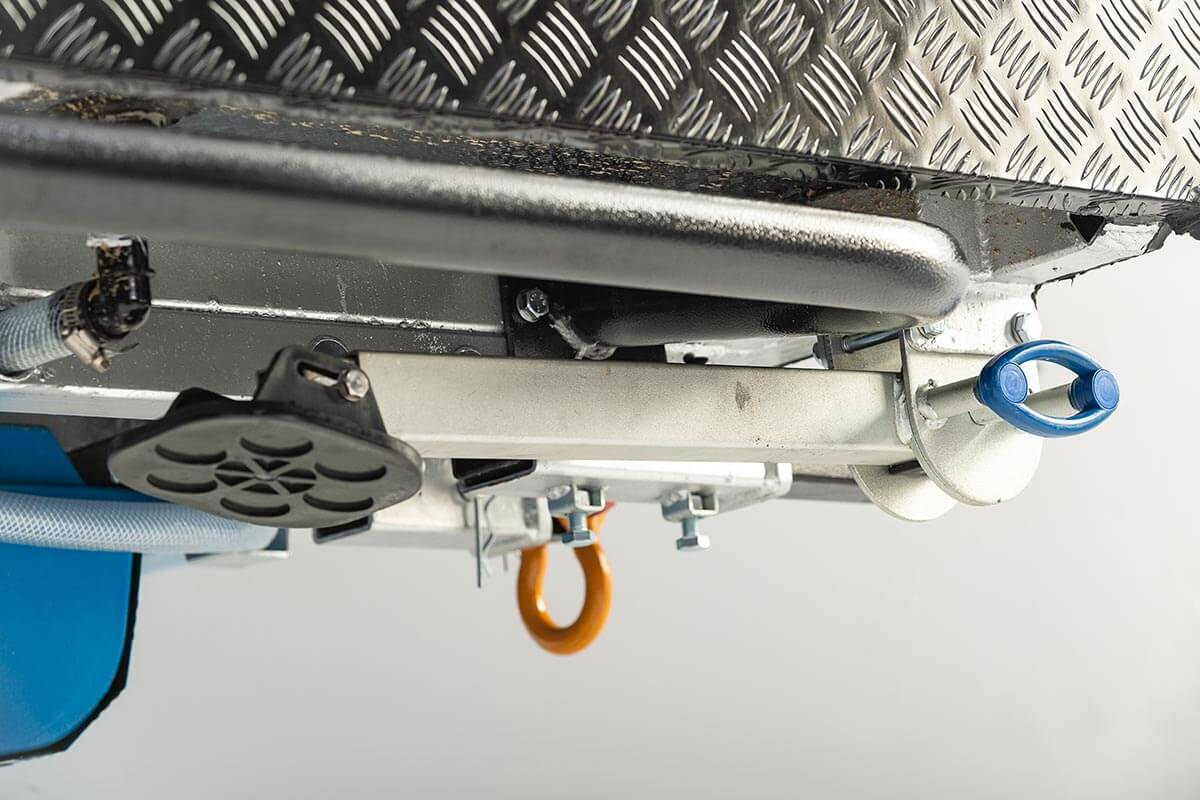

♦ Cruisemaster™ DO35 hitch
♦ 10″ swing-up and lockable Jockey Wheel
♦ 16×7.5 6/139.7 Aluminum alloy wheels fitted with 265/75R16 Goodride MT tires + 2 spares

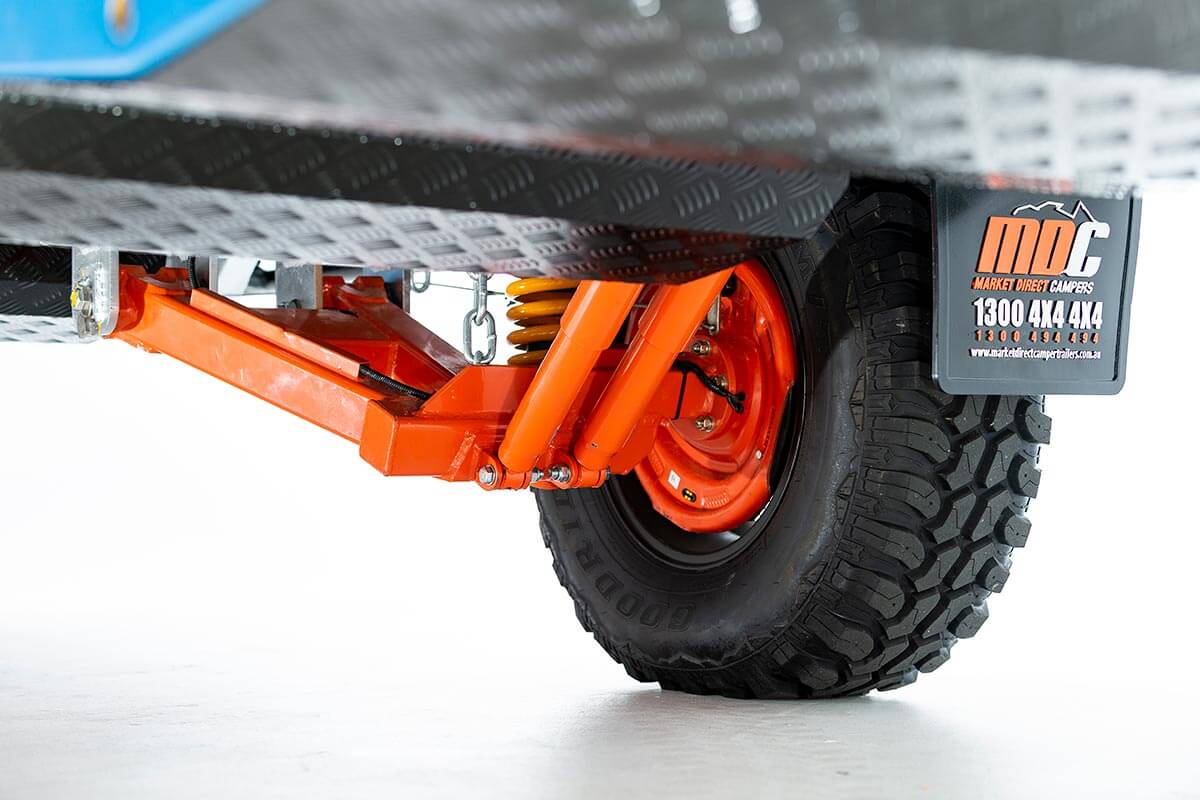

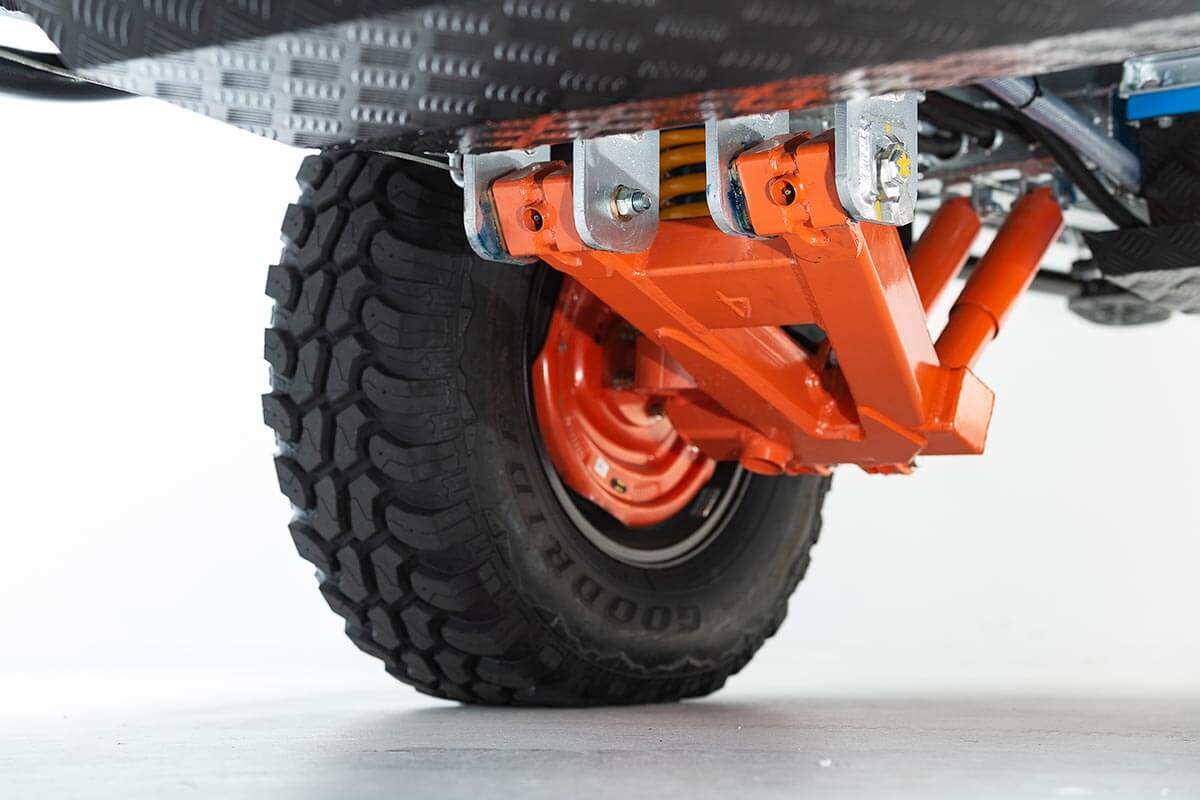

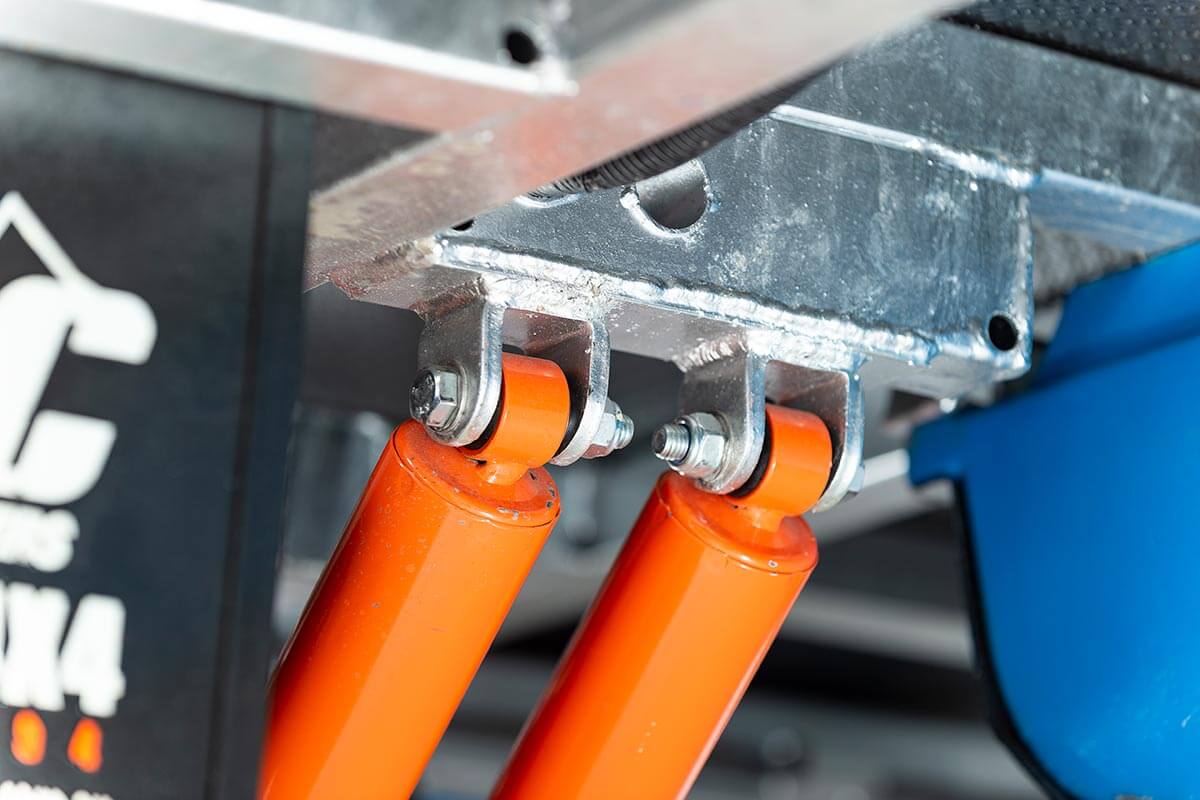

♦ X-TRACK Independent coil spring suspension with 2x TOUGH TRAX Shock absorbers on each side

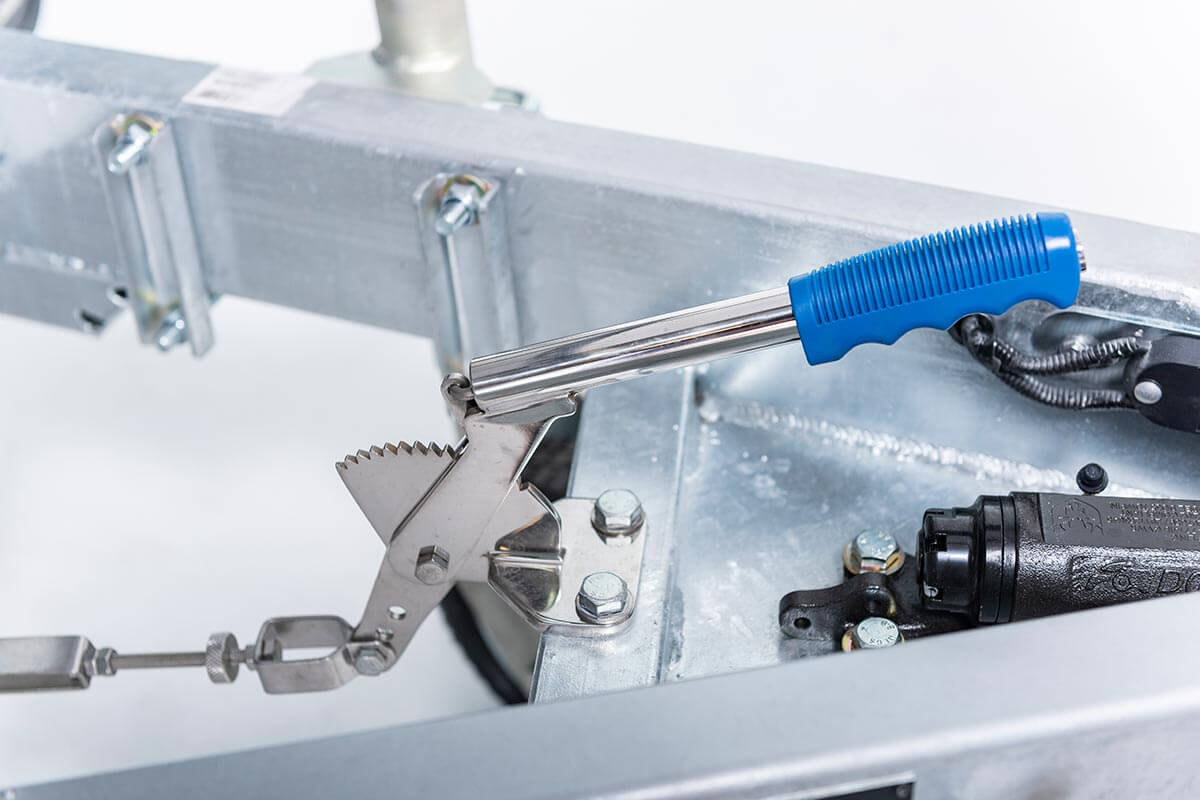

♦ 12″ electromagnetic brakes with handbrake and drawbar mounted emergency breakaway system
♦ 4 x heavy-duty lockable and adjustable drop-down stabilizer legs

EXTERIOR

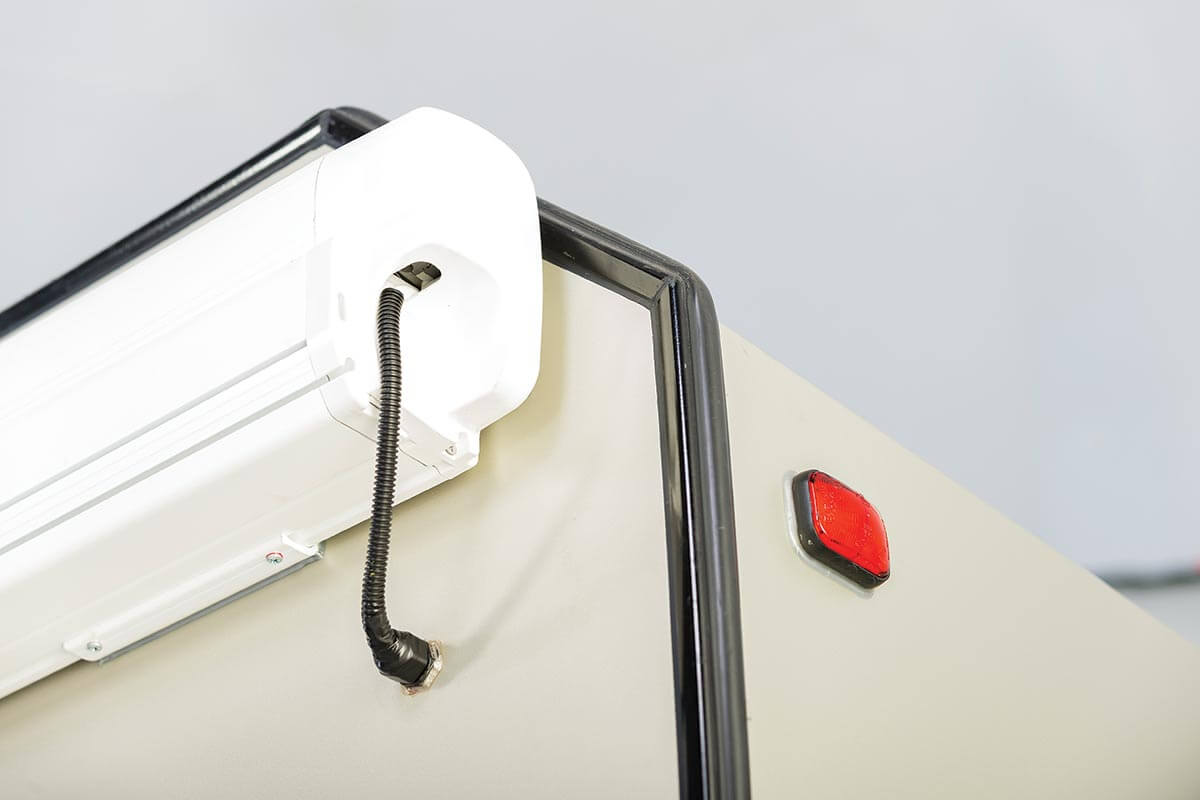

♦ 13.8′ 12V electric cassette awning

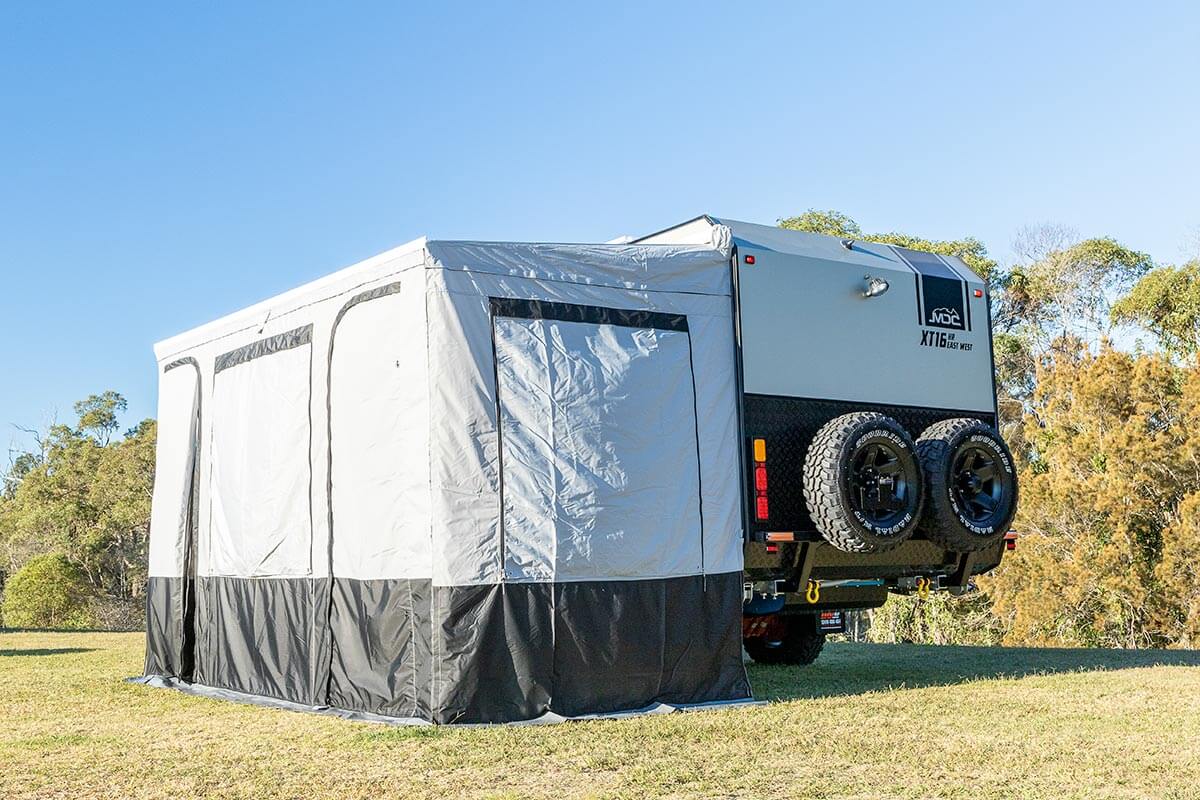

♦ Full annex, enclosed roof, walls, floor, and draft skirt

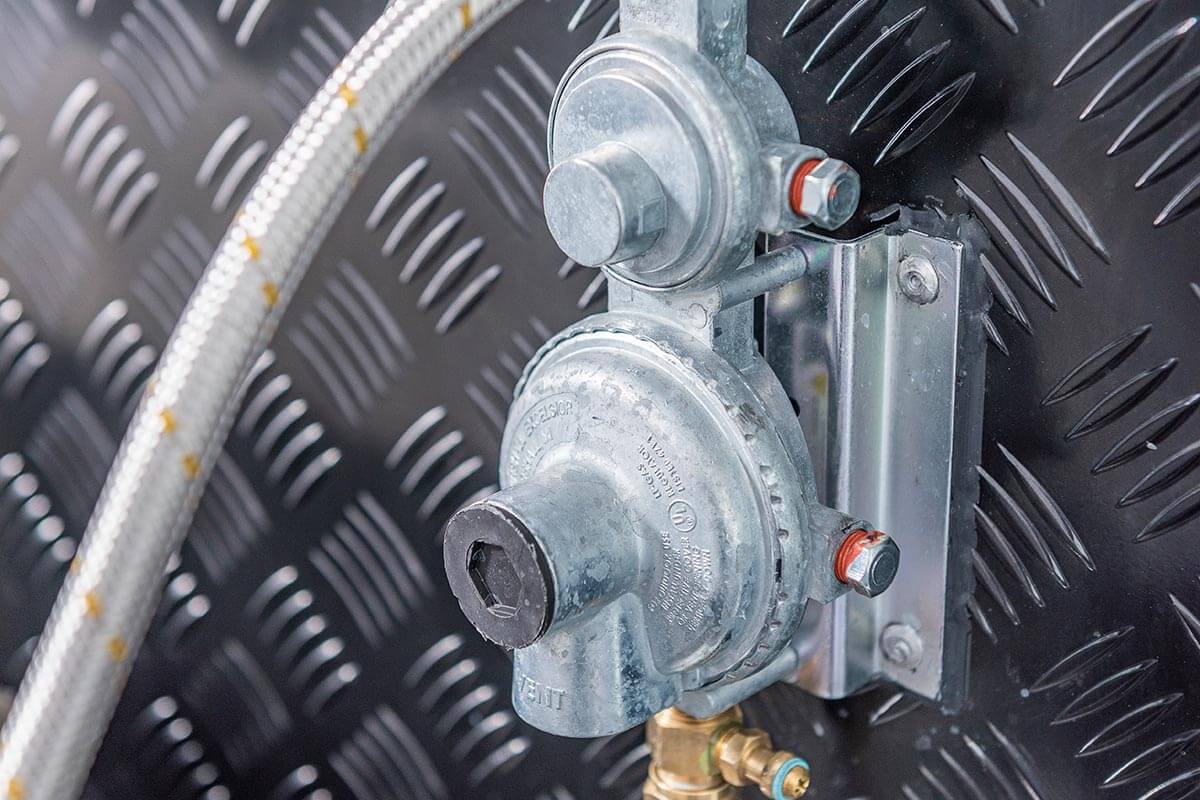

♦ 2x 20lbs propane cylinder and cylinder holders
♦ 2x 5 gallon jerry can holders
♦ 2x 21 gallon fresh water tanks + 1x 21 gallon grey water tank
♦ Water delivery – 12V electric marine diaphragm pump
♦ 4 Seasons Ready Cold Weather Package includes tank heating pads, HWS electric anti-freeze kit, LiFePRO+® integrated heating and insulated water lines

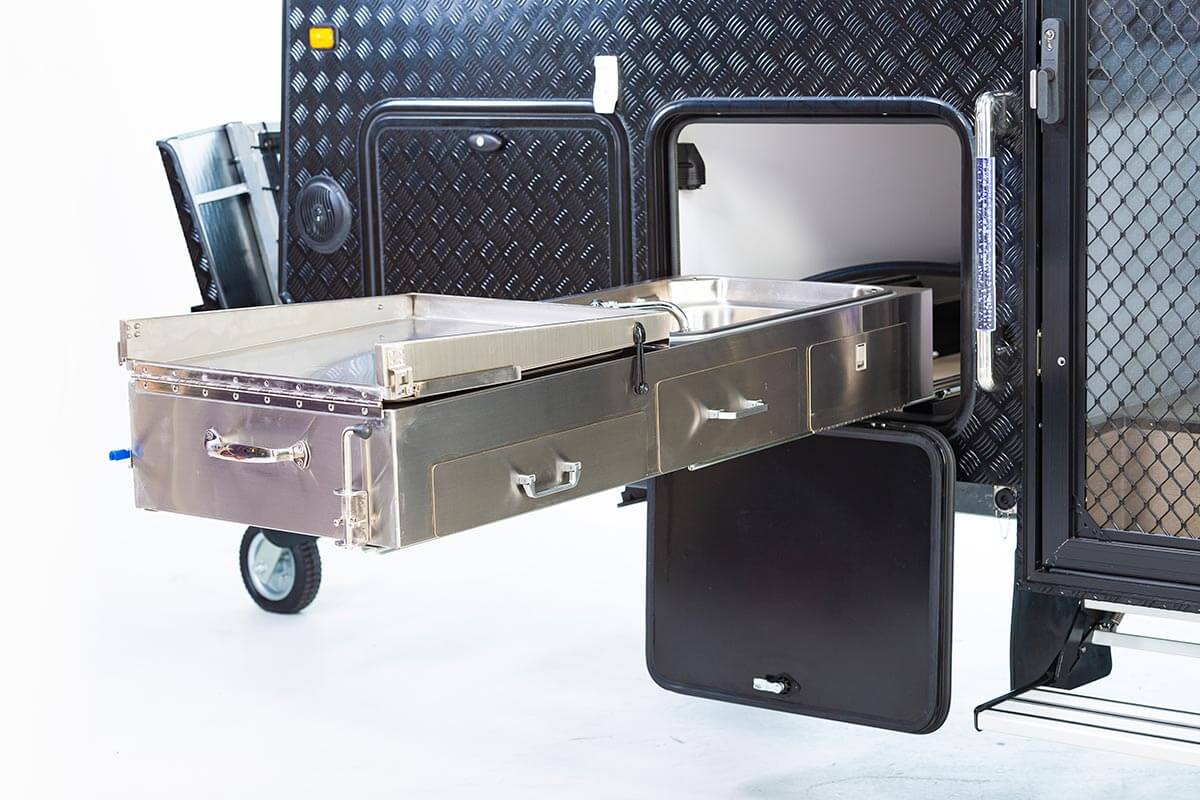

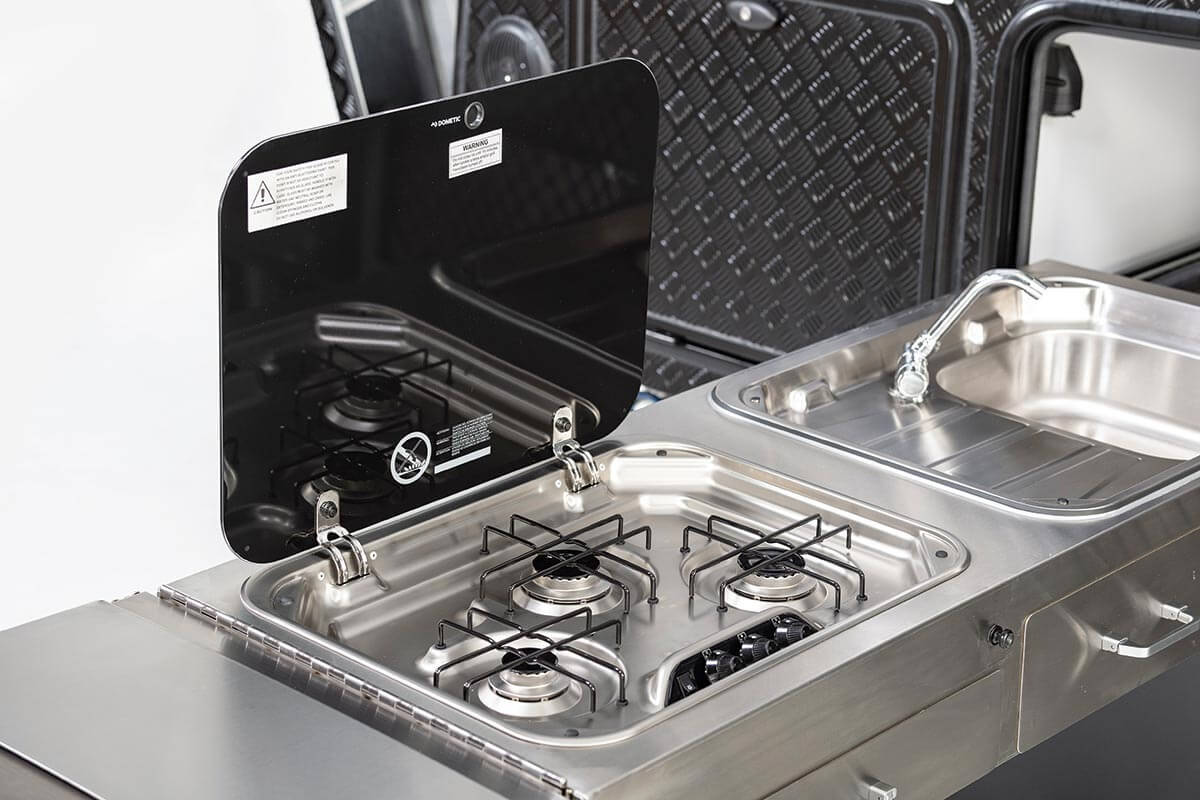

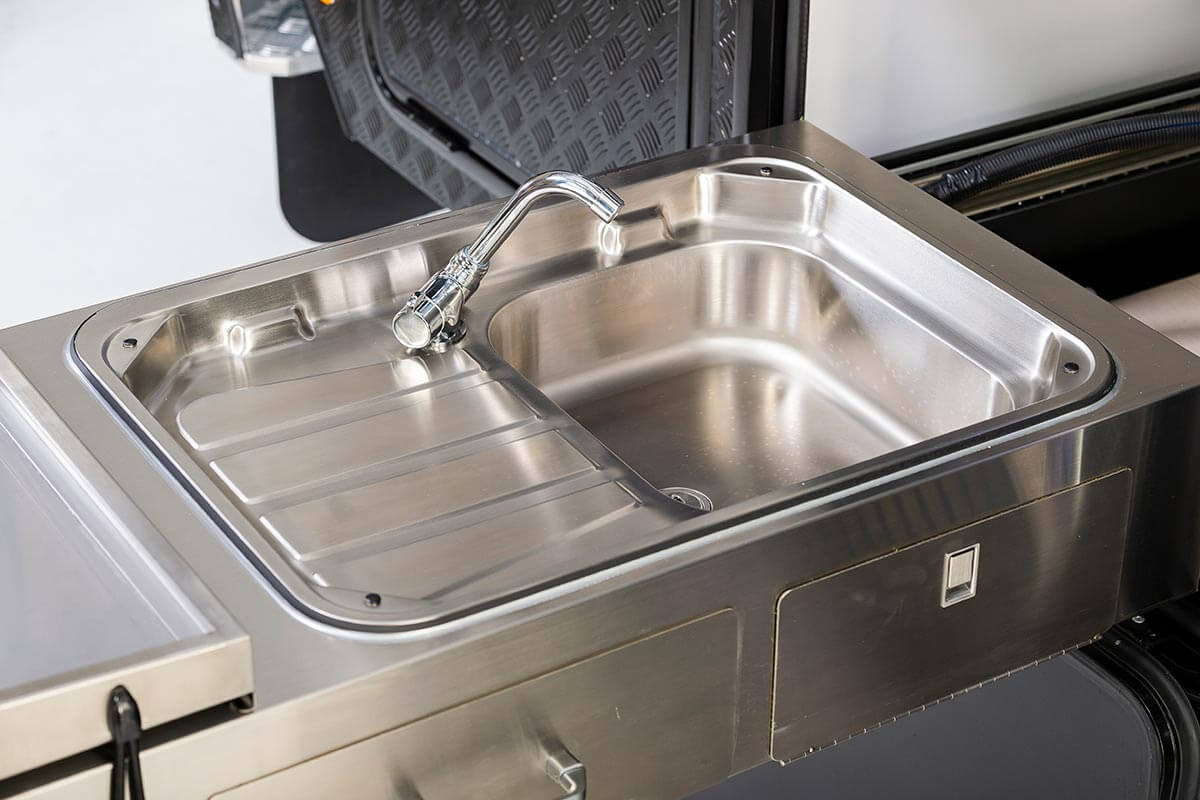

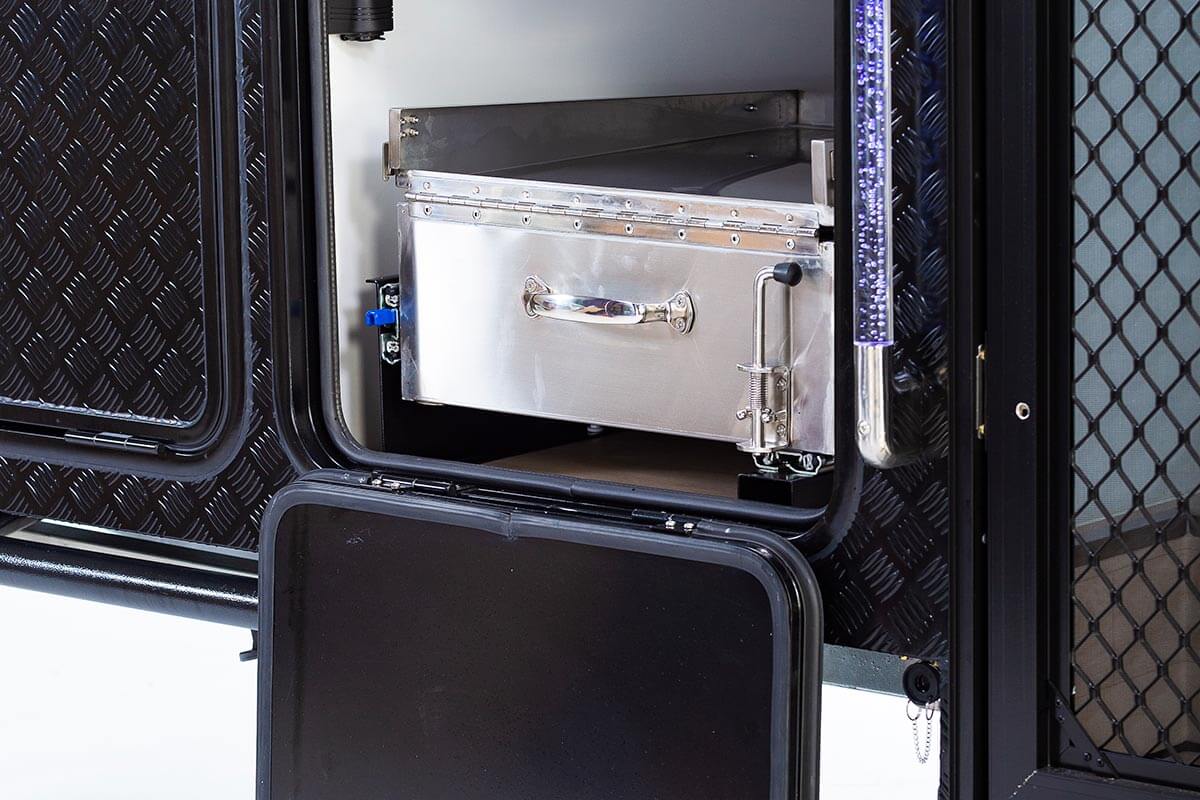

♦ External Slide out stainless Steel body with propane cooktop & washboard sink with plumbed hot & cold water supply

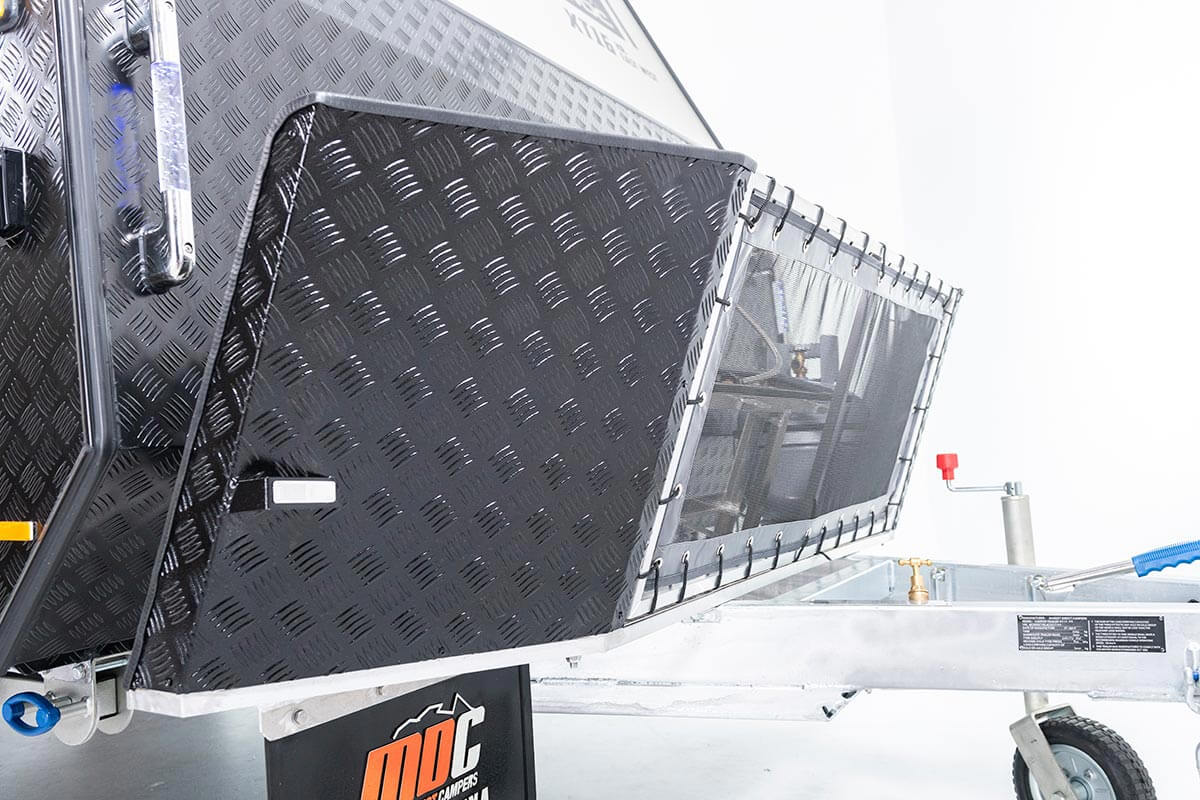

♦ Chequer plate stone guard with forward-facing and rear wheel mud flap protection

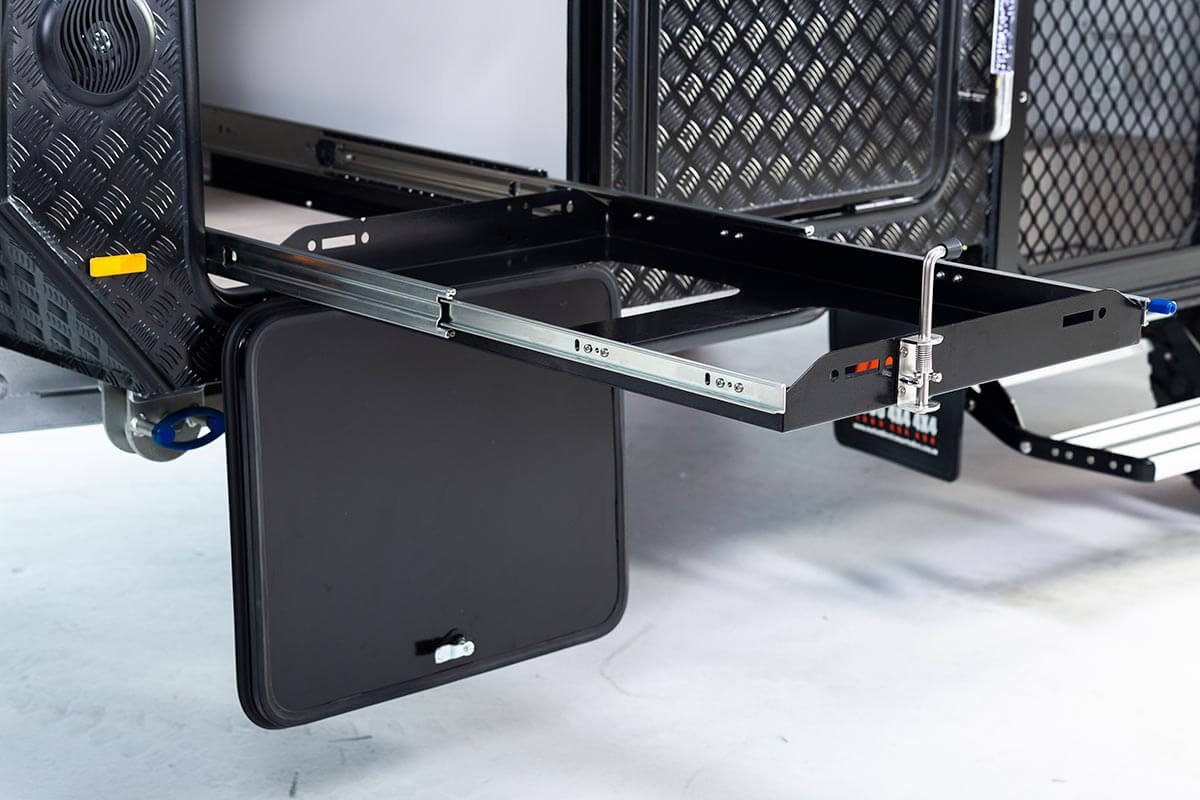

♦ Fridge Slide – 40¾” L x 21½” W x 18½” H
♦ Front toolbox included

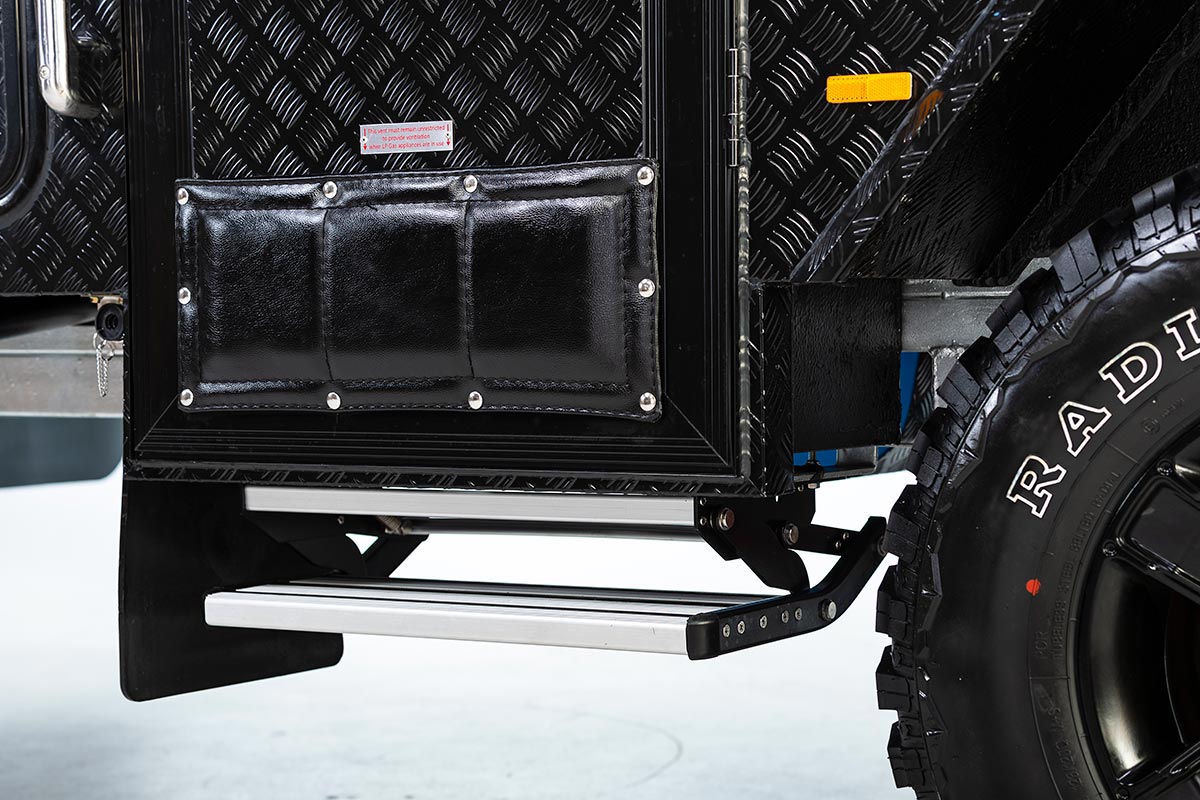

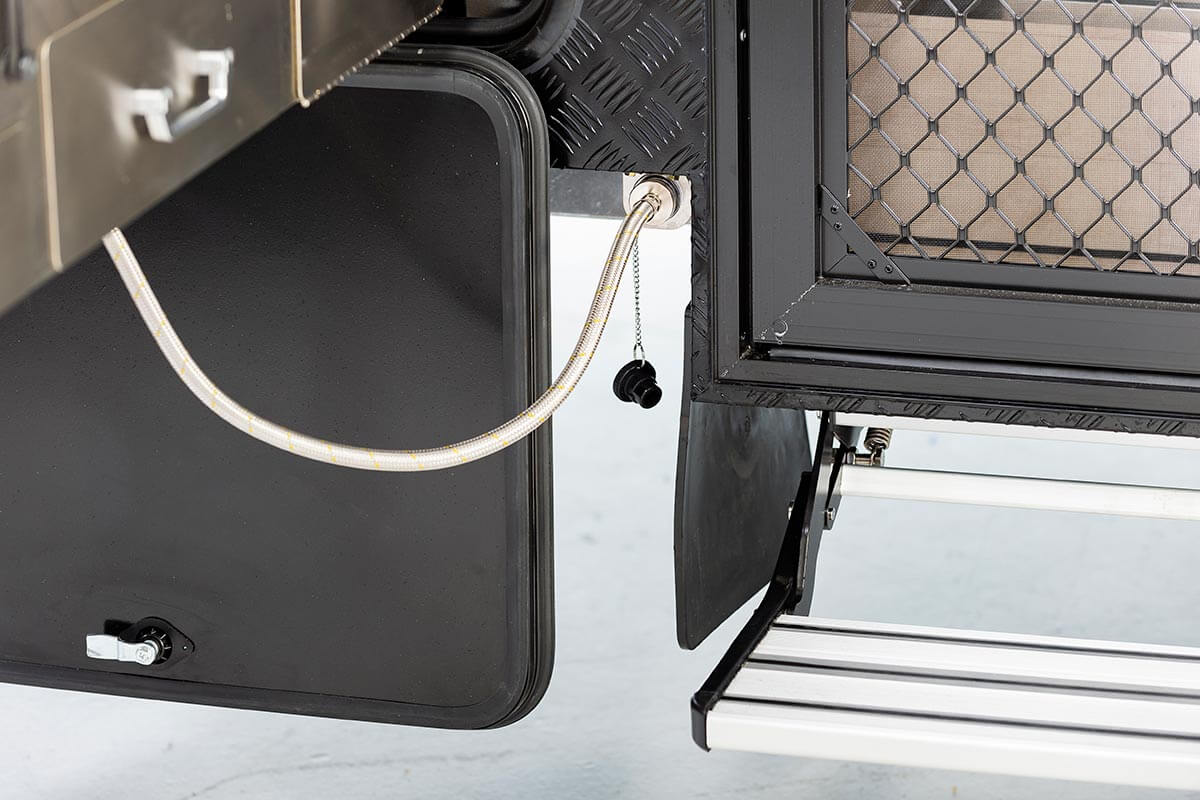

♦ Manually operated pull-down entry step

INTERIOR

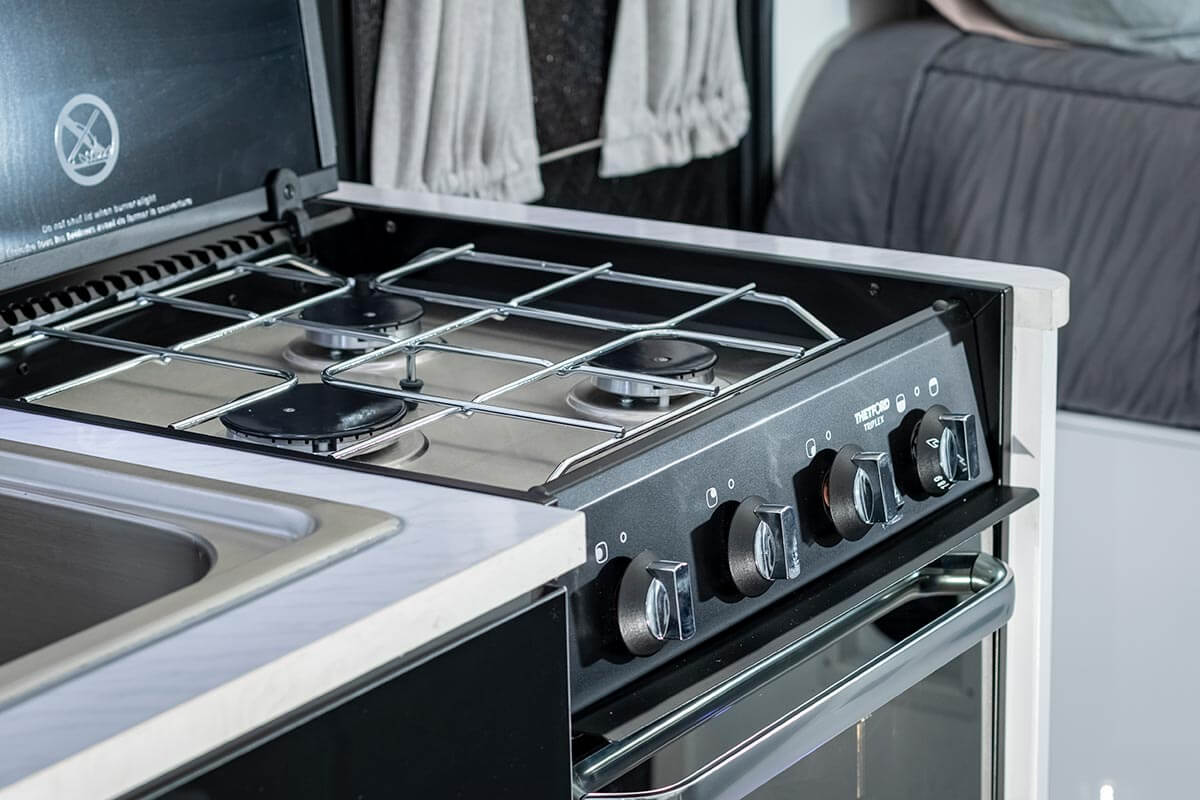

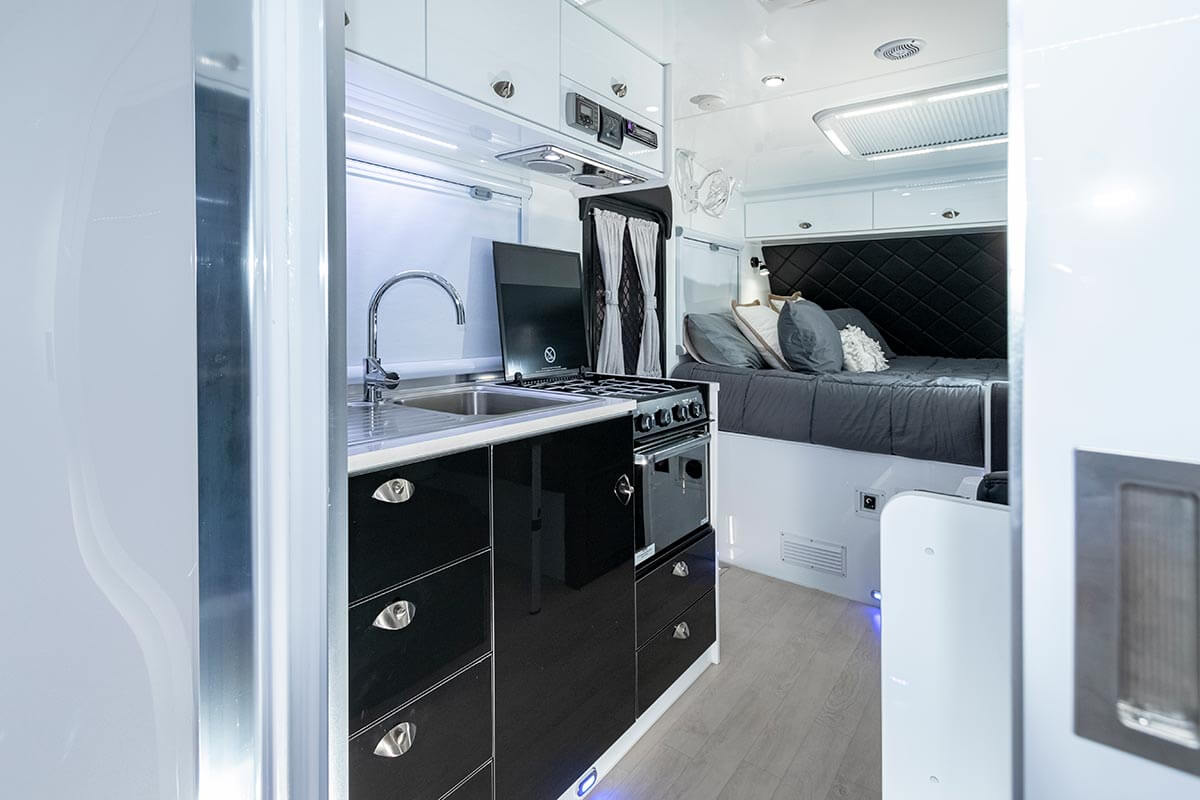

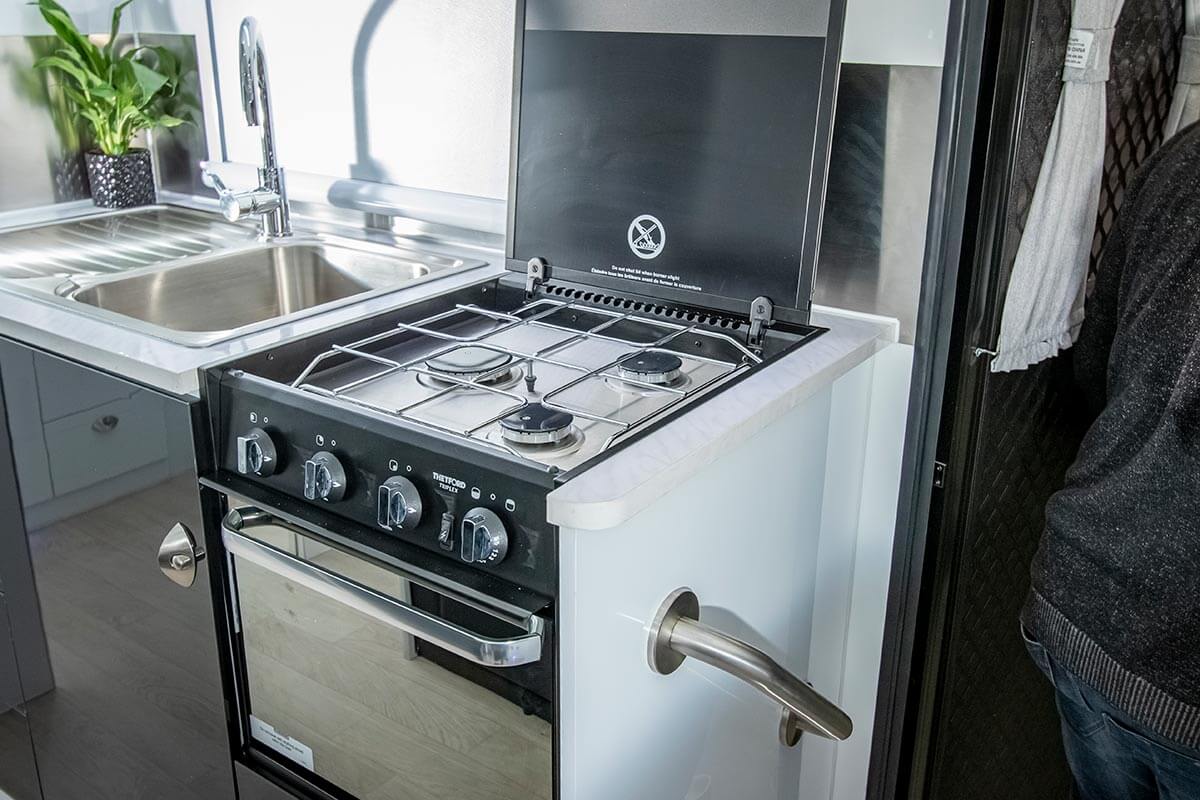

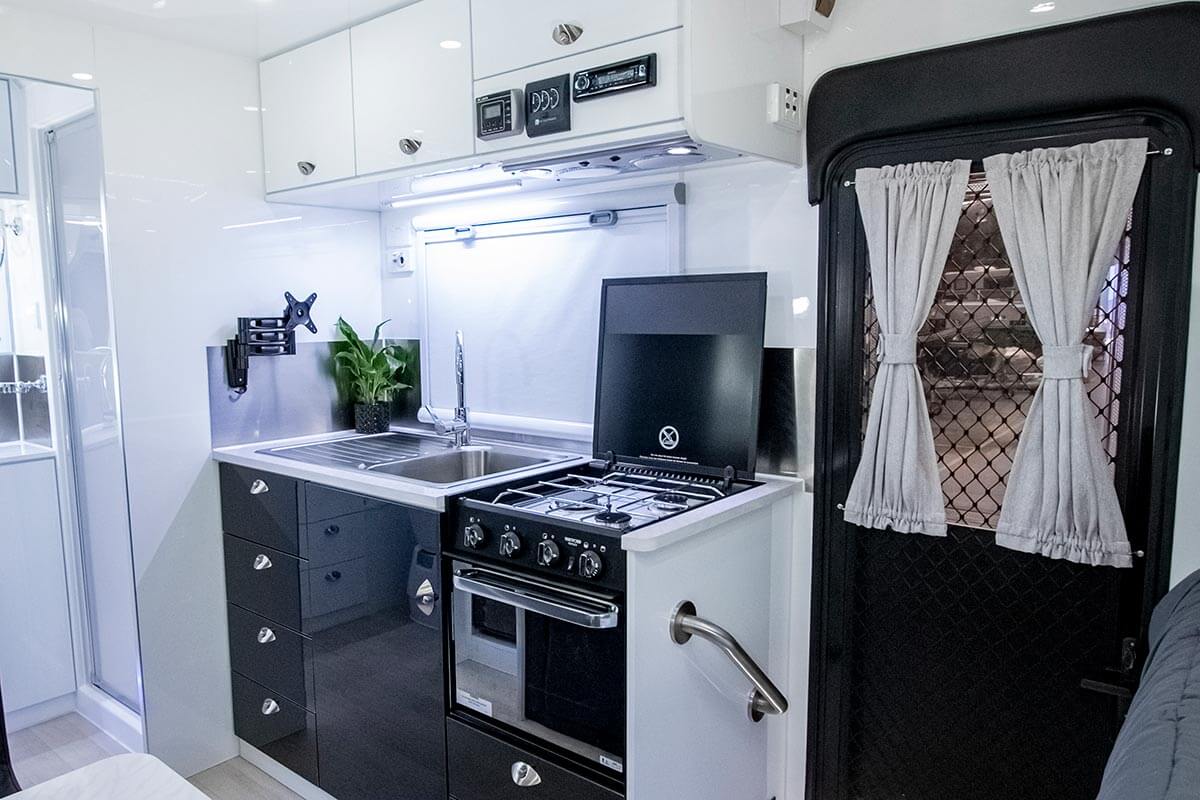

♦ Internal Laminated benchtops with glass lid propane stove/convection oven combo & plumbed washboard sink and internal refrigerator

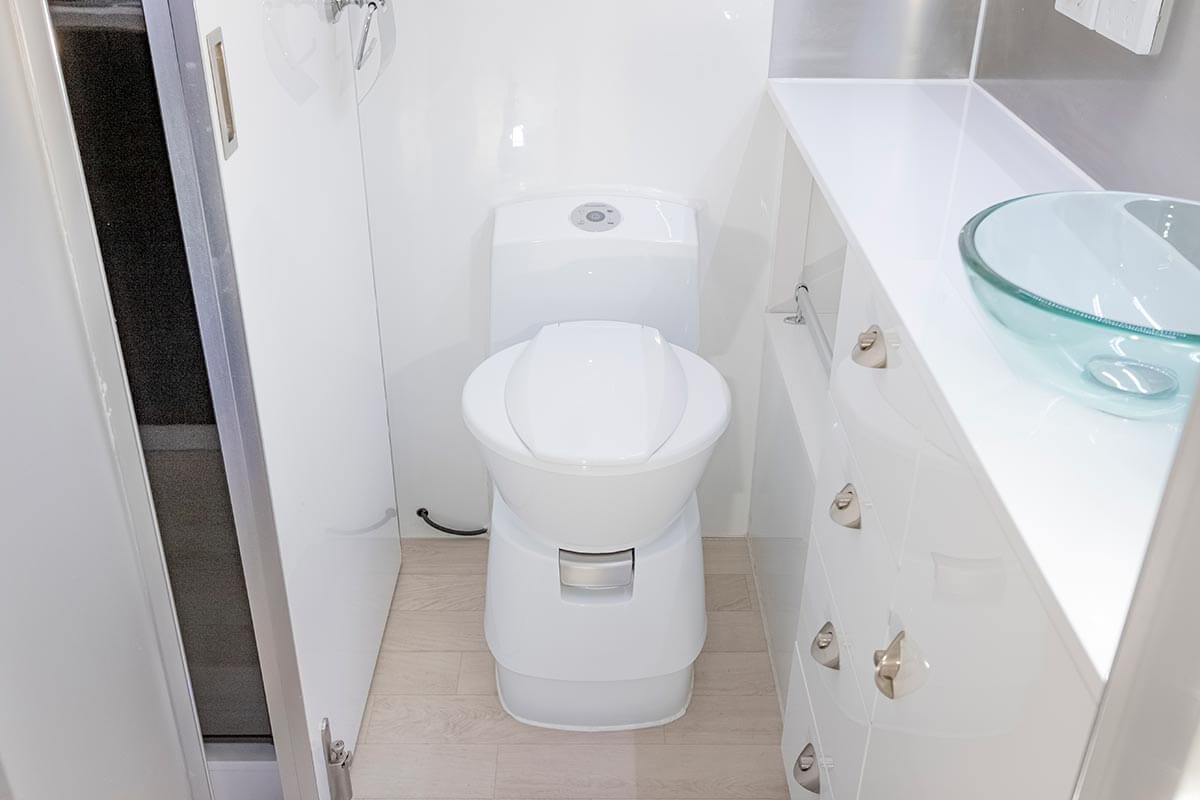

♦ Dometic CTS 4110 Cassette toilet + Hot and cold plumbed wash sink
♦ Hot & cold plumbed wet bath

MAJOR APPLIANCES

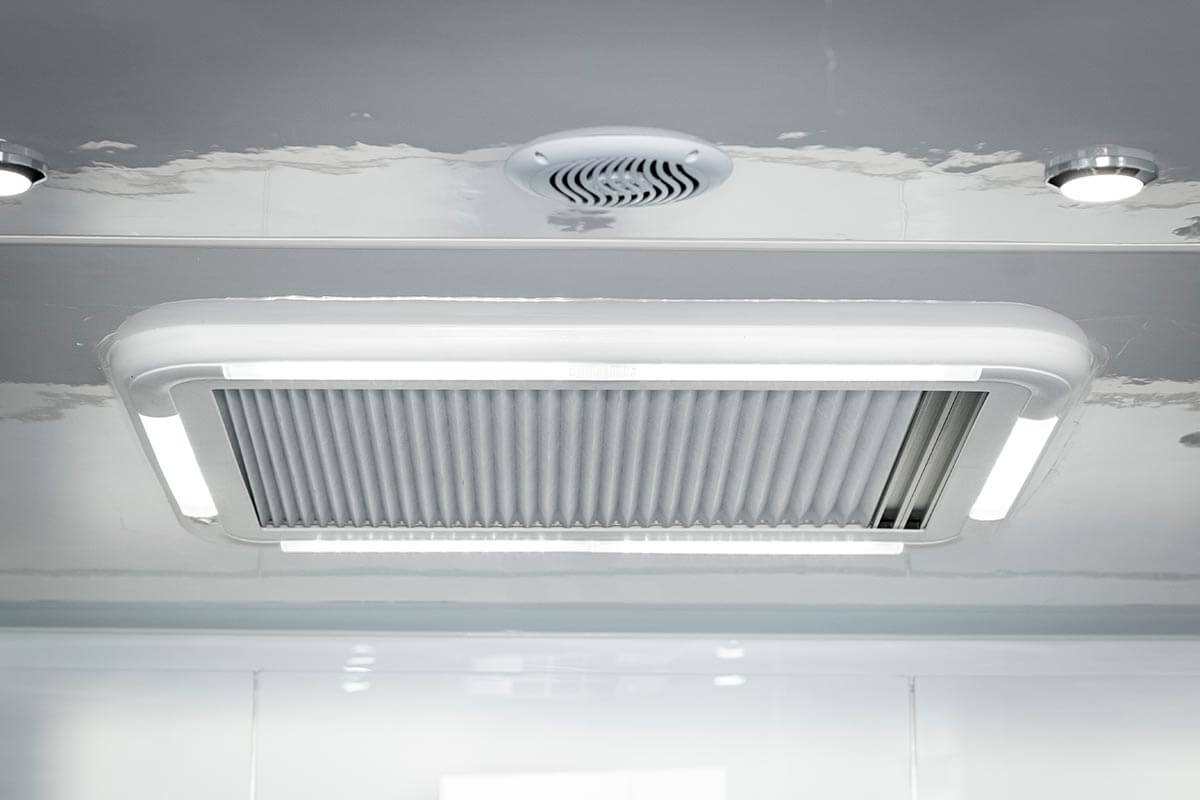

♦ Dometic Penguin II High-Efficiency Low Profile Rooftop Air Conditioner

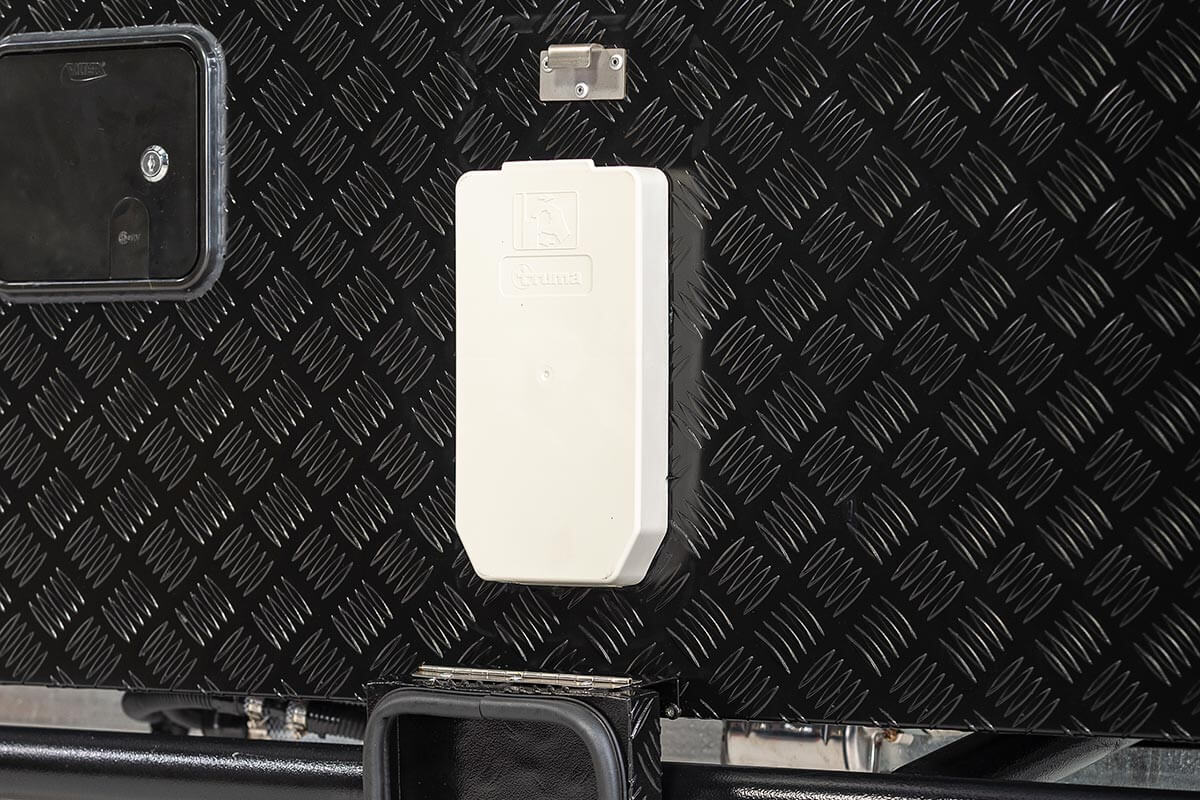

♦ Truma Aquago Comfort Plus instant hot water system (propane-operated)

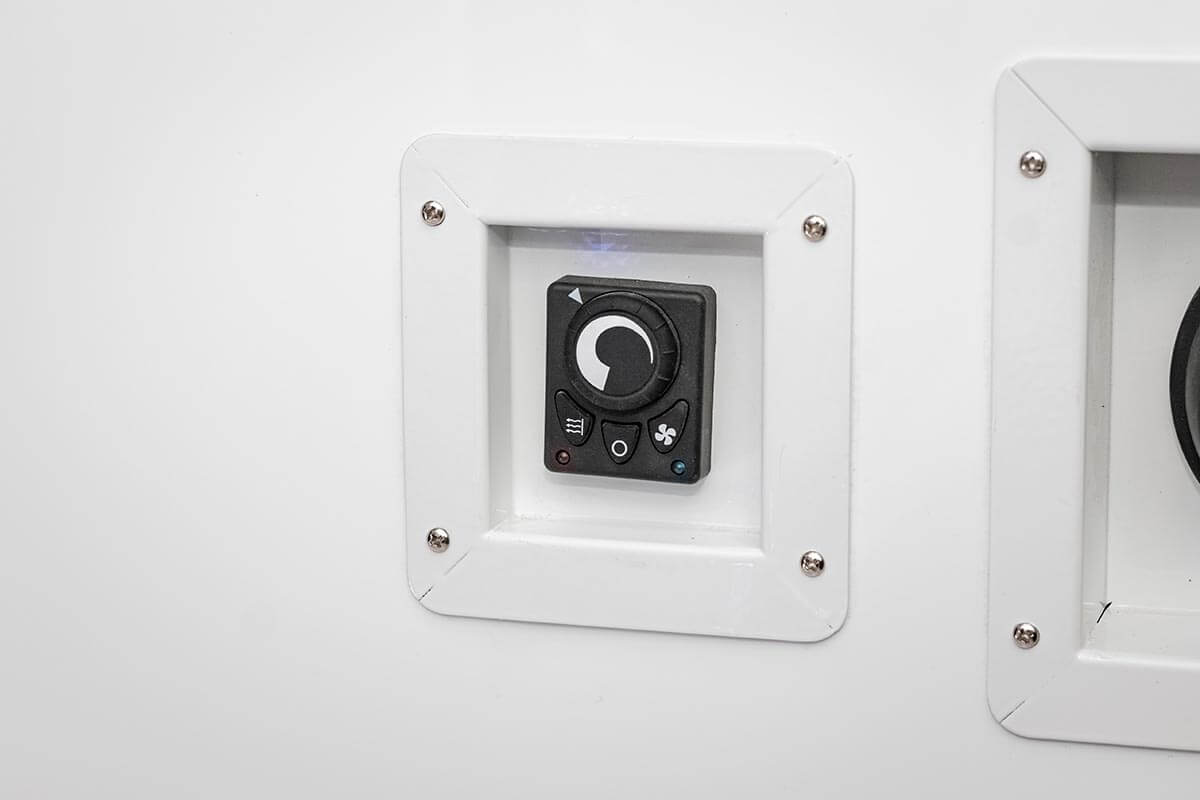

♦ Dometic DFSD 12111 Furnace (propane operated)

ELECTRICAL

♦ 2 x 150W solar panels
♦ 2 x 100Ah Lithium Iron Phosphate batteries

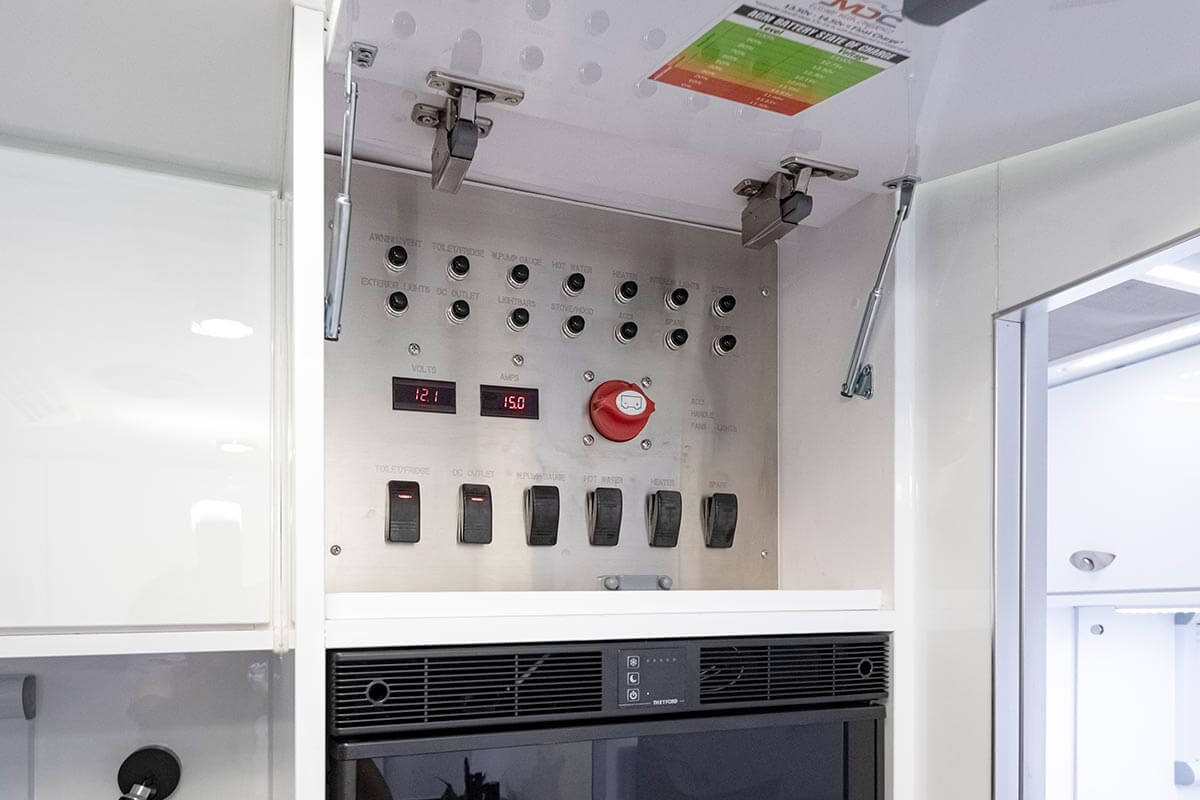

♦ BMPRO Battery Plus35-11-HA Battery Management System with RVVIEW2 battery monitor and BC300 external shunt
♦ AIMS Power 1500W Pure Sine Wave Inverter

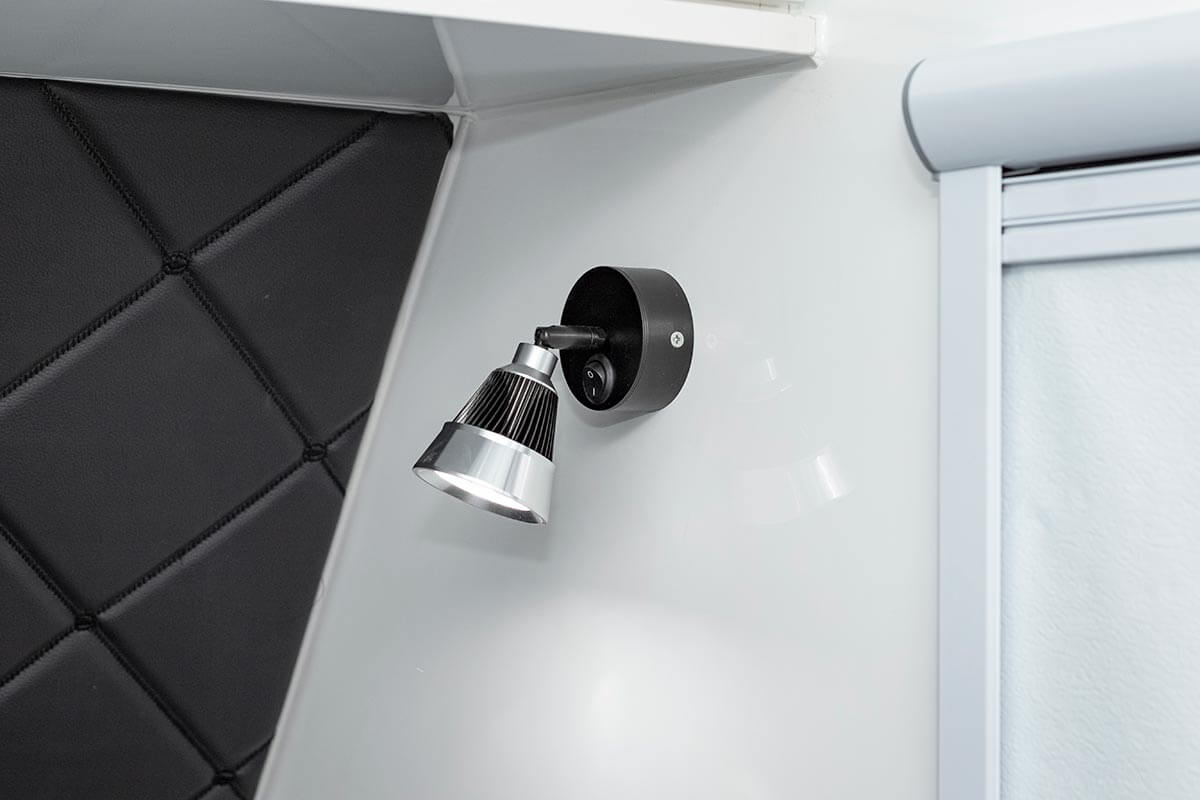

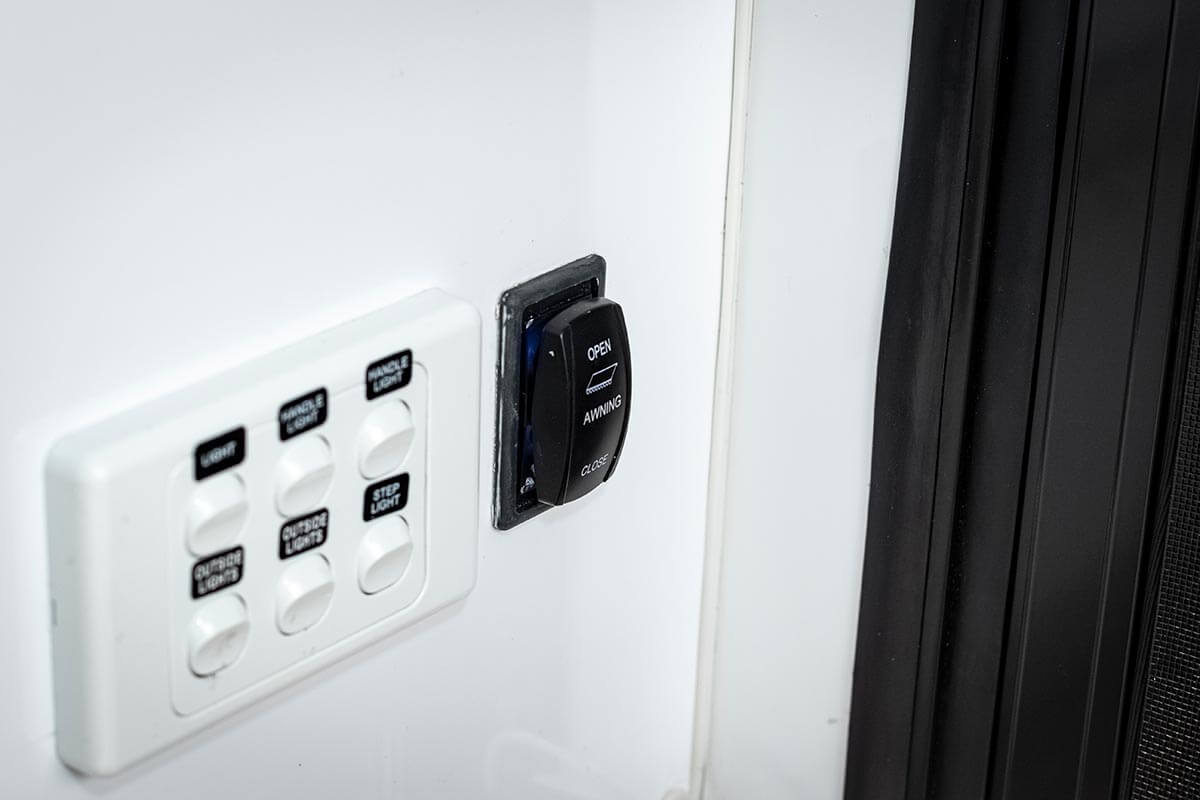

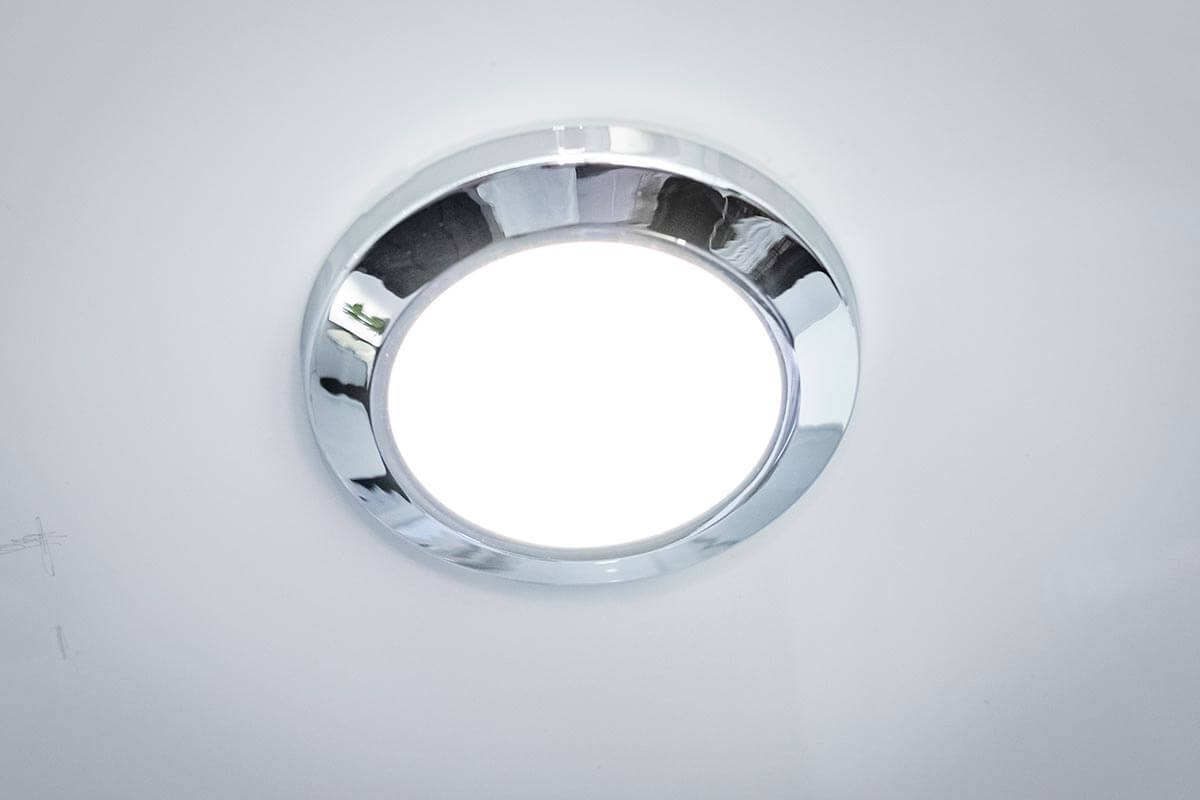

♦ Internal 12V LED lighting throughout with wireless switching

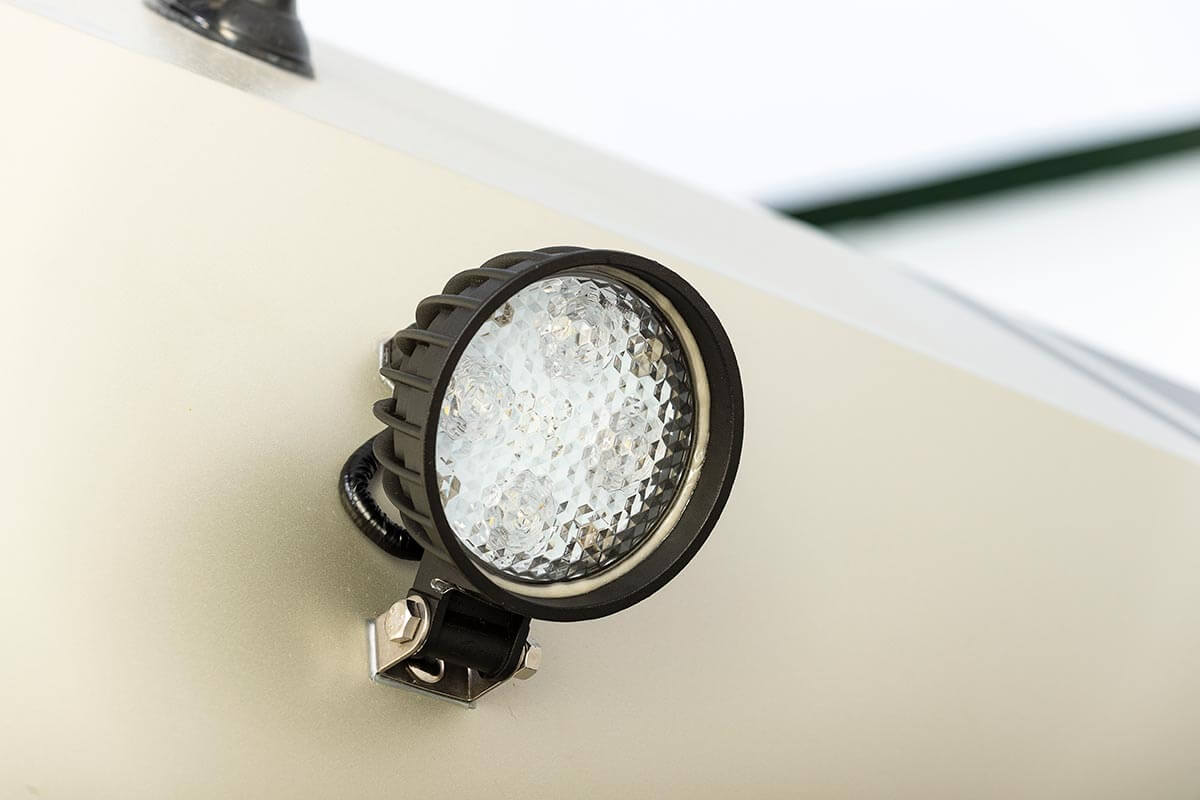

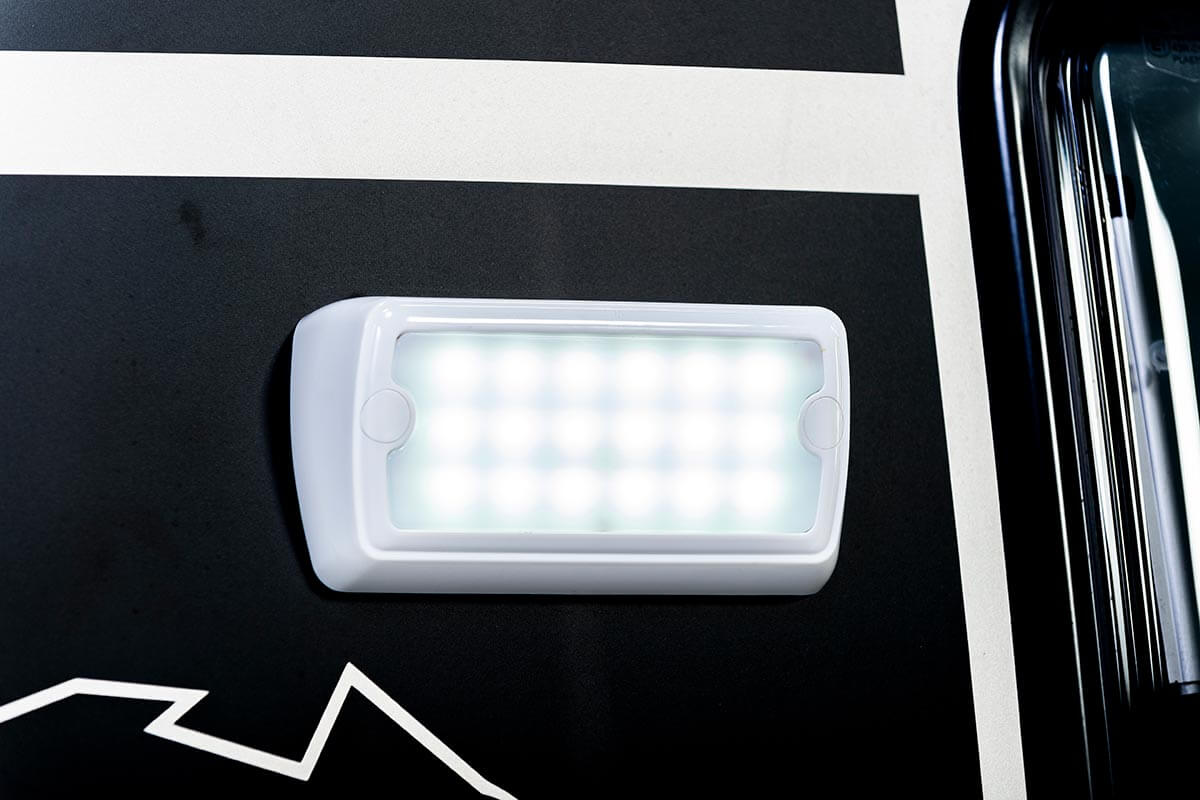

♦ External 12V LED lighting throughout, position markers, indicator & stop/tail lights + awning and offside wall lighting and forward and rear spotlights with blue light up entry door grab handle

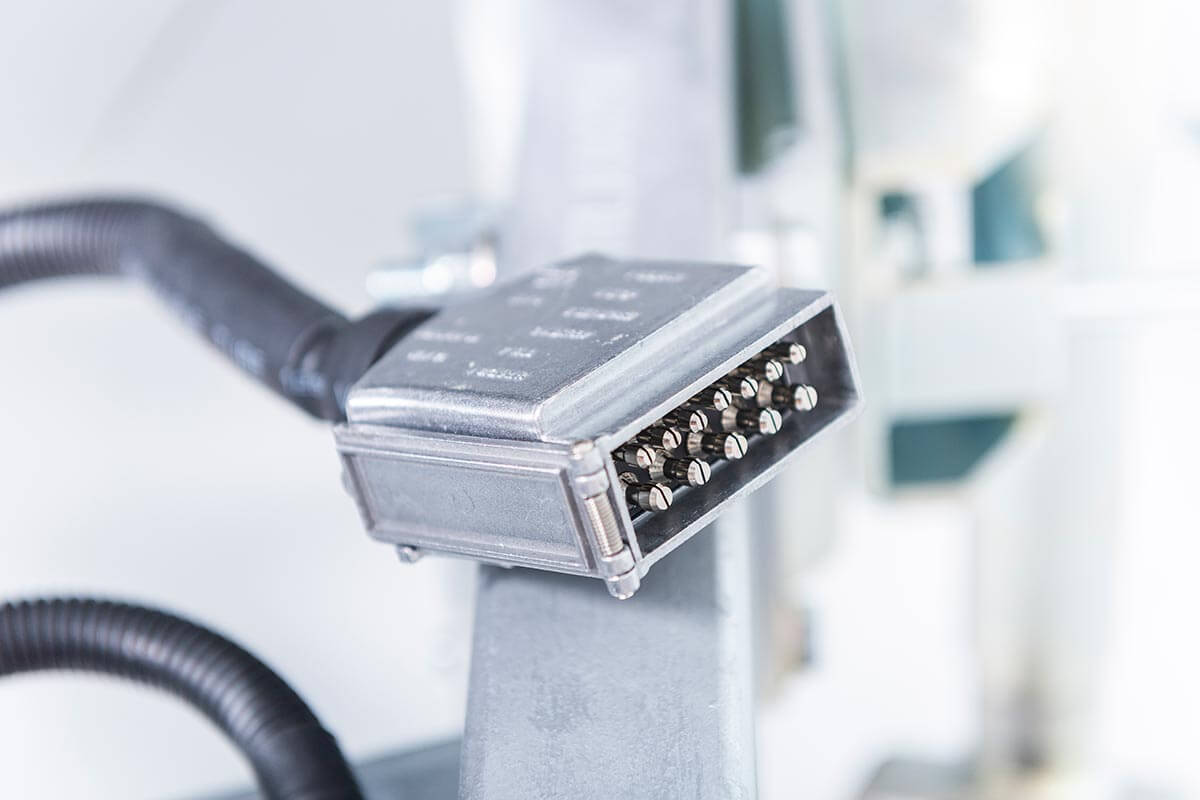

♦ Light Connection Plug – 7-way trailer connector (SAE J2863 type)

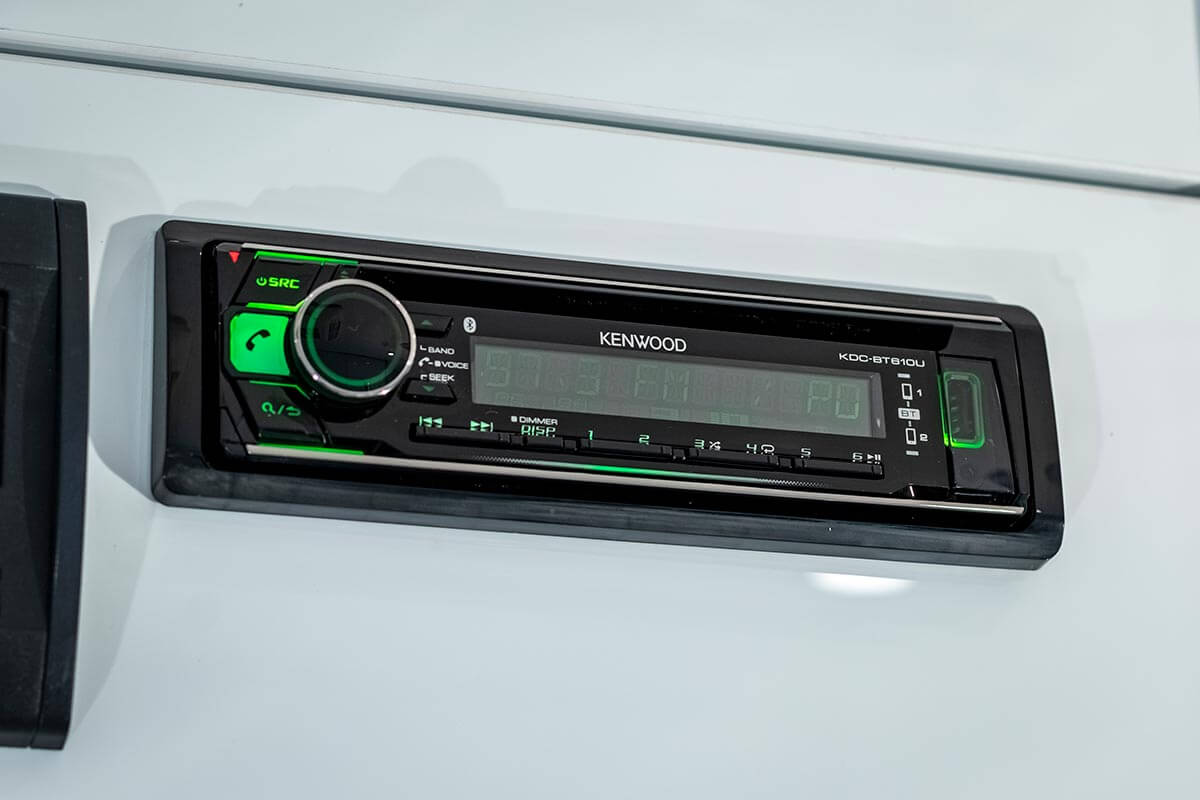

♦ Stereo head unit with internal & external speakers
♦ 19″ LED TV

INTERNAL POWER OUTLETS

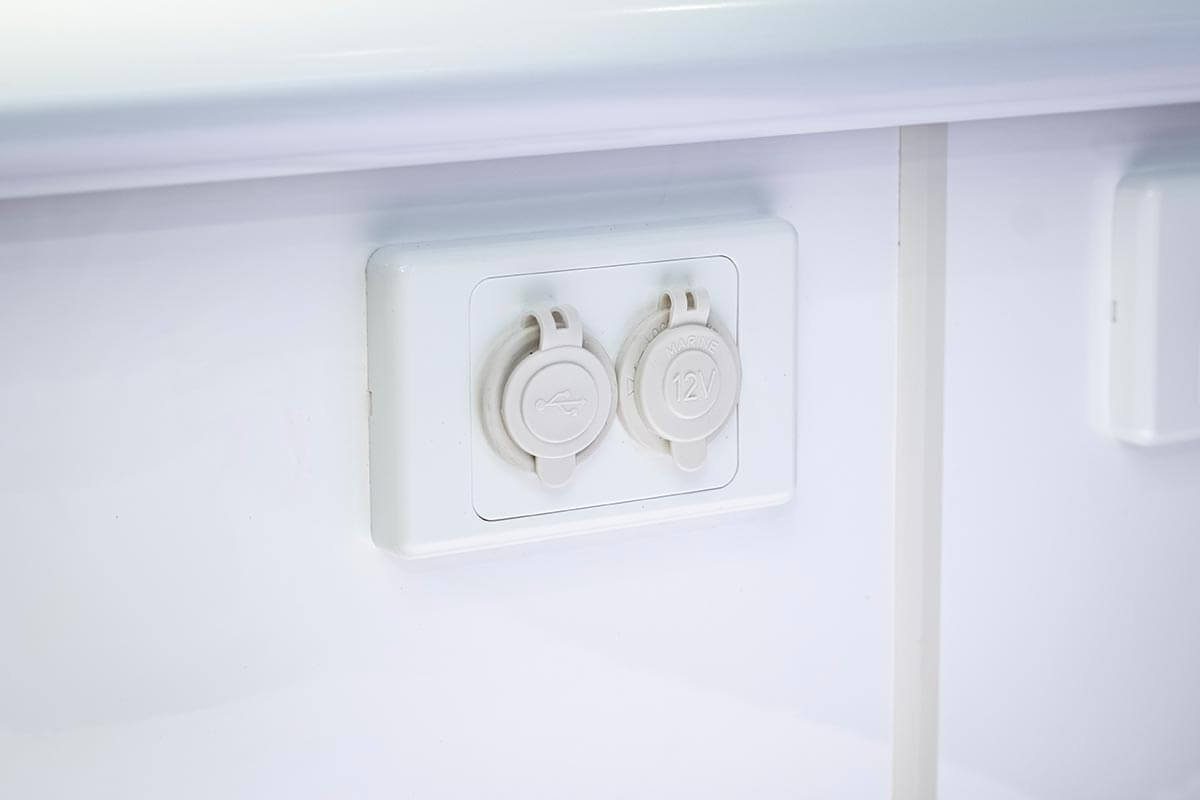

♦ 3 x 12V accessory sockets
♦ 2 x 5V dual USB charging ports (1A & 2A split)

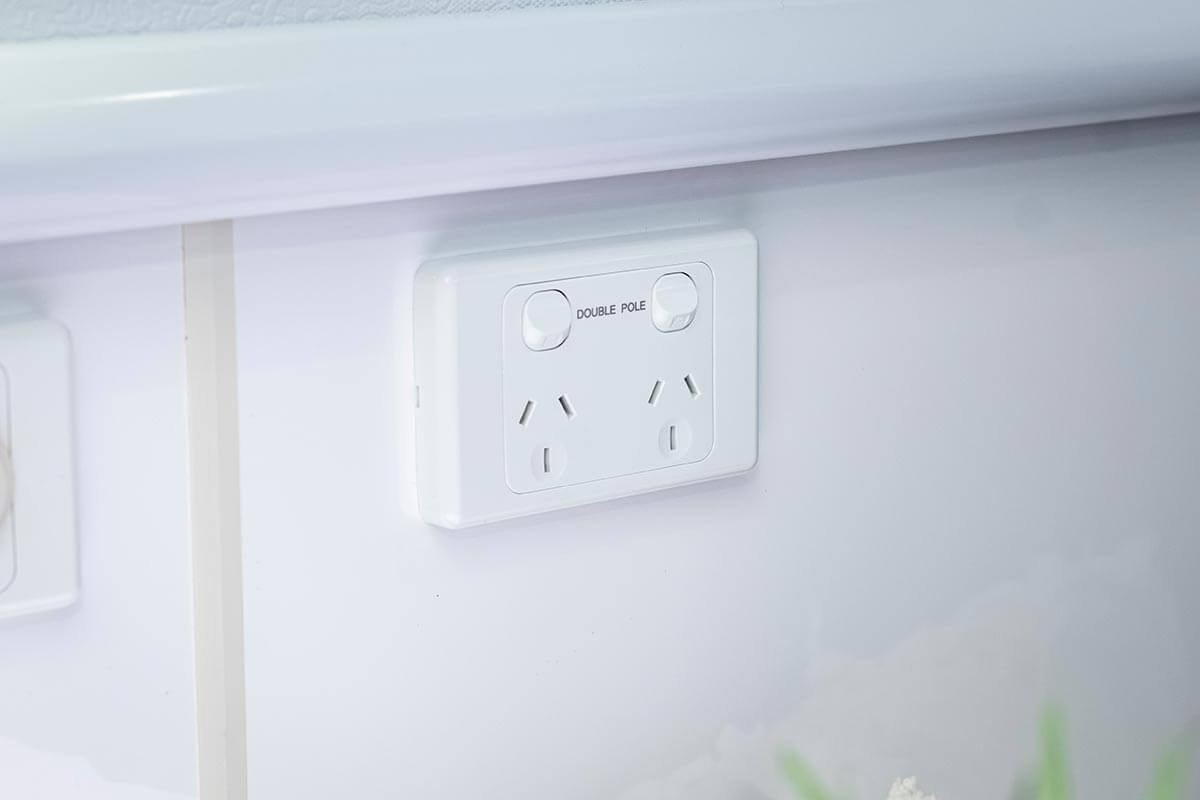

♦ 4 x Double 110V outlets

EXTERNAL POWER OUTLETS

♦ 2 x Anderson plugs
♦ 2 x 12V accessory sockets
