Lightweight And Packed With Features

The all-new XT13 is a great new model from MDC that covers off-road caravanning for a small family of three. With a queen size bed and spacious east/west front bunk, the XT13 is just the van you’re looking for. This great-looking van is lightweight with a tare weight of around 2 tons. Built on the proven MDC chassis, the body is built with a welded aluminum frame and bonded composite panel making it extremely strong. There is no shortage of great features in the XT13 starting with an electric awning as standard, the awning can also be converted into an enclosed annex with the awning wall and floor kit that comes complimentary with the XT13.
300W of Solar
Air Conditioning
Internal Ensuite
External Kitchen
Queen Size Bed
3 Berth
$356 per month*
$54,990^

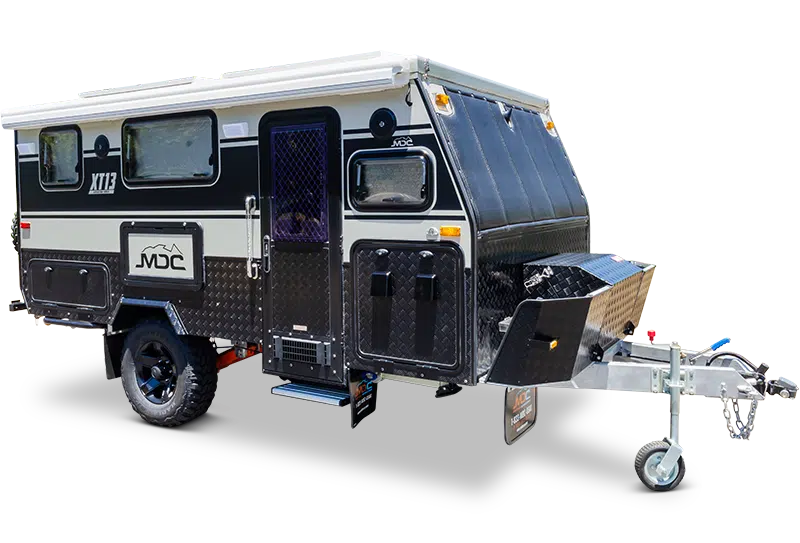

MDC USA XT13 Travel Trailer
Cold Weather Package

Available for MDC Caravans for an additional $1599.00

Includes:
Truma Electric Anti Freeze Kit
Heated Tanks
Insulated water lines

DIMENSIONS & WEIGHT

TONGUE WEIGHT

Approx. 380 lbs

GVWR

6275 lbs

CURB WEIGHT

Approx. 4300 lbs

INTERIOR FEATURES

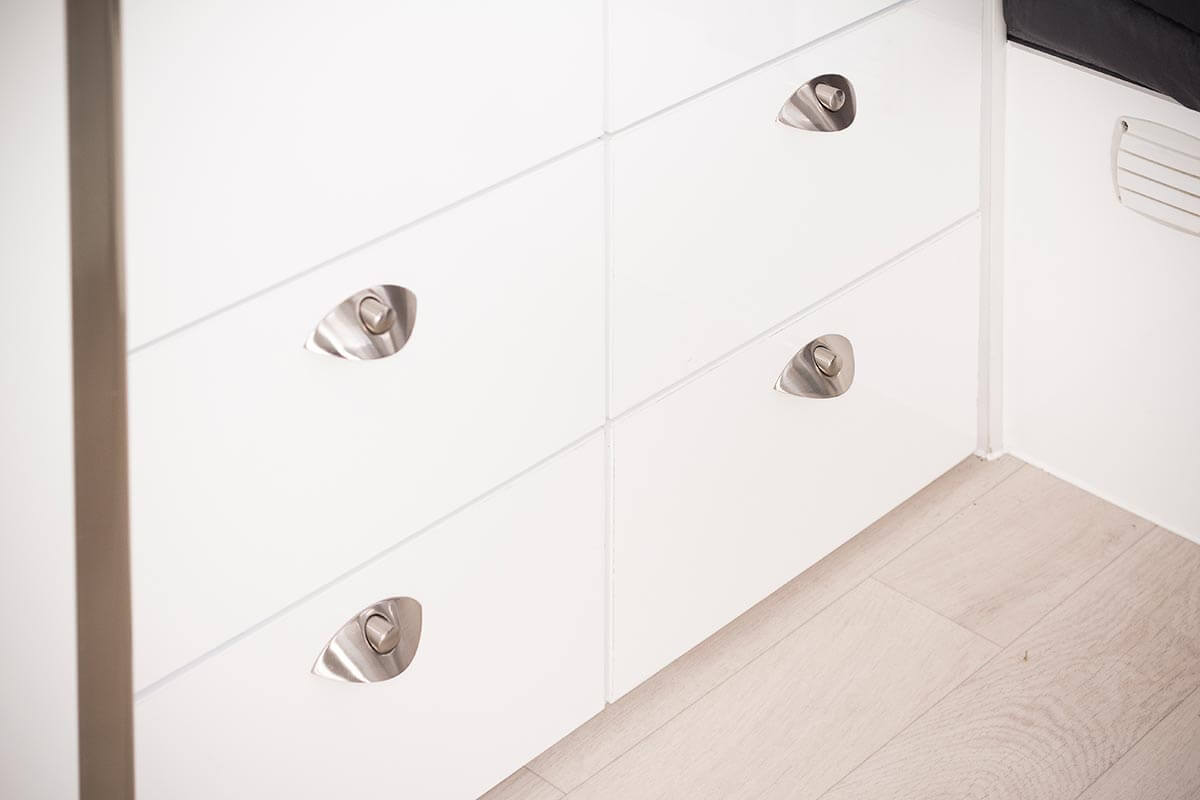

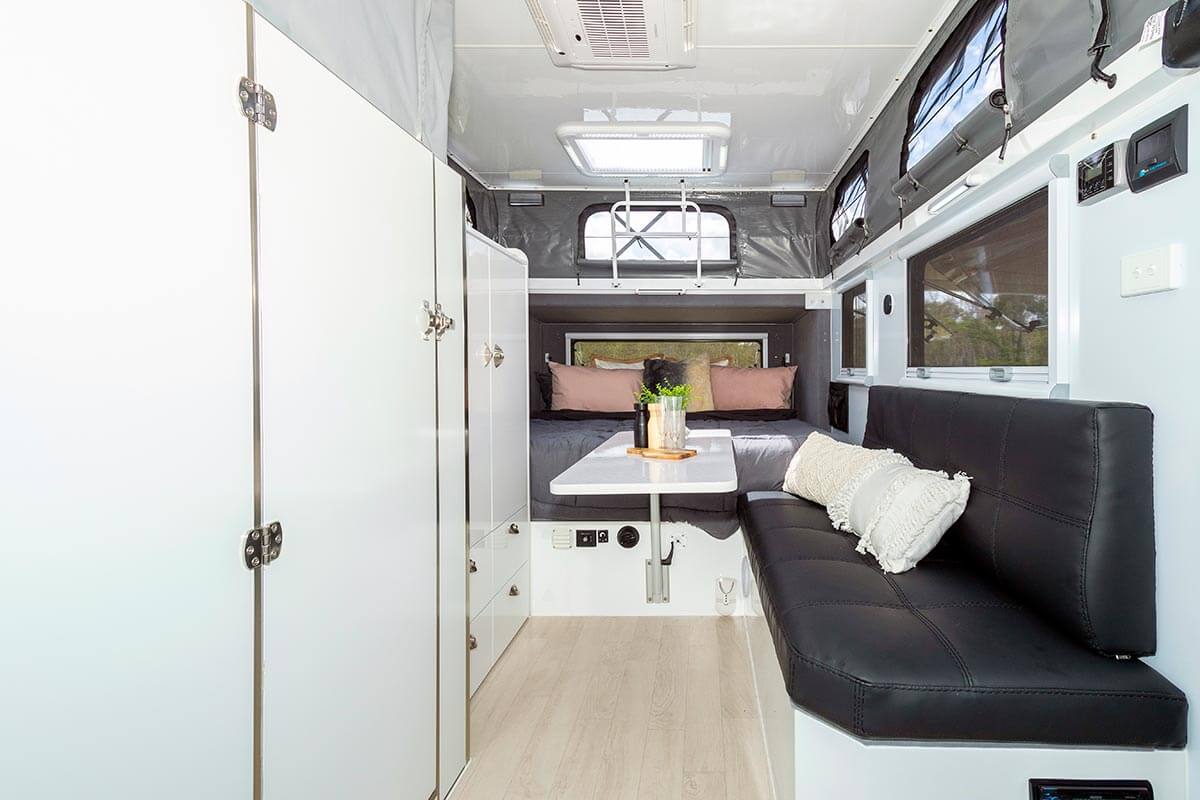

The clever interior layout is backed up by high-quality durable finishes to last you a lifetime. Stylish yet easy to clean, the cabinetry is built strong to endure the test of time and harsh conditions using quality hardware and materials that won’t let you down. OPTIONAL AIR CONDITIONER

EXTERNAL FEATURES

The XT range is wrapped in an array of external features designed to make overlanding more comfortable. A large external fridge slide, gourmet outdoor kitchen with fold down table and electric awning make for comfy outdoor living. Ample front boot and side storage ensure you can take all the necessities for camping comfort while external lighting makes it a night and day-activity.

EXPLORE XT13

Please Note: Above 3D/2D Floorplan is a representative pictorial of floorplan/layout only, please refer to actual product photos for design features and benefits.

SPECIFICATIONS

GENERAL

♦ Sleeps 3
♦ 1x Custom pillow-top Olympic Queen size innerspring mattress

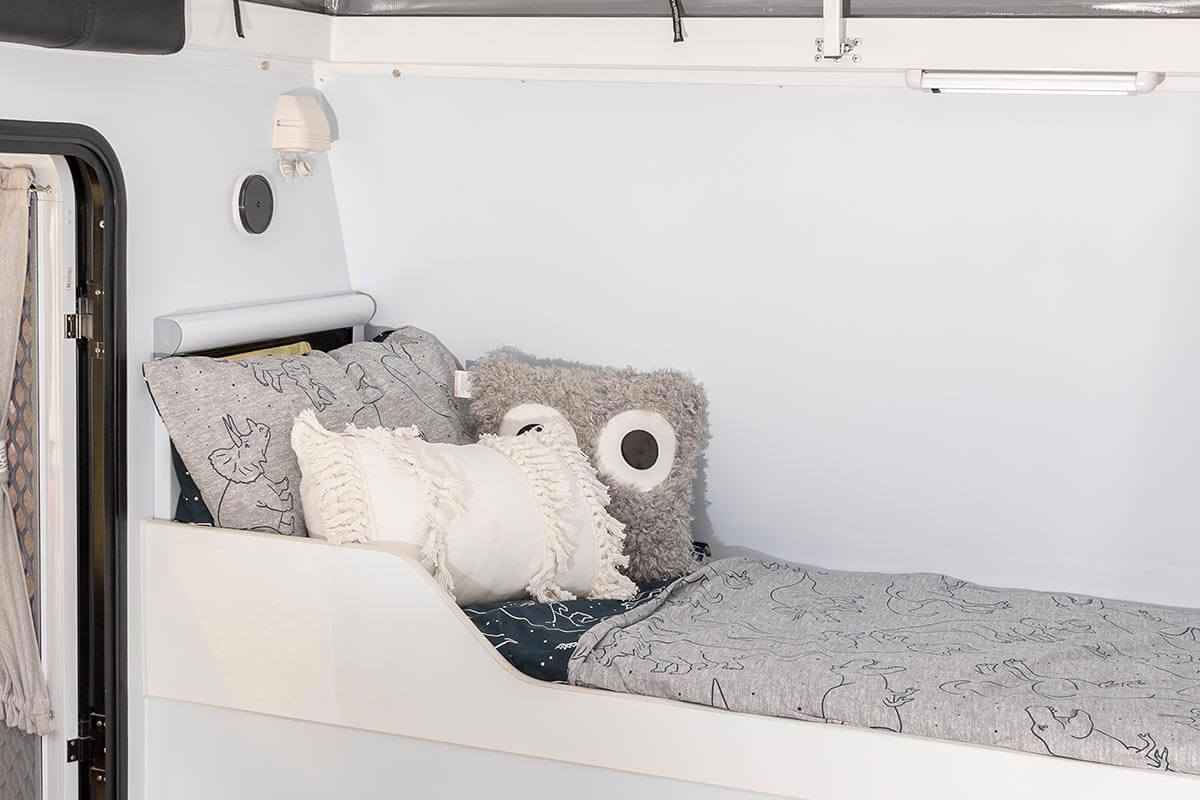

♦ 1x Twin XL high-density foam front bunk
♦ Mattress – 80” L x 67” W x 7” H
♦ Mattress (Bunk) – 80″ L x 28″ W x 3″ H
♦ Combination of welded aluminum 2″ x 1″ Hot Roll Steel Rectangle Tube and 1″ X 1″ square aluminum alloy Body Construction

DIMENSIONS – with Aircon

♦ Open – 21’2″ L x 17’4″ W x 10’1″ H

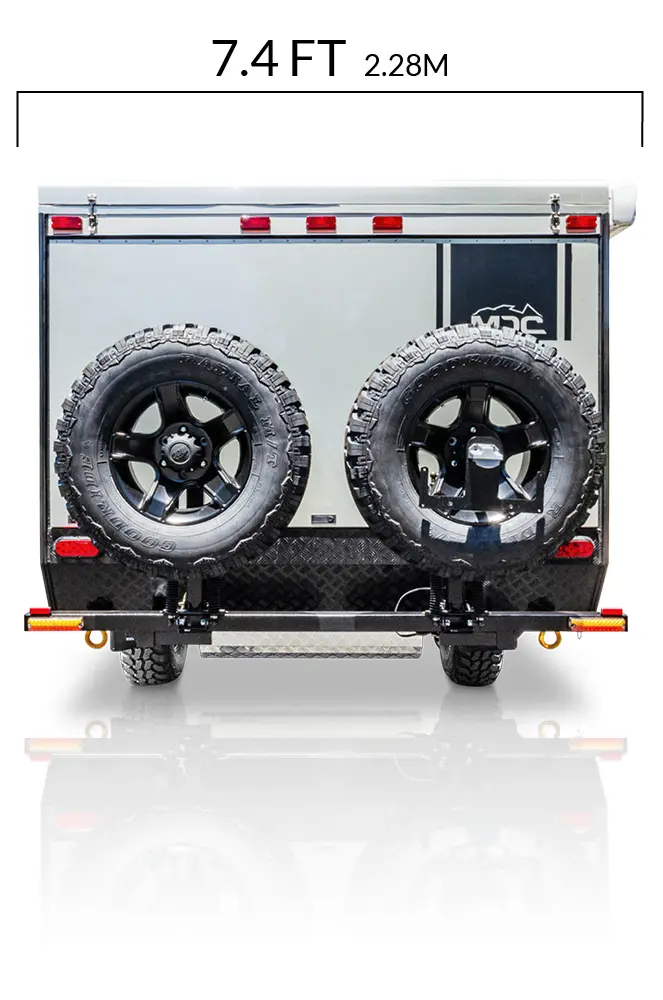

♦ Closed – 19’4″ L x 7’6″W x 8’6″ H

WEIGHTS & RATINGS

♦ Dry weight 4374 lbs
♦ Tongue weight 380 lbs
♦ GVWR 6147 lbs

CHASSIS

♦ 6″ x 2″- Q345 Galvanized Steel Hot Rolled Rectangle Tube Frame
♦ Cruisemaster™ DO35 hitch
♦ 10″ swing-up and lockable Jockey Wheel
♦ 16×7.5 6/139.7 Aluminum alloy wheels fitted with 265/75R16 Goodride MT tires + 2 spares
♦ X-TRACK Independent coil spring suspension with 2x TOUGH TRAX Shock absorbers on each side
♦ 12″ electromagnetic brakes with handbrake and drawbar mounted emergency breakaway system
♦ 4 x heavy-duty lockable and adjustable drop-down stabilizer legs

EXTERIOR

♦ 12′ 12V electric cassette awning
♦ Full annex, enclosed roof, walls, floor, and draft skirt
♦ 2x 20lbs propane cylinder and cylinder holders
♦ 2x 5 gallon jerry can holders
♦ 1x 31 gallon fresh water tank + 1x 21 gallon grey water tank
♦ Water delivery – 12V electric marine diaphragm pump
♦ 4 Seasons Ready Cold Weather Package includes tank heating pads, HWS electric anti-freeze kit, LiFePRO+® integrated heating and insulated water lines

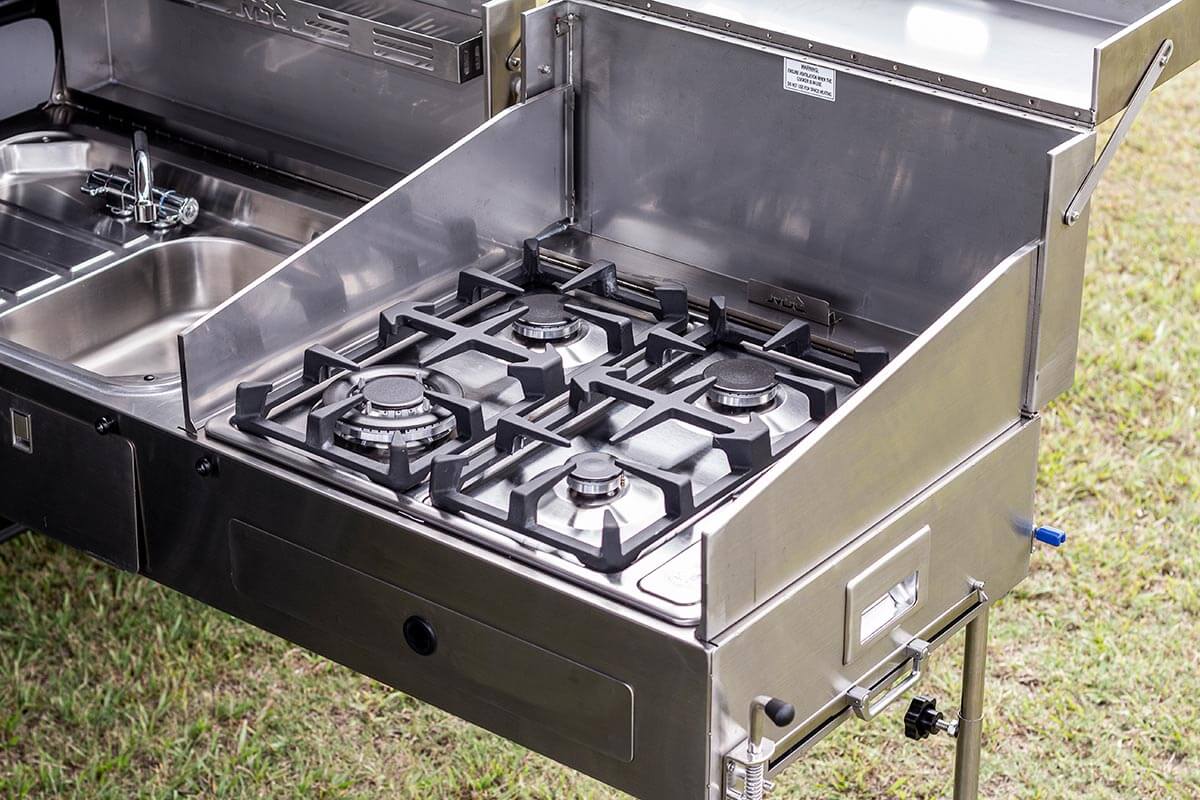

♦ External Slide out stainless Steel body with propane cooktop & washboard sink with plumbed hot & cold water supply
♦ Chequer plate stone guard & propane storage locker with forward-facing and rear-wheel mud flap protection
♦ Fridge Slide – 36″ L x 19¼” W x 19¼” H
♦ Front toolbox included

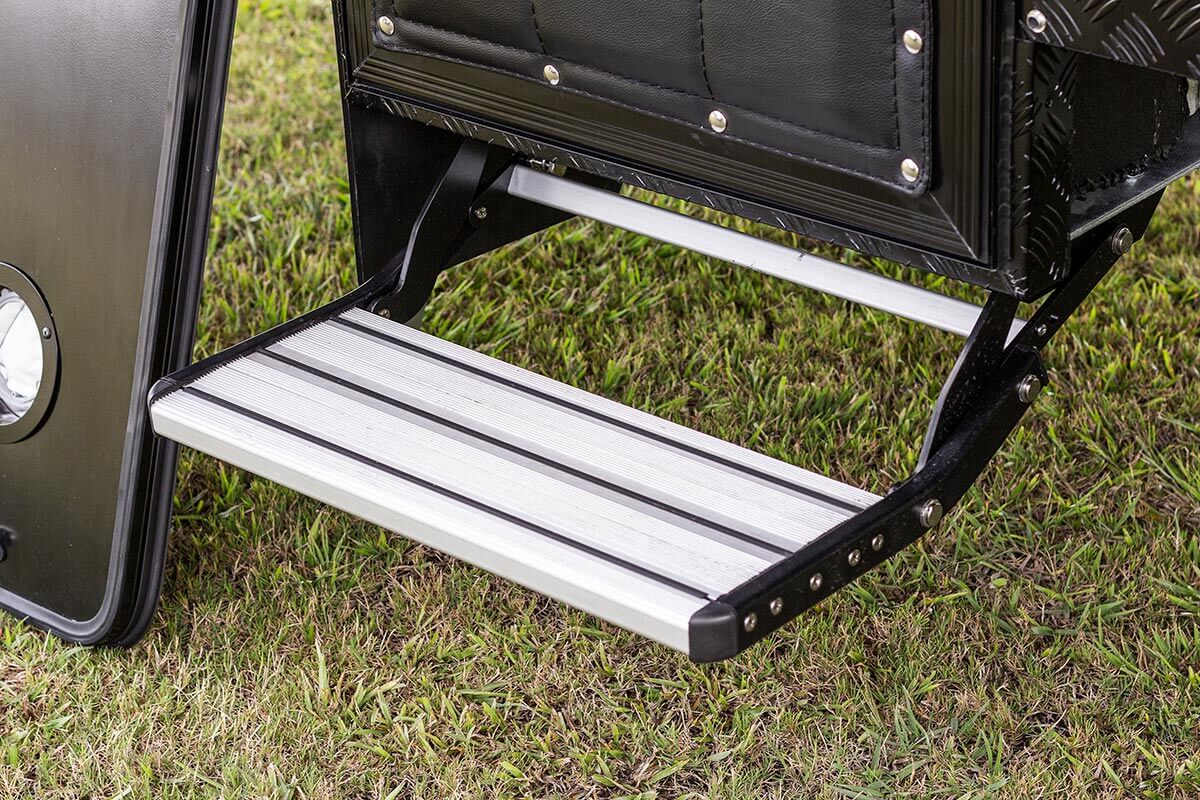

♦ Manually operated pull-down entry step

INTERIOR

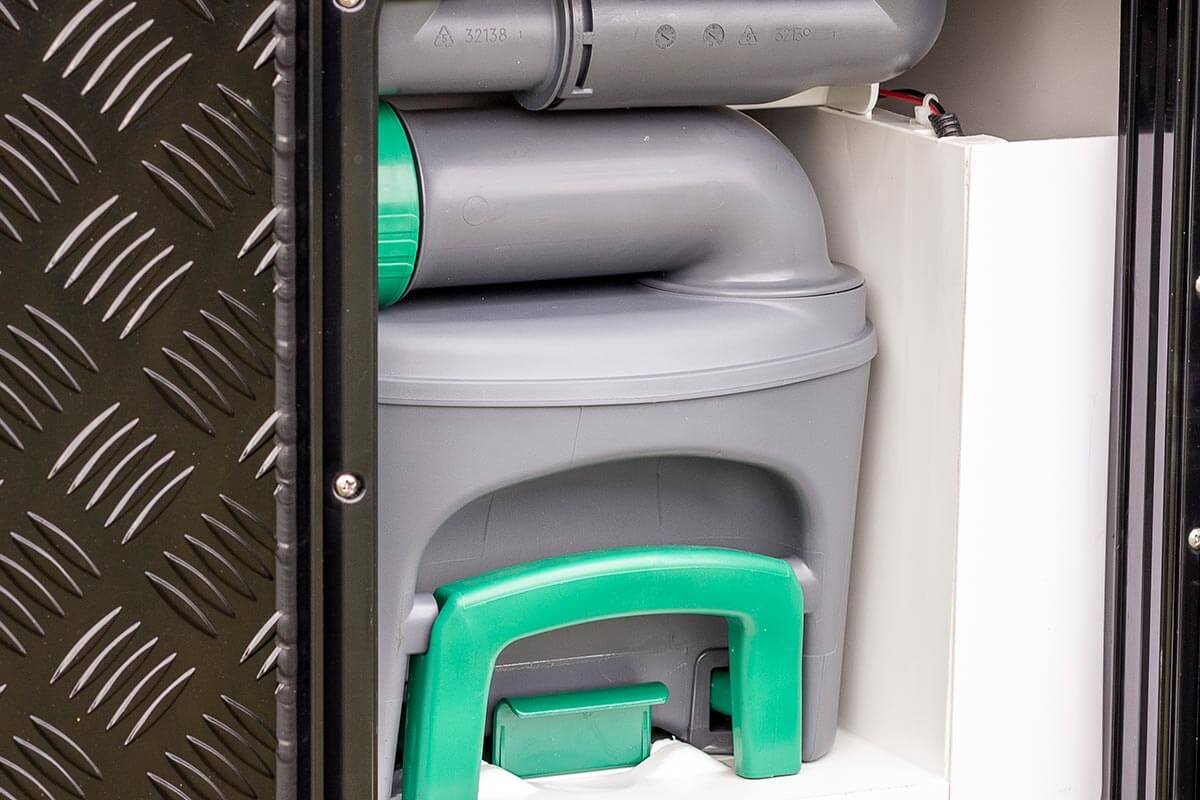

♦ Thetford C400 Cassette toilet
♦ Hot & cold plumbed wet bath with wash sink

MAJOR APPLIANCES

♦ Dometic Penguin II High-Efficiency Low Profile Rooftop Air Conditioner
♦ Truma Aquago Comfort Plus instant hot water system (propane-operated)
♦ Dometic DFSD 12111 Furnace (propane operated)

ELECTRICAL

♦ 3 x 100W solar panels
♦ 2 x 100Ah Lithium Iron Phosphate batteries
♦ BMPRO Battery Plus35-11-HA Battery Management System with RVVIEW2 battery monitor and BC300 external shunt
♦ AIMS Power 1500W Pure Sine Wave Inverter
♦ Internal 12V LED lighting throughout with wireless switching
♦ External 12V LED lighting throughout, position markers, indicator & stop/tail lights + awning and offside wall lighting with blue light up entry door grab handle
♦ Light Connection Plug – 7-way trailer connector (SAE J2863 type)
♦ Stereo head unit with internal & external speakers
♦ 19″ LED TV

INTERNAL POWER OUTLETS

♦ 2 x 12V accessory sockets
♦ 1 x 5V dual USB charging port (1A & 2A split)
♦ 2 x Double 110V outlets

EXTERNAL POWER OUTLETS

♦ 2 x Anderson plugs
♦ 1 x 12V accessory sockets

FEATURES & INCLUSIONS
