TONGUE WEIGHT
Approx. 330 lbs
GVWR
5511 lbs
CURB WEIGHT
Approx. 3866 lbs
GENERAL
♦ Dual Fold Camper
♦ Sleeps 6
♦ 1x Queen + full-size high-density foam mattress set and convertible lounge
♦ Mattress – 76¾” L x 60½” W x 5½” H
♦ Welded aluminum alloy frame with bonded composite panels Body Construction
DIMENSIONS
♦ Size (Open) – 22’11” L x 7’10” W x 10’9” H
♦ Size (Closed) – 19’3” L x 7’10” W x 5’7” H
♦ Tent height open – 10’6″
♦ Annex size – 16′ x 7’11”
♦ Ensuite tent – 3’11” x 3’11”
WEIGHTS & RATINGS
♦ Dry weight 3940 lbs
♦ Tongue weight 330 lbs
♦ GVRW 5291 lbs

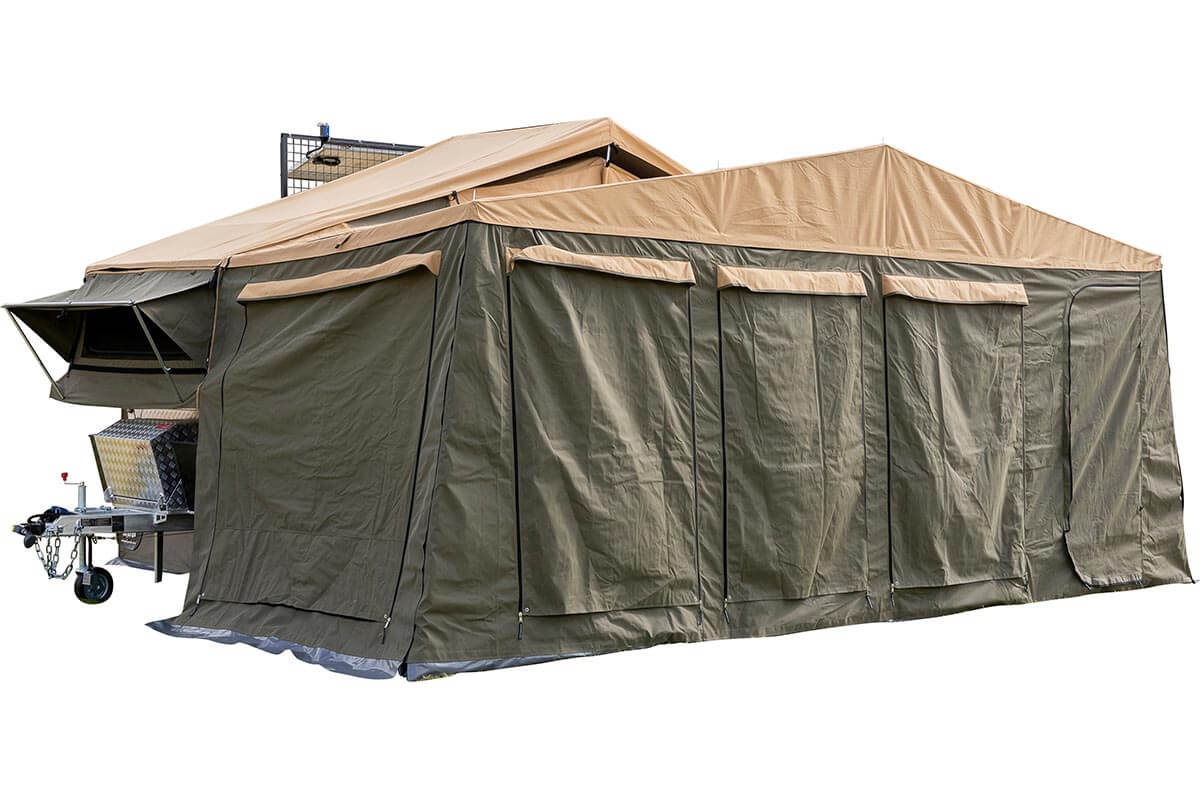

TENT & ANNEX
♦ MDC integrated trailer tent with genuine SBS zippers, double stitching and reinforced, gusseted windows, and protective seam tape on roof and awning + removable tropical roof. Offers up to 237sqft of living space between the main tent and fully enclosed annex
♦ 16oz Sherpa Closeweave canvas
♦ Khaki walls and Sand roof, awning, and tropical roof
♦ Windows – Tight weave PVC-coated fiberglass mesh
♦ Velcro & zip-on removable canvas awning across the full length of the main tent
♦ Full annex, enclosed roof, walls, floor, and draft skirt
♦ Galvanized steel tent frame and aluminum annex poles, dia19/22/25mm
CHASSIS
♦ 5″ x 2″ – Q345 Galvanized Steel Hot Rolled Rectangle Tube Frame
♦ Cruisemaster™ DO35 hitch
♦ 10” swing-up and lockable Jockey Wheel
♦ 16X7.5 6/139.7 aluminum alloy wheels fitted with 265/75 R16 Goodride radial mud terrain + 2x spares
♦ X-TRACK Independent coil spring suspension with 2x TOUGH TRAX Shock absorbers on each side
♦ 12″ electromagnetic brakes with handbrake
♦ 4 x heavy-duty lockable and adjustable drop-down stabilizer legs
EXTERIOR
♦ Removable, side-mounted storage rack
♦ 2x 20lbs propane cylinder and cylinder holder
♦ 1x 5 gallon jerry can holders
♦ 1x 21 gallon + 1x 31 gallon fresh water tanks
♦ Water Delivery – 12V electric marine diaphragm pump
♦ Slideout Stainless Steel body with gas cooktop & washboard sink with plumbed hot & cold water supply
♦ Mesh screen stone guard with forward-facing mud flap protection
♦ Fridge Slide (passenger side) – 31″ L x 20″ W x 22½” H
♦ Fridge Slide (driver side) – 36″ L x 20″ W x 22½” H
♦ 5-gallon portable toilet
MAJOR APPLIANCES
♦ Truma Aquago Comfort Plus instant hot water system (propane-operated)
♦ Dometic DFSD 12111 Furnace (propane operated)
ELECTRICAL

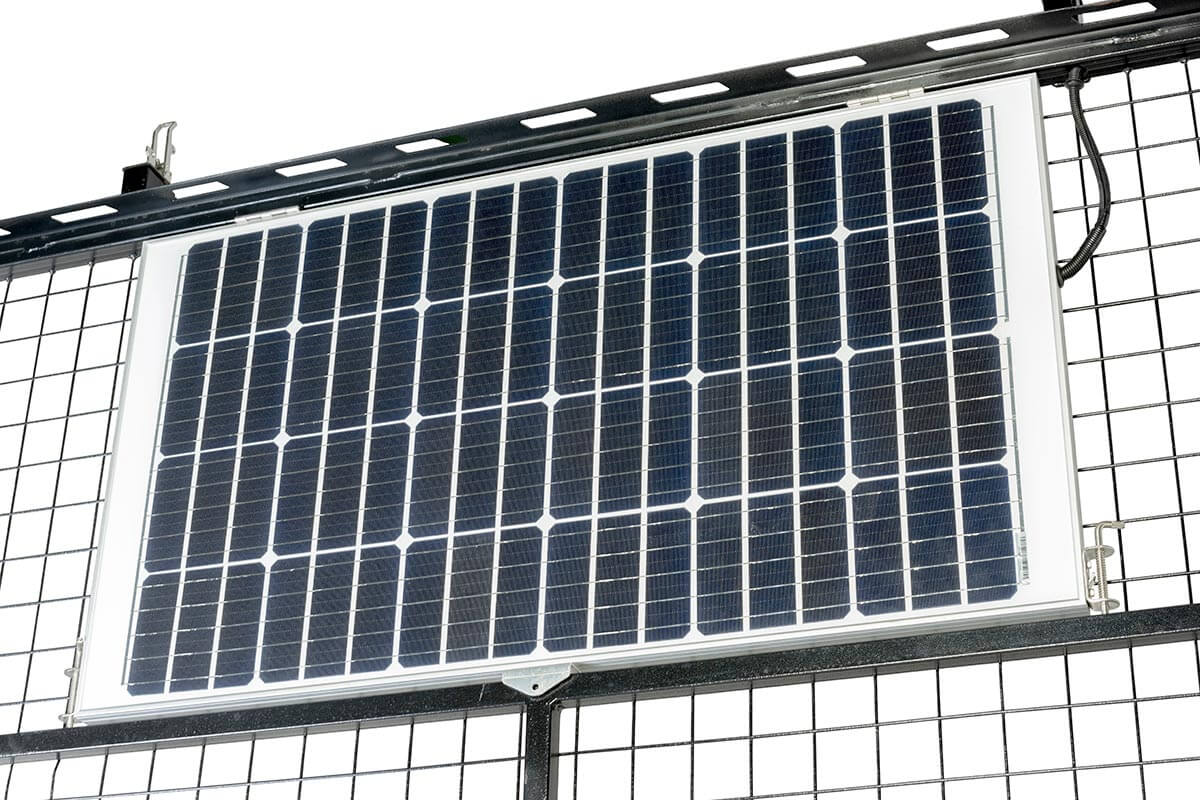

♦ 1x 135W fixed solar panel
♦ 2 x 100Ah Lithium Iron Phosphate batteries
♦ BMPRO Battery Plus35-11-HA Battery Management System with RVVIEW2 battery monitor and BC300 external shunt
♦ AIMS Power 1500W Pure Sine Wave Inverter
♦ Internal 3x portable 12V LED light strips
♦ External 12V LED position markers, indicator & stop/tail lights + internal toolbox lighting
♦ Light Connection Plug – 7-way trailer connector (SAE J2863 type)
♦ Stereo head unit with internal & external speakers
INTERNAL POWER OUTLETS
♦ 7 x 12V accessory sockets
♦ 3 x 5V dual USB charging ports (1A & 2A split)
♦ 2 x Double 110V outlet
EXTERNAL POWER OUTLETS
♦ 4 x Anderson plugs
♦ 4 x 12V accessory sockets
