XL15-4E MKII

15’ Off Road Hybrid Ticking all the Boxes

The ultimate in comfort and quality of finish in an off road travel trailer for 4 is here with the XL15-4E MKII. Absolutely packed with standard features you’d expect in travel trailers twice the price, this is value for money you can’t pass up. Aluminum frame and composite body construction means it’s tough, air conditioning, furnace, fans and generous size bed and bunks means it’s comfortable. The toilet and shower ensuite is convenient and adds privacy as does the lightweight annex that encloses the outside cooking area. Indoor cooking is taken care of with a 2 burner gas hob with sink and the pantry can be access from inside and outside for cooking convenience. With many more features, the XL15-4E MKII is a must see.

$58,880^ MSRP

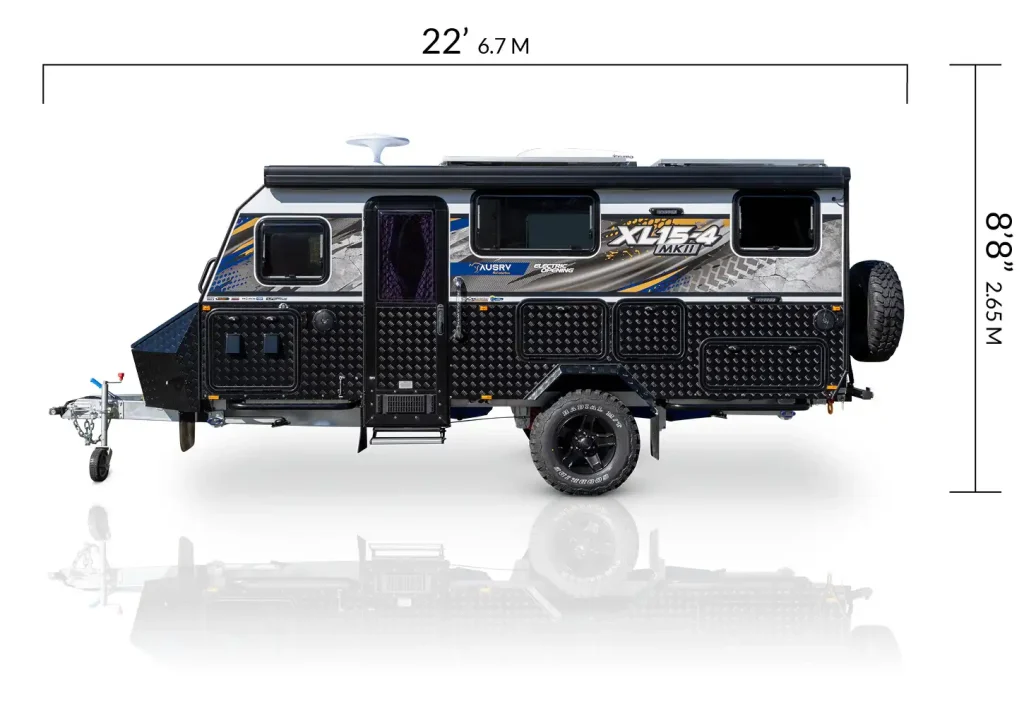

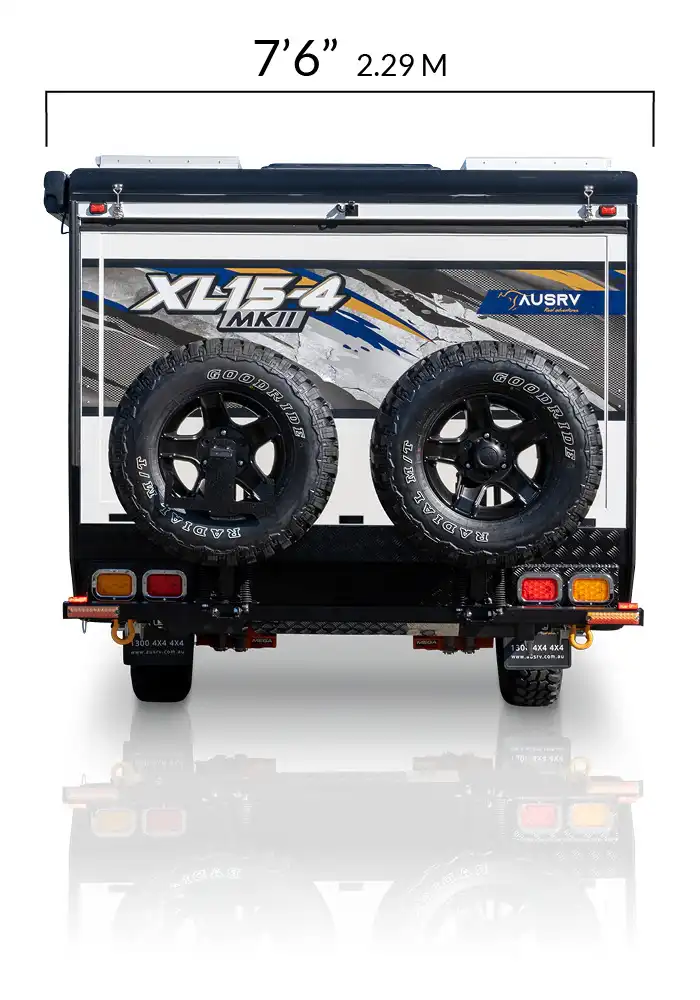

DIMENSIONS & WEIGHT

TONGUE WEIGHT

401 lbs

GVWR

6147 lbs

CURB WEIGHT

5032 lbs

INTERIOR FEATURES

The great-looking interior is exceedingly well thought out in design and execution with ample storage space for even the longest of journeys. A place for everything and everything in its place, you’ll love how user-friendly your new off-road hybrid is. The internal shower and toilet ensuite are the peak of privacy and convenience. Internal cooking, air conditioning, and stylish modern finishes will make this one of the most sought-after hybrids of all time.

EXTERNAL FEATURES

The XL15-4E MKII is literally wrapped in the most modern and durable features ever. Roof-mounted solar charging takes care of daily power replenishment making long-term off-grid living all that much easier. Alloy frame and composite panel construction are cutting edge strength and durability and when coupled with a chassis that’s engineered to a factor of 5 with matching off-road trailing arm suspension, puts this hybrid among some of the best-built hybrids many times the price.

EXPLORE XL15-4E MKII

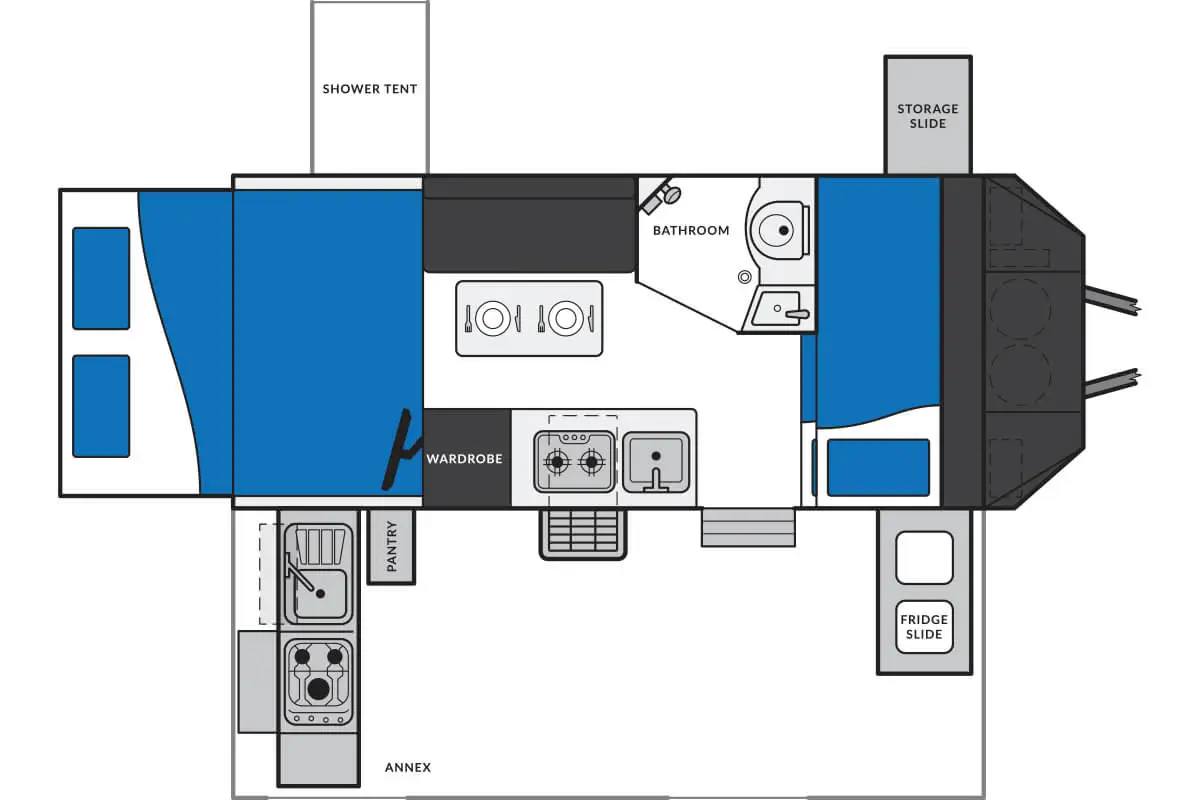

Please Note: Above 3D/2D Floorplan is a representative pictorial of floorplan/layout only, please refer to actual product photos for design features and benefits.

INTERIOR EXTERIOR OFFROAD

Please Note: The above interior, exterior and offroad imagery of the XL15-4E MKII are showing the Australian model.

SPECIFICATIONS

GENERAL

♦ Sleeps 4
♦ 1 x olympic queen size innerspring mattress
♦ 2 x twin XL foam bunks and a convertible dinette
♦ Mattress – 79” L x 69” W x 10” H
♦ Top Bunk – 80¾” L x 27½” W x 3¼” H
♦ Bottom Bunk – 80¾” L x 39½” (narrowest point) W x 3¼” H
♦ Combination of welded aluminum 2” x 1” and 3” x 1” hot rolled rectangle tube and 1” x 1” square aluminium alloy body construction

DIMENSIONS

♦ Open – 23’12” L x 18′ W x 10’1″ H
♦ Closed – 22′ L x 7’6″ W x 8’8″ H

WEIGHTS & RATINGS

♦ Dry weight 5032 lbs
♦ Tongue weight 401 lbs
♦ GVWR 6147 lbs

CHASSIS

♦ 6″ x 2″ – Q345 galvanized steel hot rolled rectangle tube
♦ Cruisemaster™ DO35 hitch
♦ ARK XO750 Jockey Wheel
♦ 16 x 7.5 6/139.7 Aluminum alloy wheels fitted with 265/75R16 Goodride MT tires & 2 x spare wheels
♦ X-TRACK independent coil spring suspension with 2 x TOUGH TRAX shock absorbers on each side
♦ 12″ electromagnetic brakes with handbrake and drawbar mounted emergency breakaway system
♦ 4 x heavy duty lockable and adjustable drop down stabilizer legs

EXTERIOR

♦ 13.8′ 12V electric cassette awning
♦ Full annex, enclosed roof, walls, floor and draft skirt
♦ 2 x 20lbs propane cylinder and cylinder holders
♦ 2 x 5 gallon jerry can holders
♦ 2 x 31 gallon fresh water tanks + 1 x 21 gallon grey water tank
♦ Water delivery – 12V electric marine diaphragm pump
♦ 4 Seasons Ready Cold Weather Package includes tank heating pads, HWS electric anti-freeze kit, LiFePRO+^® integrated heating and insulated water lines
♦ External Slide out stainless steel body with propane cooktop & washboard sink with plumbed hot & cold water supply
♦ Chequer plate stone guard & propane storage locker with forward-facing mud flap protection
♦ Fridge Slide – 39½” L x 21½” H x 19¼” H
♦ Integrated front toolbox
♦ Manually operated pull-down entry step

INTERIOR

♦ Internal laminated benchtop with glass lid plumbed sink and propane cooktop
♦ Thetford C400 cassette toilet
♦ Hot & cold plumbed wet bath

MAJOR APPLIANCES

♦ Dometic Penguin II High Efficiency Low Profile Rooftop Air Conditioner
♦ Truma Aquago Comfort Plus instant hot water system (propane-operated)
♦ Dometic DFSD 12111 Furnace (propane operated)

SAFETY FEATURES

♦ Trail-Assure™ BG-5000 – electronic stability control with asymmetric braking (offroad ready)
♦ 2.4GHz digital wireless rear view camera + 7″ portable monitor
♦ MDC LOK – coupling lock

ELECTRICAL

♦ 4 x 175W Solar Panels (700W total)
♦ LiFePRO+^® 12V 200Ah Lithium Iron Phosphate battery
♦ BMPRO Battery Plus35-11-HA Battery Management System with RVVIEW2 battery monitor and BC300 external shunt
♦ AIMS Power 2000W Pure Sine Wave Inverter
♦ Internal 12V LED lighting throughout with wireless switching
♦ External 12V LED lighting throughout, awning and offside white and yellow (bug light) wall lighting with blue light up entry door grab handle, position markers, indicator & stop/tail lights
♦ Light Connection Plug – 7-way trailer connector (SAE J2863 type) + 1 x 50A Anderson plug
♦ Stereo head unit with internal & external speakers
♦ HD LED TV with 12V compatibility, USB and full motion TV bracket

INTERNAL POWER OUTLETS

♦ 6 x 12V accessory sockets
♦ 5 x 5V dual USB charging ports (1A & 2A split)
♦ 1 x F-type TV outlet
♦ 4 x 110V double pole outlets

EXTERNAL POWER OUTLETS

♦ 1 x Anderson plugs
♦ 1 x 12V accessory socket
♦ 1 x F-type TV outlet
♦ 1 x 110V double pole outlets
